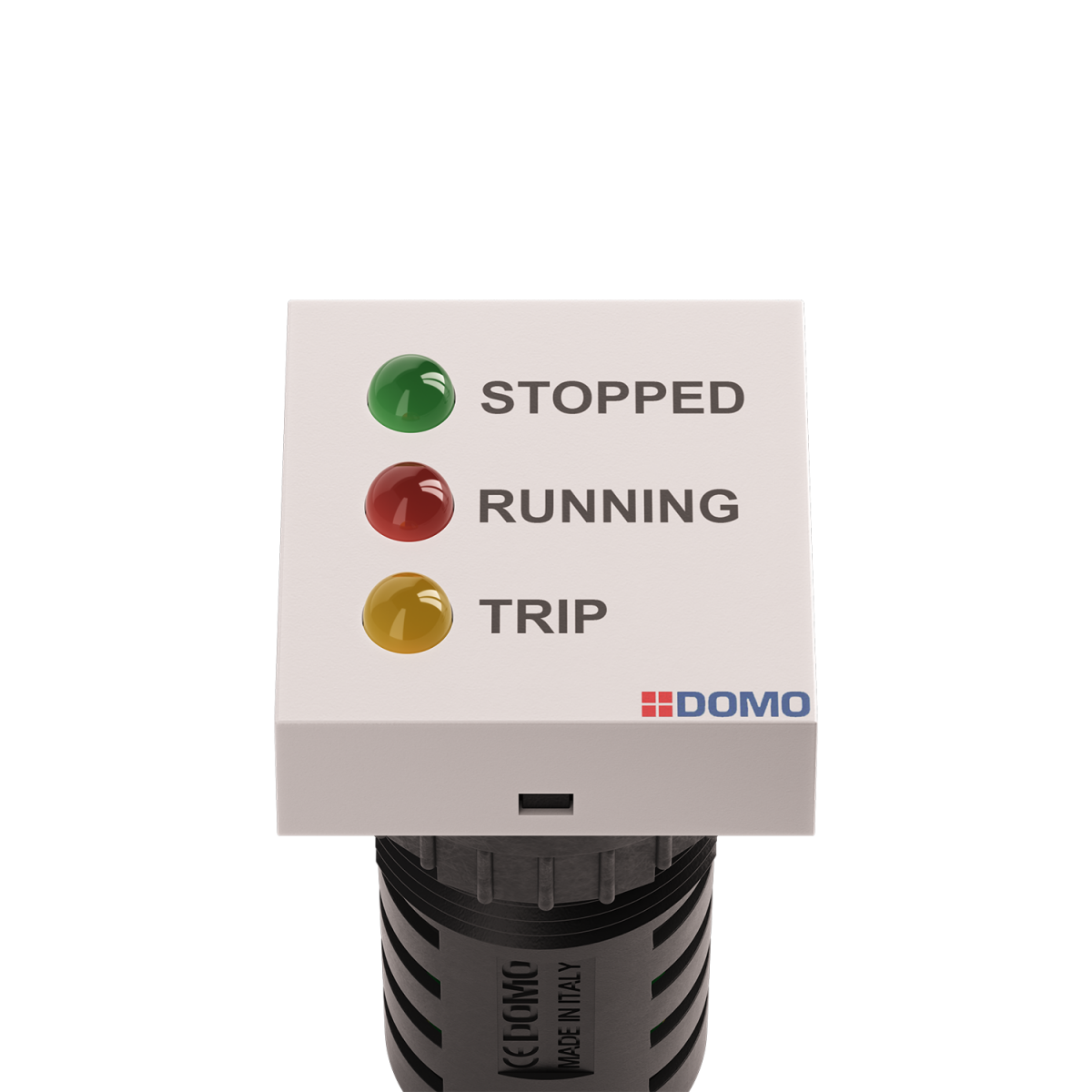

ML REGULAR

MultiLED indicator (22/30)

ML regular

LEDs

Up to 4 colours
on the same
indicator.

  •  ML regular

    IP40 1 LED

    ML regular
  •  ML regular

    IP40 2 LEDs

    ML regular
  •  ML regular

    IP40 3 LEDs

    ML regular
  •  ML regular

    IP40 4 LEDs

    ML regular
  •  ML regular

    IP65 2 LEDs

    ML regular
  •  ML regular

    IP65 3 LEDs

    ML regular

Power supply voltage

Choose the type of
power supply
that's right for you.*

*And if it's not in the catalog,
try to ask for it.

  • 24 AC/DC
  • 48 AC/DC
  • 130 AC/DC
  • 230 AC/DC
  • Or customizable
    upon request.

Read more

Connection types

How do you prefer to connect it?

  • ML regular
    ML regular

    Faston terminals

    ML regular
  • ML regular
    ML regular

    Screw connection with tension sleeve on pluggable terminal blocks

    ML regular
  • ML regular
    ML regular

    Push-in spring connection on pluggable terminal blocks

    ML regular

Read more

Extra features

Enhance your
indicator
with the options
you prefer.

  • Tropicalization
  • Flying leads
  • Tropicalization

    Tropicalization

    Enjoy a longer durability: a protective layer covers the whole circuit preventing the potential damages that may occour in dusty, saline, humid and oxidizing environments.

  • Flying leads

    Flying leads

    Don’t waste your time with cabling: we can cable wires as long and thick as you need and mount them on the connection terminal you choose.

Specific features

There's a lot more to know.

  • Each LED is equipped with a Fresnel lens.

    Fresnel Lens (2LH, 3LH)

    Each LED is equipped with a Fresnel lens.

  • Thanks to our innovative technologies, the LED indicator can be powered with both AC or DC power supply without any risk.

    Smart PCB

    Thanks to our innovative technologies, the LED indicator can be powered with both AC or DC power supply without any risk.

  • A built-in circuit provided with specific diodes allows to test the LEDs functionality with no need of external tools for cabling, no extra work, no extra money and no extra space.

    Built-in Lamp Test Facility

    A built-in circuit provided with specific diodes allows to test the LEDs functionality with no need of external tools for cabling, no extra work, no extra money and no extra space.

  • A built-in protection diode absorbs any incidental excess current to avoid reverse feeding, minimizing the risk of LEDs unexpected lighting and hazards to the electrical grid equipment.

    Backfeed Protection

    A built-in protection diode absorbs any incidental excess current to avoid reverse feeding, minimizing the risk of LEDs unexpected lighting and hazards to the electrical grid equipment.

  • To avoid the risk of unexpected and random switch-ons, the device will be provided with a Zener diode that properly calibrates the minimum voltage required to switch on the LED Indicator.

    Low Voltage Glow Protection

    To avoid the risk of unexpected and random switch-ons, the device will be provided with a Zener diode that properly calibrates the minimum voltage required to switch on the LED Indicator.

  • Totally protected against dust ingress.
Protected against low pressure water jets from any direction.

    IP65

    Totally protected against dust ingress. Protected against low pressure water jets from any direction.

  • Protected against solid objects over 1.0mm in diameter.
No protection against liquids.

    IP40

    Protected against solid objects over 1.0mm in diameter. No protection against liquids.

  • The state of the art of our technological research allows us to insert into this device an SMD equipped with a 8 layers PCB.

    8 layers PCB

    The state of the art of our technological research allows us to insert into this device an SMD equipped with a 8 layers PCB.

Go to Technical Features
