Technical Features

• Series

  DX22



• Base code

  DX22 S30


• Positions

  •

    Stay Put

    2 Positions (1-2), Stay Put

  •

    Stay Put

    3 Positions (1-0-2), Stay Put

  •

    Spring Return

    2 Positions (1-2), Spring Return (2 to 1)

  •

    Spring Return

    3 Positions (1-0-2), Spring Return (to 0)

• Contact block system

  •
    1NC
  •
    2NC
  •
    3NC
  •
    1NO
  •
    2NO
  •
    3NO
  •
    1NC+1NO
  •
    1NC+2NO
  •
    1NC+3NO
  •
    2NC+1NO
  •
    2NC+2NO
  •
    2NC+3NO
  •
    3NC+1NO
  •
    3NC+2NO
  •
    3NC+3NO
  •
    1NC+EPL
  •
    2NC+EPL
  •
    3NC+EPL
  •
    1NO+EPL
  •
    2NO+EPL
  •
    3NO+EPL
  •
    1NC+1NO+EPL
  •
    1NC+2NO+EPL
  •
    1NC+3NO+EPL
  •
    2NC+1NO+EPL
  •
    2NC+2NO+EPL
  •
    2NC+3NO+EPL
  •
    3NC+1NO+EPL
  •
    3NC+2NO+EPL
  •
    3NC+3NO+EPL

• Extra features

  •
    Chromium plated

• Specific features

  •

    Anti-rotation system

    Once mounted, the device keeps its position.

• Degree of protection

  •
    IP40

• Ambient air temperature

  •

    -20°C
    +70 °C

    For storage
    -20 ... +70°C

  •

    -5 °C
    +55 °C

    For operation
    -5 ... +55°C

• Humidity

  •

    35 ... 85%RH

• Materials

  •
    PA66
  •
    PC
  •
    ZAMAK

• Operating travel

  • 2 POSITIONS

    • 22.5° (NC changing electrical state)
    • 22.5° (NO changing electrical state)

  • 3 POSITIONS

    • 22.5° (NC changing electrical state)
    • 22.5° (NO changing electrical state)
    • 30° (total travel)

• Device presentation

  • Monolithic product

• Vibration resistance

  • 5gn (f = 2...500 Hz)

    conforming to IEC 60068-2-6

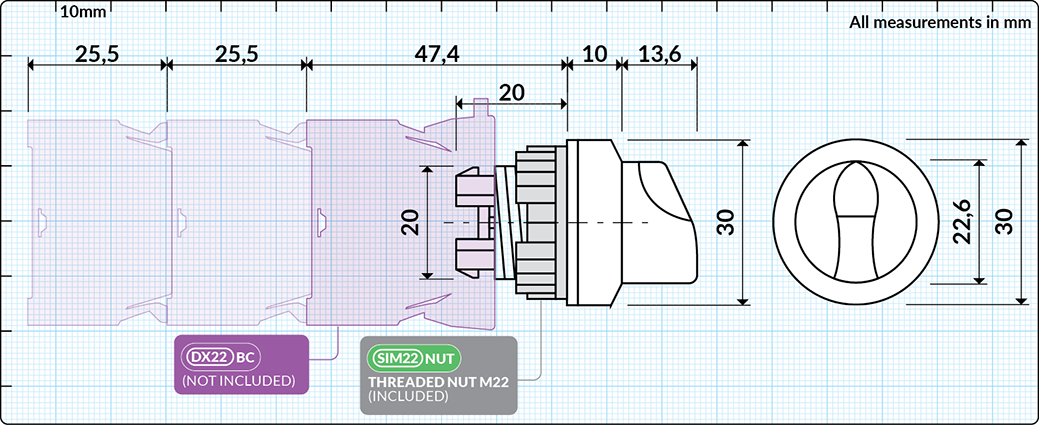

• Dimensions



• • REACh free of SVHC

  • Mercury free

  • Toxic heavy metal free

• Compliance

  Directive 2006/95/EC Low Voltage
  Directive 2004/108/EC Electromagnetic Compatibility
  Directive 2011/65/EC RhOS
  Directive 2006/42/EC Machinery

  Conformity to standards

  EN/IEC 60947.5.1 / EN 60073 / EN 60529 / EN 60068-2-6 / EN 60204.1 / EN ISO 7731 / EN 981 / IEC 536

  Warranty

  Warranty period is eighteen (18) months and starts from the goods delivery date.

  Customs Code

  8536 5011
