CR Regular
Semaphore LED indicators
CR22/30BASE CODE
Need a quotation? Configure your product then ask us!
Headfirst into your needs.
Get your LED indicator with a round or square head shape, protruding or flush with the panel.

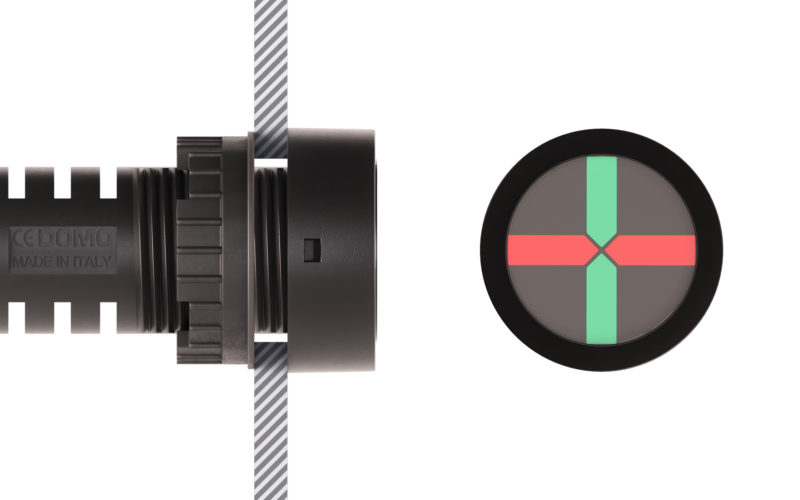

Protruding
Round head
Round display
Head size: Ø30mm
Cut-out: Ø22mm

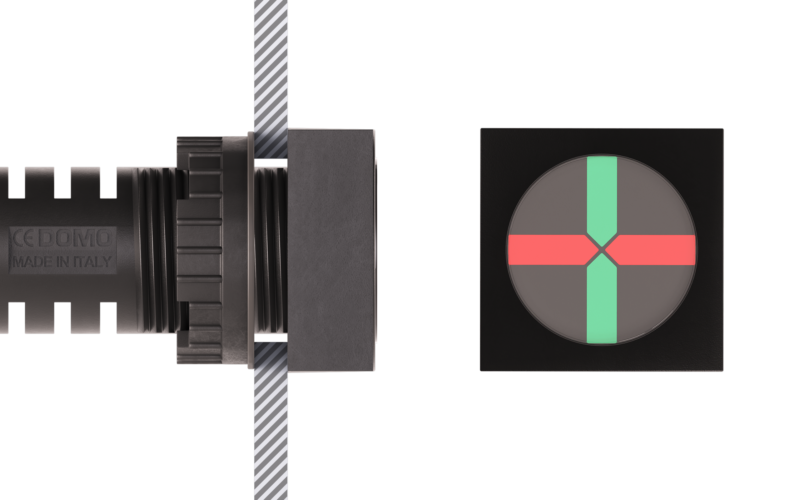

Protruding
Square head
Round display
Head size: 30x30mm
Cut-out: Ø22mm

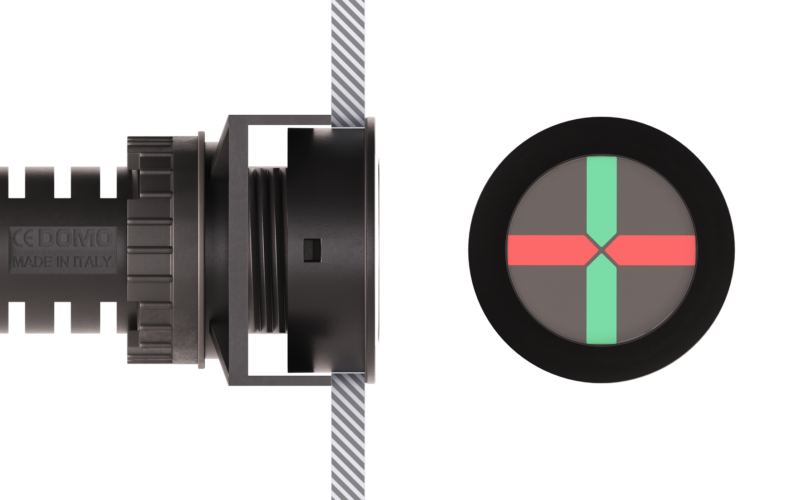

Flush mounting
Round head
Round display
Head size: Ø32,5mm
Cut-out: Ø30mm

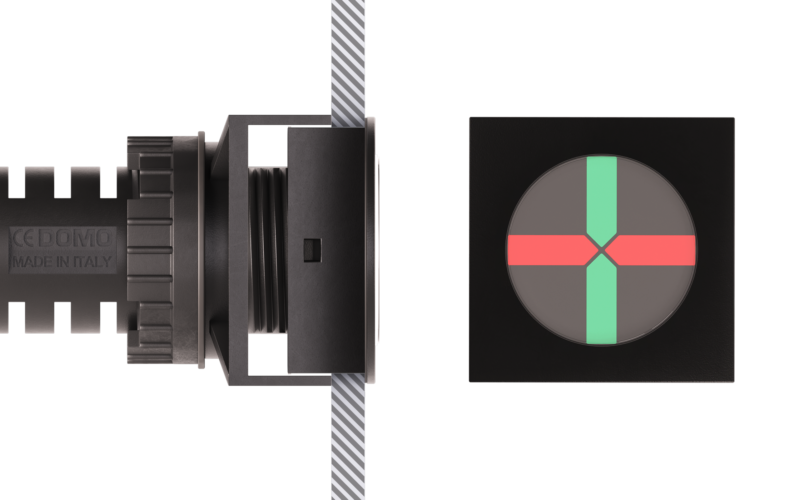

Flush mounting
Square head
Round display
Head size: 32,5x32,5mm
Cut-out: 30x30mm
A wide choice of bright and colored lights combinations.
DOMO CR series (Semaphore LED indicators) offers the possibility to indicate two or three different directions on the same device.
The CR REGULAR model is available with:
• a choice of six color combinations, all with intense and bright colored light
• a white/white combination with red/green lights
• a Tricolor solution
Pure green
Green LEDs produce a pure green light, enhancing performance and visibility.
IP54
Ingress of dust is not totally prevented, but dust shall not penetrate in a sufficient quantity to interfere with satisfactory operation of the apparatus or to impair safety. Water splashed against the enclosure from any direction shall have no harmful effects. EN 60529
Choose the power supply value that's right for you.*
*And if it's not in the catalogue, try to ask for it.
- 24 VAC/DC13÷30V
- 48 VAC/DC15÷60V
- 130 VAC/DC70÷150V
- 230 VAC/DC160÷250V
Or customizable upon request.
...or choose not to have to think about it at all!
As if the possibility of choosing the voltage value suited to your needs wasn’t enough, the brand new MultiVoltage solution leaves no room for doubts: you won't have to worry about how to power it anymore, because light will always turn on at full intensity!
MultiVoltage
24÷240Vac
24÷300Vdc
Built-in rectifier bridge
Thanks to the built-in rectifier bridge, the device can be powered with both AC or DC power supply without any error.
Backfeed protection
A built-in protection diode absorbs any incidental excess current to avoid reverse feeding, minimizing the risk of LEDs unexpected lighting and hazards to the electrical grid equipment.
Low-voltage glow protection
To avoid the risk of unexpected and random switch-ons, the device will be provided with a Zener diode that properly calibrates the minimum voltage required to switch on the LED Indicator.
Need more informations? Discover all the Technical features.
The freedom to get the right connections.
Classic Faston and Screw terminals or new Plug-in screw and Plug-in spring terminals: four different options to provide customized possibilities to meet your needs.
Faston terminals
Screw connection with tension sleeve
is not compatible with
Screw connection with tension sleeve on pluggable terminal blocks
Push-in spring connection on pluggable terminal blocks
Do you want to know how to connect it? Find the installation manual and other useful informations in the Library
The secret of all this condensed power:
4 layers PCB
The state of the art of our technological research allows us to insert into this device an SMD equipped with a 4 layers PCB.
Wait!
...want even more?
You can enhance your LED indicator with the optional features you prefer.
Built-in double lamp test facility
A built-in circuit provided with specific diodes allows to test the LEDs functionality with no need of external tools for cabling, no extra work, no extra money and no extra space. "Double" means that the device is equipped with 2 LT and 2 COM- connectors that come useful if you plan to connect your devices in series, so that you can test them all toghether.
is not compatible with
Tropicalization
Enjoy a longer durability: a protective layer covers the whole circuit preventing the potential damages that may occour in dusty, saline, humid and oxidizing environments.
Flying leads
Don’t waste your time with cabling: we can cable wires as long and thick as you need and mount them on the connection terminal you choose.
Accessories and spares
The following products can be used together with CR Regular:
