CD16 PS

Square Pushbuttons (16/18 and 16/24)

CD16 PS

Head size

  • 18

    18x18mm

    18x18mm
  • 24

    24x24mm

    24x24mm

Operation

Momentary

Momentary

It remains in a state (NO or NC) only as long as it is being compressed. Once the user removes the compression of the switch the device is no longer in that state.

Latching

Latching

It remains in a state (NO or NC) until pressed again. It requires to be pressed down another time to either switch its state.

Head type

  • A Type
    A Type

    A Type

    Protruding head

  • B Type
    B Type

    B Type

    Flush mounting head

Colors

Actuators in matt or transparent colors.

  •  CD16 PS

    OPAQUE Opaque Red

    CD16 PS
  •  CD16 PS

    OPAQUE Opaque Green

    CD16 PS
  •  CD16 PS

    OPAQUE Opaque Yellow

    CD16 PS
  •  CD16 PS

    OPAQUE Opaque Blue

    CD16 PS
  •  CD16 PS

    OPAQUE Opaque White

    CD16 PS

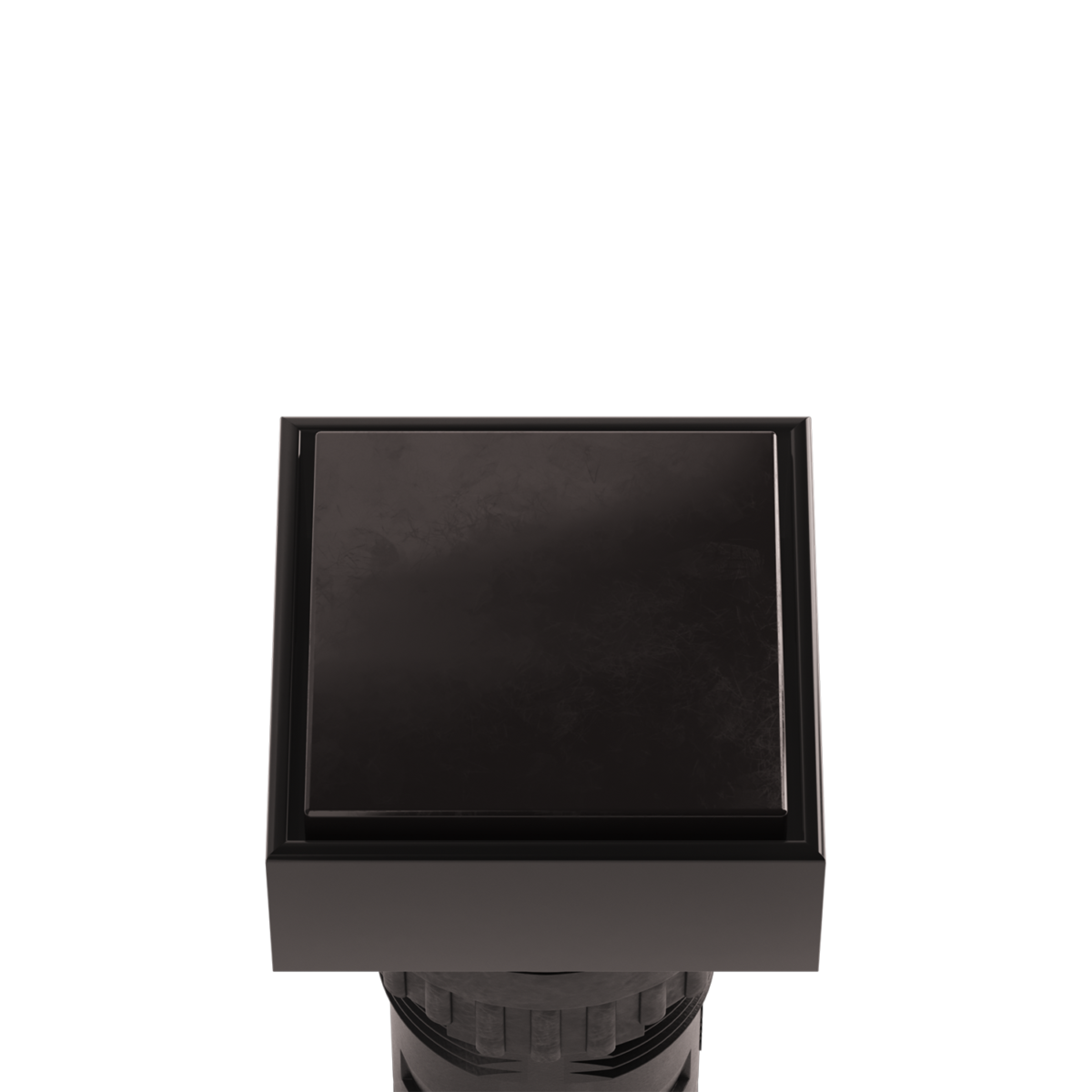

  •  CD16 PS

    OPAQUE Opaque Black

    CD16 PS
  •  CD16 PS

    TRANSPARENT (can be illuminated) Transparent Red

    Can be illuminated.

    CD16 PS
  •  CD16 PS

    TRANSPARENT (can be illuminated) Transparent Green

    Can be illuminated.

    CD16 PS
  •  CD16 PS

    TRANSPARENT (can be illuminated) Transparent Yellow

    Can be illuminated.

    CD16 PS
  •  CD16 PS

    TRANSPARENT (can be illuminated) Transparent Amber

    Can be illuminated.

    CD16 PS
  •  CD16 PS

    TRANSPARENT (can be illuminated) Transparent Blue

    Can be illuminated.

    CD16 PS
  •  CD16 PS

    TRANSPARENT (can be illuminated) Transparent White

    Can be illuminated.

    CD16 PS

Extra features

Enhance your
indicator
with the options
you prefer.

  • Flap cover guard
  • Flap cover guard

    Flap cover guard

    G is not compatible with 18+B

Contact block required

CD16

CD16

Contact block system

This device needs a contact block system of the same family (CD16) to work. Please refer to the corresponding section of the catalogue for the compatible combinations.

Discover it in the catalogue

Specific features

Some more technical info for you.

  • 16/24 model is designed to fit into the mosaic tile system.

    Compatible with Mosaic Mimic Panels

    16/24 model is designed to fit into the mosaic tile system.

  • 16/24 model is designed to fit into the CTR24 matrix panel.

    Compatible with Control and Annunciator Panels

    16/24 model is designed to fit into the CTR24 matrix panel.

  • Once mounted, the device keeps its position.

    Anti-rotation system

    Once mounted, the device keeps its position.

  • Protected against solid objects over 1.0mm in diameter.
No protection against liquids.

    IP40

    Protected against solid objects over 1.0mm in diameter. No protection against liquids.

Go to Technical Features
