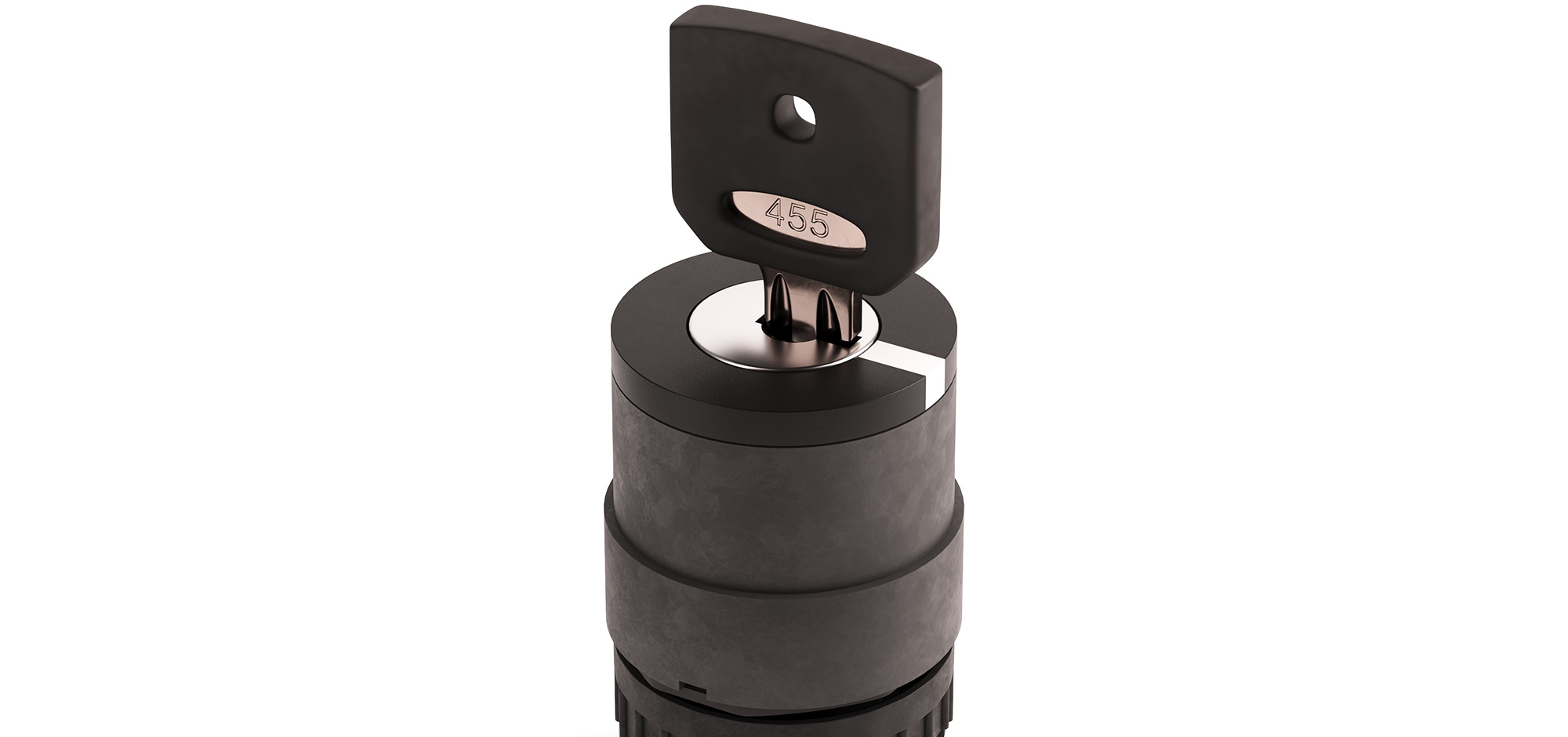

SH22 K30
SH22 K30 BASE CODE
Need a quotation? Configure your product then ask us!
IP65
No ingress of dust. Water projected in jets against the enclosure from any direction shall have no harmful effects. EN 60529
-
Anti-rotation system
Once mounted, the device keeps its position.
Need more informations? Discover all the Technical features.
2 or 3 positions, stay put or spring return.
2 POSITIONS
-
2FStay Put
2 Positions (1-2), Stay Put
-
2RSpring Return
2 Positions (1-2), Spring Return (2 to 1)
3 POSITIONS
-
3FStay Put
3 Positions (1-0-2), Stay Put
-
3RSpring Return
3 Positions (1-0-2), Spring Return (to 0)
2F: key can be removed in the left, right or any positions;
2R: key can be removed in the left position;
3F: key can be removed in the left, right, middle or any positions;
3R: key can be removed in the middle position.

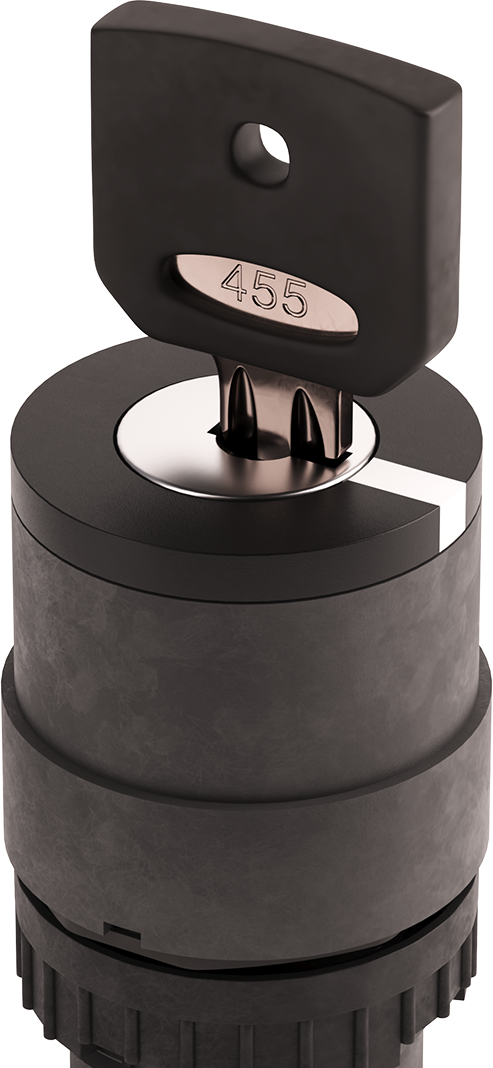

Choose the position
to remove the key
Choose whether to remove the key in the middle (0), left (1), right (2), or in any position.
Choose whether to remove the key in the middle (0), left (1), right (2), or in any position.
Contact block required
SH22
Contact block system
This device needs a contact block system of the same family (SH22) to work. Please refer to the corresponding section of the catalogue for the compatible combinations.
Accessories and spares
The following products can be used together with SH22 K30:
