PI LARGE
Position LED indicator (22/48)
Head type
It always stands out
-
A Type
Protruding head
Head shape
Round or square,
it always fits your needs.
-
Round head
Round display
-
Square head
Round display
Symbols and colors
Ground or disconnector,
a full palette at your service.
-

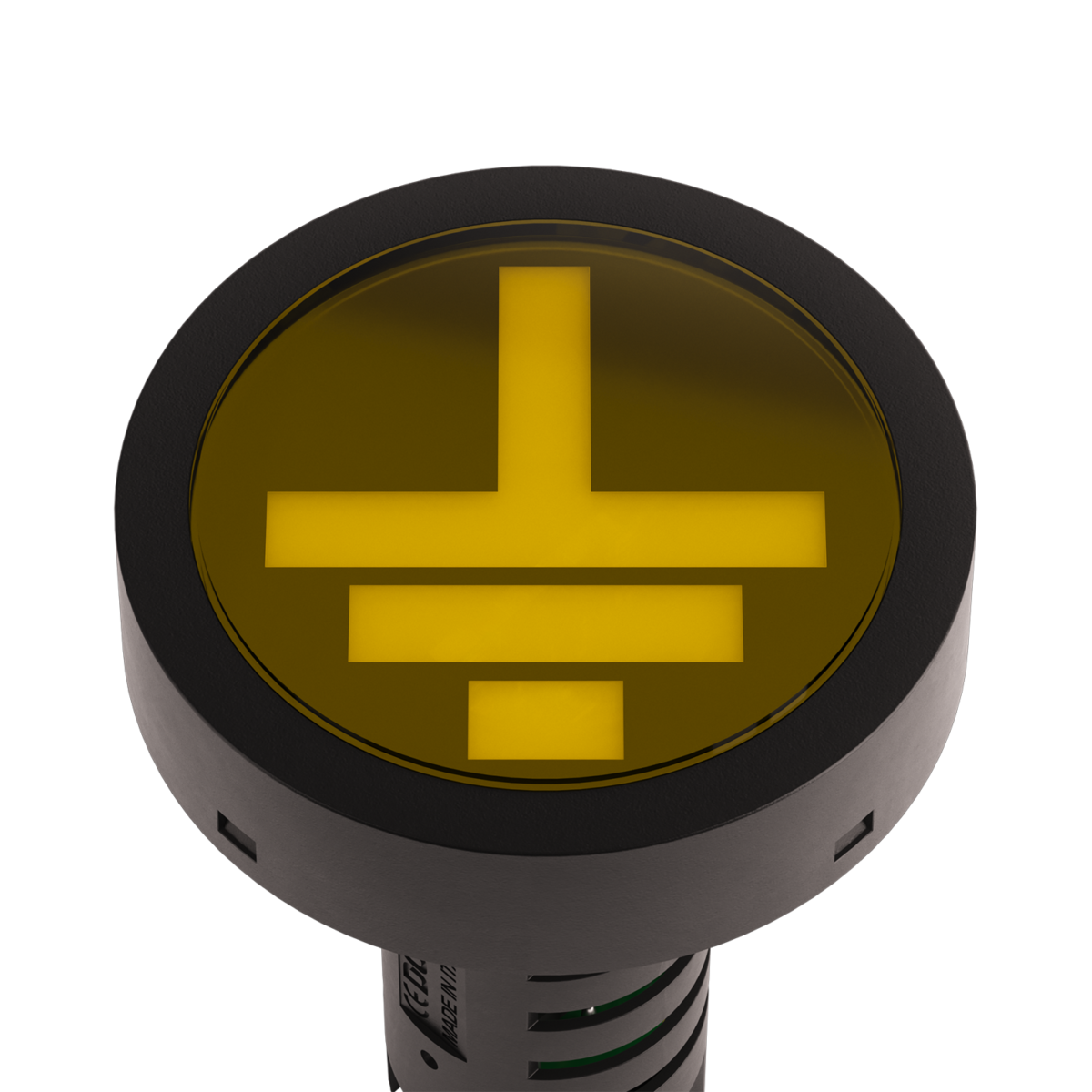

MONOCOLOR - Ground Symbol Ground symbol, Red Lens, Red LED
-
MONOCOLOR - Ground Symbol Ground symbol, Green Lens, Green LED
-
MONOCOLOR - Ground Symbol Ground symbol, Yellow Lens, Yellow LED
-
MONOCOLOR - Ground Symbol Ground symbol, Amber Lens, Amber LED
-
MONOCOLOR - Ground Symbol Ground symbol, Blue Lens, Blue LED
-
MONOCOLOR - Ground Symbol Ground symbol, White Lens, White LED
-
BICOLOR - Ground Symbol Ground symbol, White Lens, Red/Green LED
is not compatible with
-

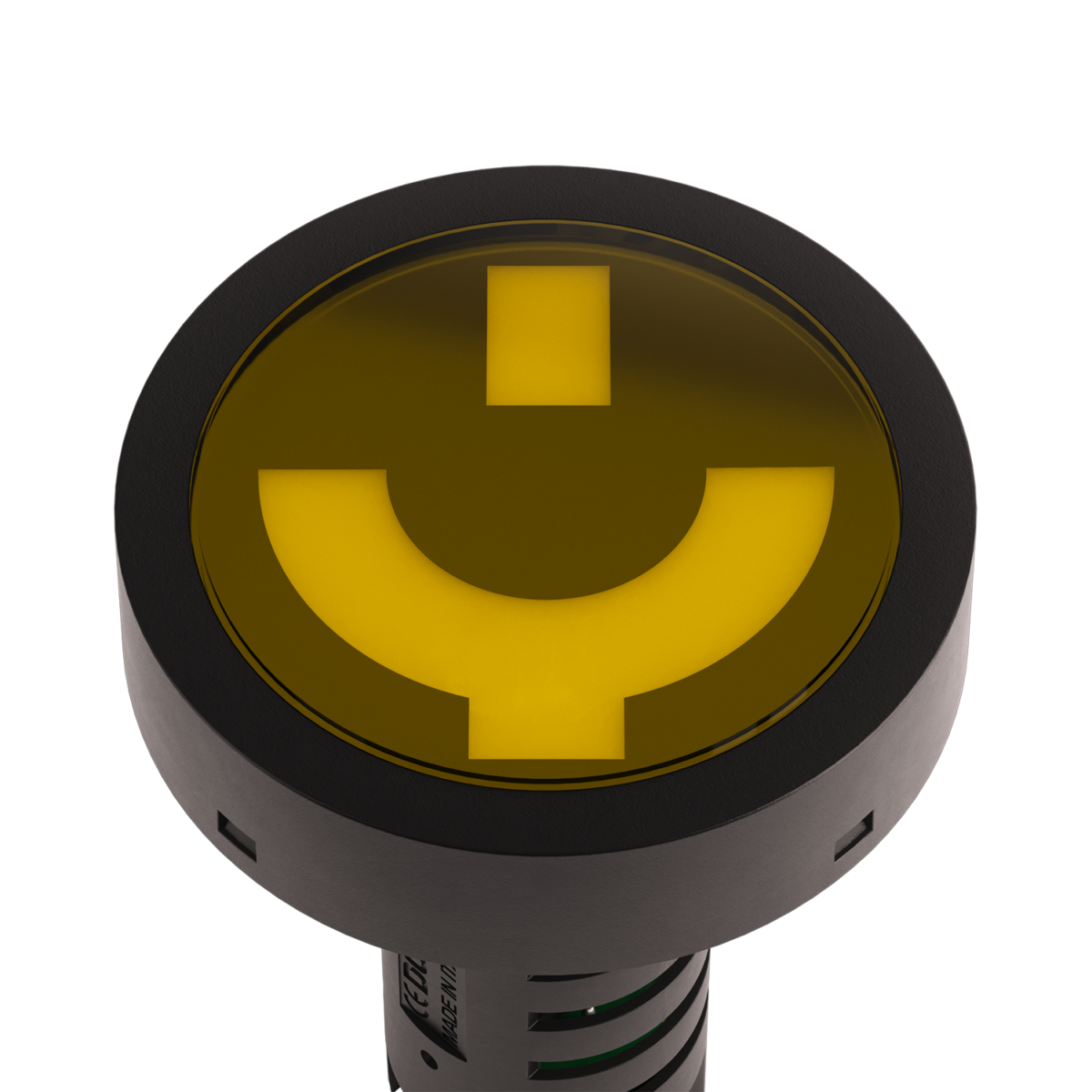

MONOCOLOR - Disconnector Symbol Disconnector symbol, Red Lens, Red LED
-
MONOCOLOR - Disconnector Symbol Disconnector symbol, Green Lens, Green LED
-
MONOCOLOR - Disconnector Symbol Disconnector symbol, Yellow Lens, Yellow LED
-
MONOCOLOR - Disconnector Symbol Disconnector symbol, Amber Lens, Amber LED
-
MONOCOLOR - Disconnector Symbol Disconnector symbol, Blue Lens, Blue LED
-
MONOCOLOR - Disconnector Symbol Disconnector symbol, White Lens, White LED
-
BICOLOR - Disconnector Symbol Disconnector symbol, White Lens, Red/Green LED
is not compatible with
Power supply voltage
Choose the type of
power supply
that's right for you.*
*And if it's not in the catalog,
try to ask for it.
- 24 AC/DC
- 48 AC/DC
- 130 AC/DC
- 230 AC/DC
-
Or customizable
upon request.
Connection types
How do you prefer to connect it?
-
Faston Terminals
-
Screw Connection with Tension Sleeve
-
Screw Connection with Tension Sleeve on Pluggable Terminal Blocks
-
Push-in Spring Connection on Pluggable Terminal Blocks
Extra features
Enhance your
indicator
with the options
you prefer.
-
Built-in Lamp Test Facility
A built-in circuit provided with specific diodes allows to test the LEDs functionality with no need of external tools for cabling, no extra work, no extra money and no extra space.
is not compatible with -
Tropicalization
Enjoy a longer durability: a protective layer covers the whole circuit preventing the potential damages that may occour in dusty, saline, humid and oxidizing environments.
-
Flying Leads
Don’t waste your time with cabling: we can cable wires as long and thick as you need and mount them on the connection terminal you choose.
Specific features
There's a lot more to know.
-
Smart PCB
Thanks to our innovative technologies, the LED indicator can be powered with both AC or DC power supply without any risk.
-
Backfeed Protection
A built-in protection diode absorbs any incidental excess current to avoid reverse feeding, minimizing the risk of LEDs unexpected lighting and hazards to the electrical grid equipment.
-
Low Voltage Glow Protection
To avoid the risk of unexpected and random switch-ons, the device will be provided with a Zener diode that properly calibrates the minimum voltage required to switch on the LED Indicator.
-
IP54
Limited protection against dust ingress. Protected against splash water from any direction.
-
4 layers PCB
The state of the art of our technological research allows us to insert into this device an SMD equipped with a 4 layers PCB.
