P SMALL

Flat display LED indicator (16/24)

P small

Head type

Protruding or flush mounting head.

  • A Type
    A Type

    A Type

    Protruding head

  • B Type
    B Type

    B Type

    Flush mounting head

Head shape

Round or square,
it always fits your needs.

  • Round head

    Round head

    Round display

    Round head

    Tis not compatible with2F

  • Square head

    Square head

    Round display

    Square head

    Qis not compatible with2F

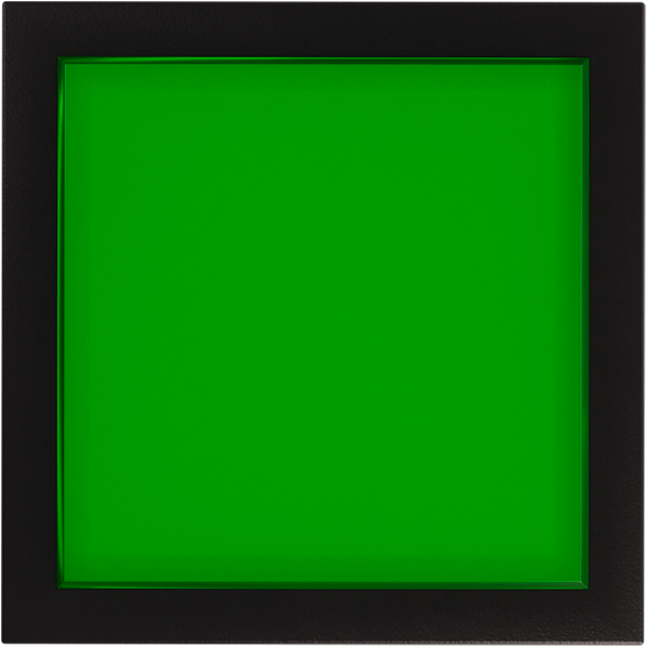

  • Square head

    Square head

    Square display

    Square head

Colors

  •  P small

    MONOCOLOR Red lens, Red LED

    P small
  •  P small

    MONOCOLOR Green lens, Green LED

    P small
  •  P small

    MONOCOLOR Yellow lens, Yellow LED

    P small
  •  P small

    MONOCOLOR Amber lens, Amber LED

    P small
  •  P small

    MONOCOLOR Blue lens, Blue LED

    P small
  •  P small

    MONOCOLOR White lens, White LED

    P small
  •  P small

    BICOLOR White lens, Red/Green LEDs

    WRGis not compatible with

    P small
  •  P small

    2 FACES Red and Green

    2Fis not compatible withLTTQ

    P small

Power supply voltage

Choose the type of
power supply
that's right for you.*

*And if it's not in the catalog,
try to ask for it.

  • 24 AC/DC
  • 48 AC/DC
  • 130 AC/DC
  • 230 AC/DC
  • Or customizable
    upon request.

Read more

Connection types

Easy, fast, connected.

  • P small
    P small

    Faston terminals

    P small

Read more

Extra features

Enhance your
indicator
with the options
you prefer.

  • Built-in lamp test facility
  • Tropicalization
  • Flying leads
  • Built-in lamp test facility

    Built-in lamp test facility

    A built-in circuit provided with specific diodes allows to test the LEDs functionality with no need of external tools for cabling, no extra work, no extra money and no extra space.

    LTis not compatible with2F

  • Tropicalization

    Tropicalization

    Enjoy a longer durability: a protective layer covers the whole circuit preventing the potential damages that may occour in dusty, saline, humid and oxidizing environments.

  • Flying leads

    Flying leads

    Don’t waste your time with cabling: we can cable wires as long and thick as you need and mount them on the connection terminal you choose.

Specific features

There's a lot more to know.

  • Thanks to our innovative technologies, the LED indicator can be powered with both AC or DC power supply without any risk.

    Smart PCB

    Thanks to our innovative technologies, the LED indicator can be powered with both AC or DC power supply without any risk.

  • A built-in protection diode absorbs any incidental excess current to avoid reverse feeding, minimizing the risk of LEDs unexpected lighting and hazards to the electrical grid equipment.

    Backfeed Protection

    A built-in protection diode absorbs any incidental excess current to avoid reverse feeding, minimizing the risk of LEDs unexpected lighting and hazards to the electrical grid equipment.

  • To avoid the risk of unexpected and random switch-ons, the device will be provided with a Zener diode that properly calibrates the minimum voltage required to switch on the LED Indicator.

    Low Voltage Glow Protection

    To avoid the risk of unexpected and random switch-ons, the device will be provided with a Zener diode that properly calibrates the minimum voltage required to switch on the LED Indicator.

  • Limited protection against dust ingress.
Protected against splash water from any direction.

    IP54

    Limited protection against dust ingress. Protected against splash water from any direction.

  • The state of the art of our technological research allows us to insert into this device an SMD equipped with a 4 layers PCB.

    4 layers PCB

    The state of the art of our technological research allows us to insert into this device an SMD equipped with a 4 layers PCB.

Go to Technical Features
