Technical Features

  • Series

    ML
    ML large

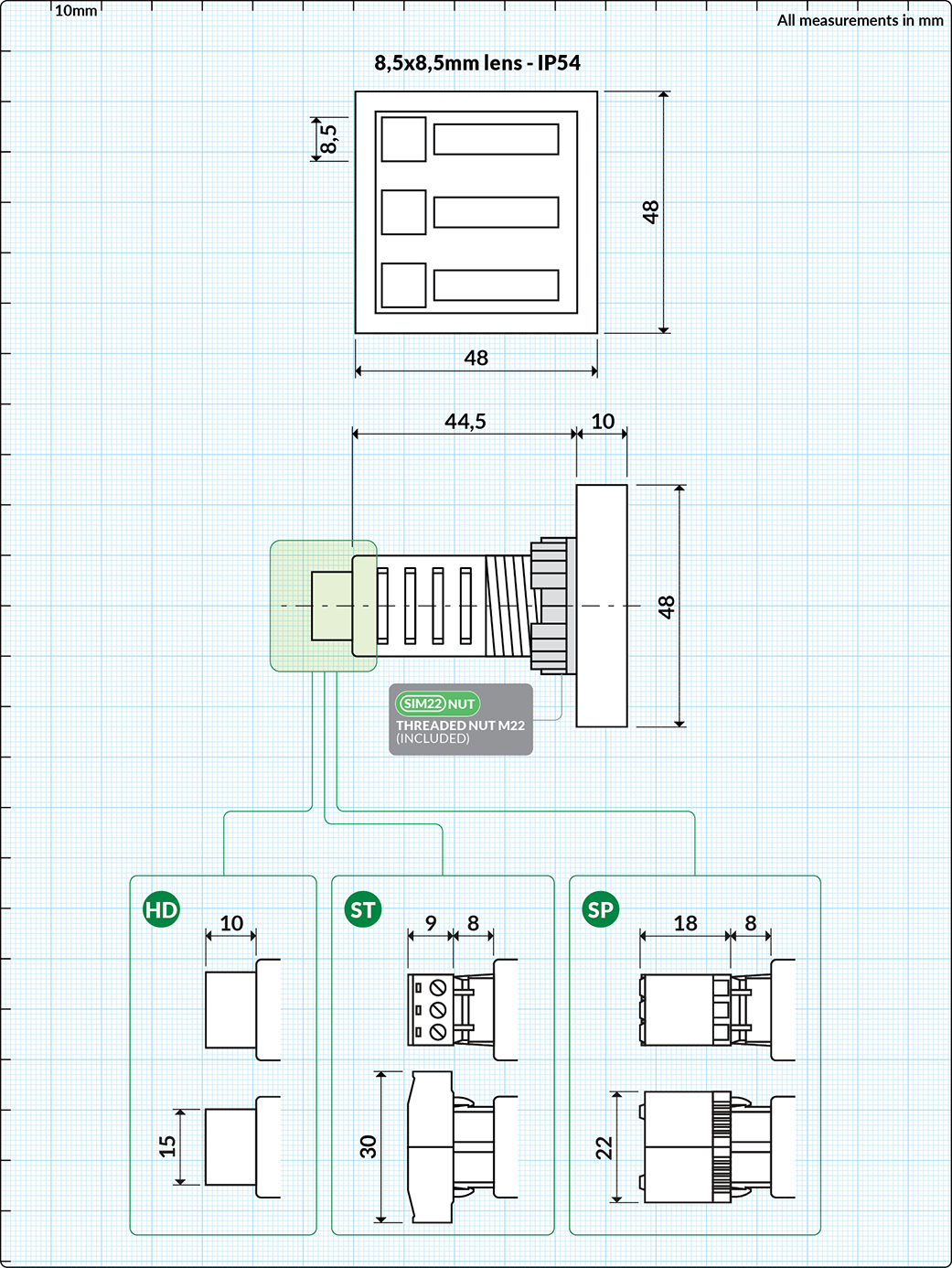

  • Size

    LARGE
    Cut-out: 22mm
    Head: 48mm

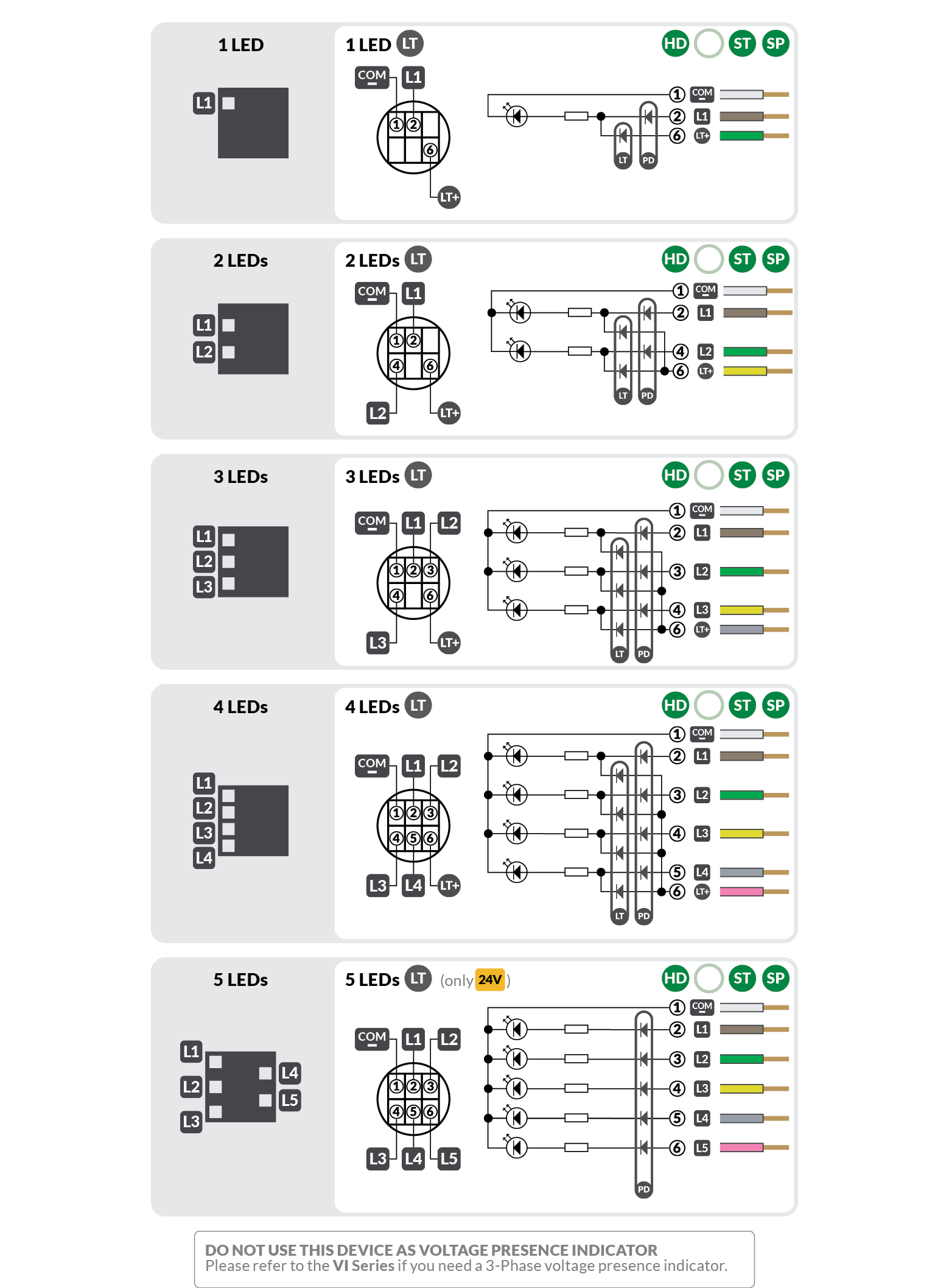

  • LEDs

    IP54
    • 1 LED
      1 LED
    • 2 LEDs
      2 LEDs
    • 3 LEDs
      3 LEDs
    • 4 LEDs
      4 LEDs
    • 5 LEDs
      5 LEDs 1
    Colors
  • Power supply voltage

    • 24V AC/DC
      24V AC/DC
    • 48V AC/DC
      48V AC/DC 2
    • 130V AC/DC
      130V AC/DC 3
    • 230V AC/DC
      230V AC/DC 4

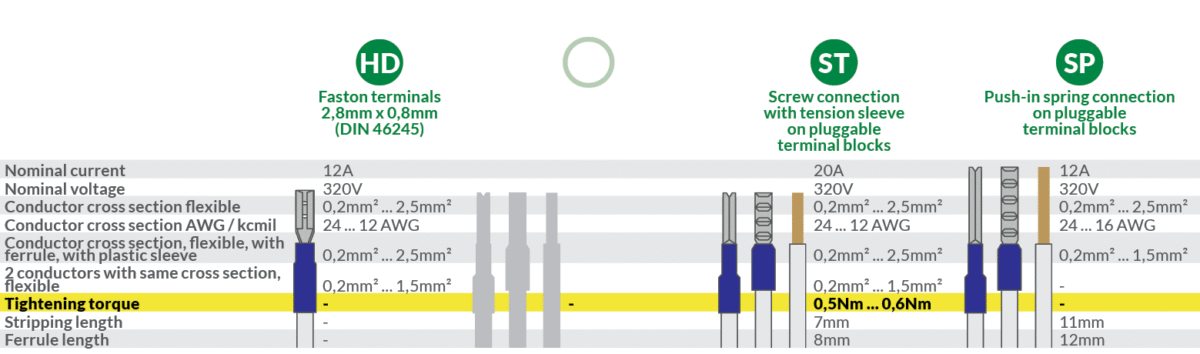

  • Connection type

    • HD
      Faston terminals
    • ST
      Screw connection with tension sleeve on pluggable terminal blocks
    • SP
      Push-in spring connection on pluggable terminal blocks
  • Extra features

    • TR
      Tropicalization
    • FL
      Flying leads
  • Specific features

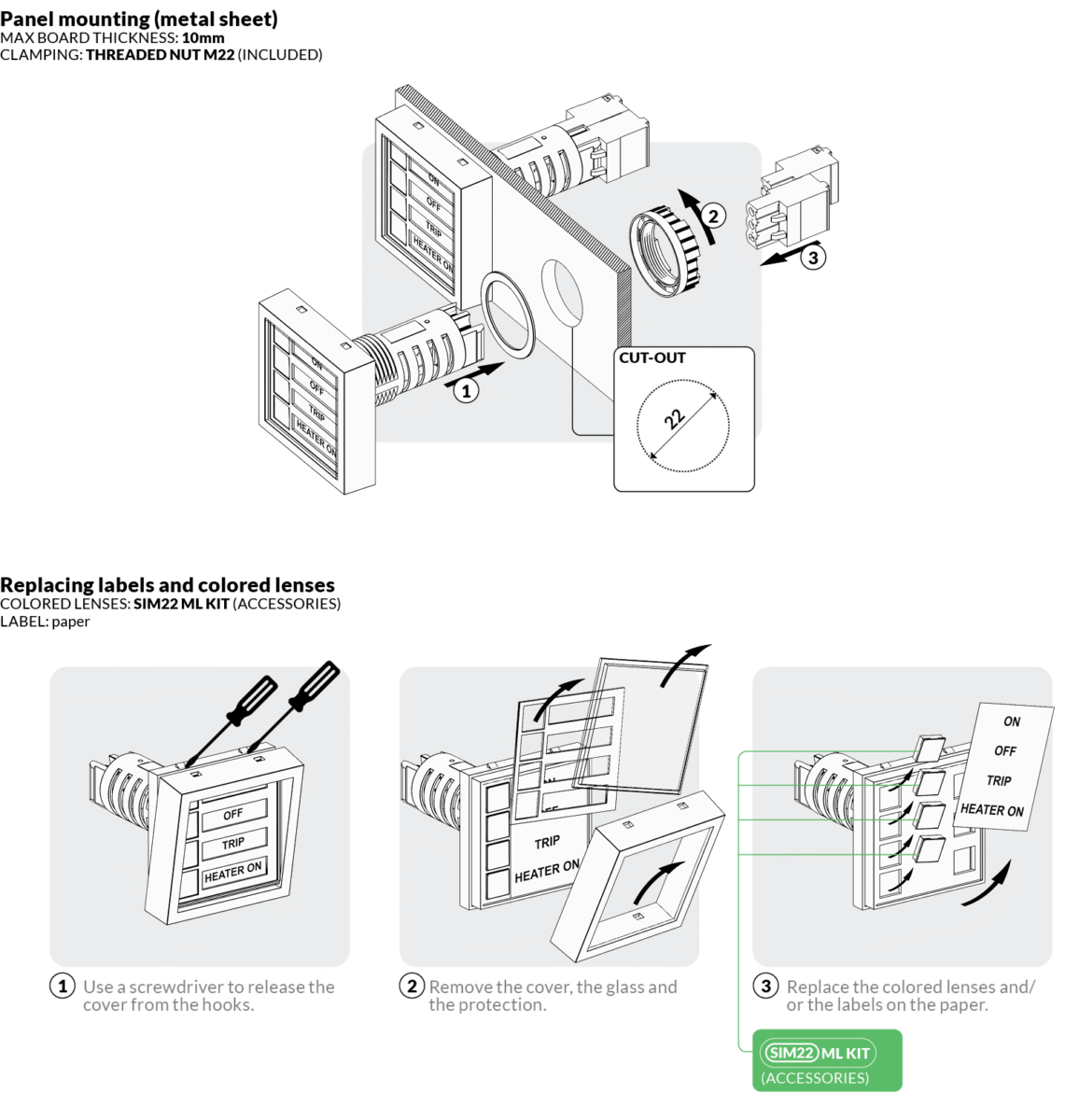

    • Interchangeable Lenses
      Interchangeable Lenses

      Lenses are easily removable and can be swapped with different colors.

    • Replaceable Labels
      Replaceable Labels

      Labels can be easily removed and replaced.

    • Smart PCB
      Smart PCB

      To operate both in alternating (Vac) and direct current (Vdc).

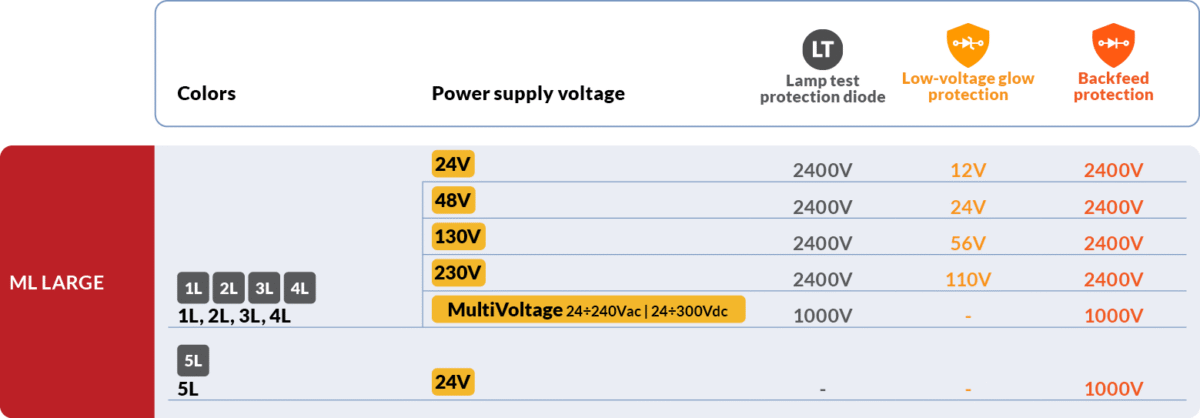

    • Built-in Lamp Test Facility
      Built-in Lamp Test Facility

      A built-in circuit provided with specific diodes allows to test the LEDs functionality with no need of external tools for cabling, no extra work, no extra money and no extra space.

    • Backfeed Protection
      Backfeed Protection

      Built-in protection diodes protect the circuit from reverse voltage and current.

    • Low Voltage Glow Protection
      Low Voltage Glow Protection

      A Zener diode properly calibrates the minimum voltage required to switch on the LED Indicator.

  • Degree of protection

    • <b>IP54</b>
      IP54
  • Service life

    • <b>>100.000h at 25°C</b>
      >100.000h at 25°C
  • Ambient air temperature

    • Storage Temperature

      -40°C
      +70°C

      For storage
      -40... +70°C

    • Operation Temperature

      -20°C
      +60°C

      For operation
      -20... +60°C

  • Materials

    • <b>Polycarbonate (PC)</b>
      Polycarbonate (PC)
    • <b>PMMA</b>
      PMMA
  • PCB

    • <b>8 layers PCB</b>
      8 layers PCB
  • Bulb base

    • Integral LED

  • Device presentation

    • Monolithic product

  • Vibration resistance

    • 5gn (f = 2...500 Hz)

      conforming to IEC 60068-2-6

  • Electromagnetic compatibility

    • Disturbing field emission class B

      conforming to EN 55011

    • REACh free of SVHC

    • Mercury free

    • Toxic heavy metal free

  • Compliance

    Directive 2006/95/EC Low Voltage
    Directive 2004/108/EC Electromagnetic Compatibility
    Directive 2011/65/EC RhOS
    Directive 2006/42/EC Machinery

    Conformity to standards

    EN 60947.5.1 / EN 60073 / EN 60529 / EN 60068-2-6 / EN 60204.1 / EN ISO 7731 / EN 981 / IEC 536

    Warranty

    Warranty period is eighteen (18) months and starts from the goods delivery date.

    Customs Code

    8531 807000

    • 1 5Lis not compatible with48130230
    • 2 48is not compatible with5L
    • 3 130is not compatible with5L
    • 4 230is not compatible with5L
