Technical Features

• Series

  DX22 PR



• Base code

  DX22 PR30


• Button projection

  •
    Flush
  •
    Extended

• Operation

  •
    Momentary
  •
    Latching

• Contact block system

  •
    1NC
  •
    2NC
  •
    3NC
  •
    1NO
  •
    2NO
  •
    3NO
  •
    1NC+1NO
  •
    1NC+2NO
  •
    1NC+3NO
  •
    2NC+1NO
  •
    2NC+2NO
  •
    2NC+3NO
  •
    3NC+1NO
  •
    3NC+2NO
  •
    3NC+3NO
  •
    1NC+EPL
  •
    2NC+EPL
  •
    3NC+EPL
  •
    1NO+EPL
  •
    2NO+EPL
  •
    3NO+EPL
  •
    1NC+1NO+EPL
  •
    1NC+2NO+EPL
  •
    1NC+3NO+EPL
  •
    2NC+1NO+EPL
  •
    2NC+2NO+EPL
  •
    2NC+3NO+EPL
  •
    3NC+1NO+EPL
  •
    3NC+2NO+EPL
  •
    3NC+3NO+EPL

• Colors

  OPAQUE

  •
    Opaque Red
  •
    Opaque Green
  •
    Opaque Yellow
  •
    Opaque Blue
  •
    Opaque White
  •
    Opaque Black

  TRANSPARENT (can be illuminated)

  •
    Transparent Red
  •
    Transparent Green
  •
    Transparent Yellow
  •
    Transparent Amber
  •
    Transparent Blue
  •
    Transparent White

• Extra features

  •
    Chromium plated

• Specific features

  •

    Anti-rotation system

    Once mounted, the device keeps its position.

• Degree of protection

  •
    IP65

• Ambient air temperature

  •

    -20°C
    +70 °C

    For storage
    -20 ... +70°C

  •

    -5 °C
    +55 °C

    For operation
    -5 ... +55°C

• Humidity

  •

    35 ... 85%RH

• Materials

  •
    ABS
  •
    PA66

• Operating travel

  • MOMENTARY

    • 4.0 mm (NO changing electrical state)
    • 4.0 mm (NC changing electrical state)
    • 6.0 mm (total travel)

  • LATCHED

    • 3.0 mm (NO changing electrical state)
    • 3.0 mm (NC changing electrical state)
    • 5.0 mm (total travel)

• Device presentation

  • Monolithic product

• Vibration resistance

  • 5gn (f = 2...500 Hz)

    conforming to IEC 60068-2-6

• Electromagnetic compatibility

  • Disturbing field emission class B

    conforming to EN 55011

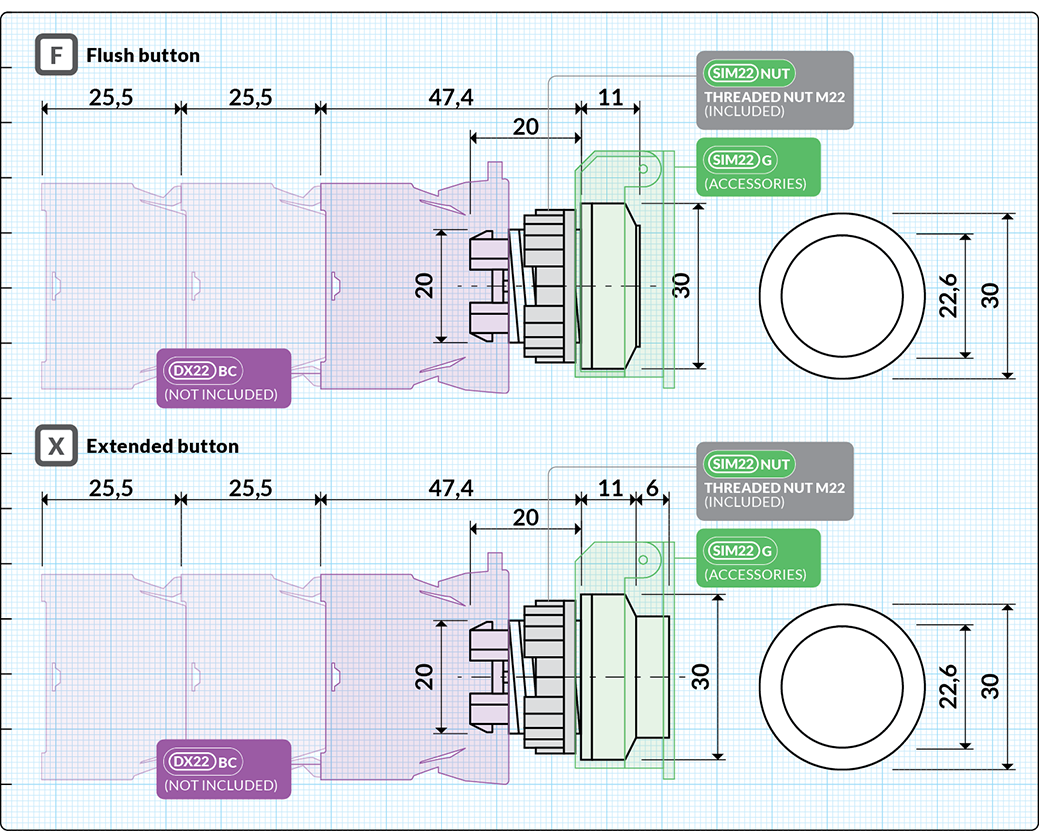

• Dimensions



• • REACh free of SVHC

  • Mercury free

  • Toxic heavy metal free

• Compliance

  Directive 2006/95/EC Low Voltage
  Directive 2004/108/EC Electromagnetic Compatibility
  Directive 2011/65/EC RhOS
  Directive 2006/42/EC Machinery

  Conformity to standards

  EN/IEC 60947.5.1 / EN 60073 / EN 60529 / EN 60068-2-6 / EN 60204.1 / EN ISO 7731 / EN 981 / IEC 536

  Warranty

  Warranty period is eighteen (18) months and starts from the goods delivery date.

  Customs Code

  8536 5011
