CD16 K24
CD16 K24 BASE CODE
Need a quotation? Configure your product then ask us!
Headfirst into your needs.
Get your knob selector switch with protruding head or flush with the panel.
Protruding
Head size: 24x24mm Cut-out: Ø16mm
Flush mounting
Head size: 26x26mm Cut-out: 24x24mm
-
Compatible with Control and Annunciator Panels
This device is designed to fit into the CTR24 matrix panel.
-
Anti-rotation system
Once mounted, the device keeps its position.
Need more informations? Discover all the Technical features.
2 or 3 positions, stay put or spring return.
3 POSITIONS
-
3FStay Put
3 Positions (1-0-2), Stay Put
-
3RSpring Return
3 Positions (1-0-2), Spring Return (to 0)
2 POSITIONS
-
2FStay Put
2 Positions (1-2), Stay Put
-
2RSpring Return
2 Positions (1-2), Spring Return (2 to 1)
-
2F1Stay Put
2 Positions (0-2), Stay Put
2F: key can be removed in the left, right or any positions;
2R: key can be removed in the left position;
2F1: key can be removed in the middle, right or any position;
3F: key can be removed in the left, right, middle or any positions;
3R: key can be removed in the middle position.
Choose the position
to remove the key
Choose whether to remove the key in the middle (0), left (1), right (2), or in any position.
Choose whether to remove the key in the middle (0), left (1), right (2), or in any position.

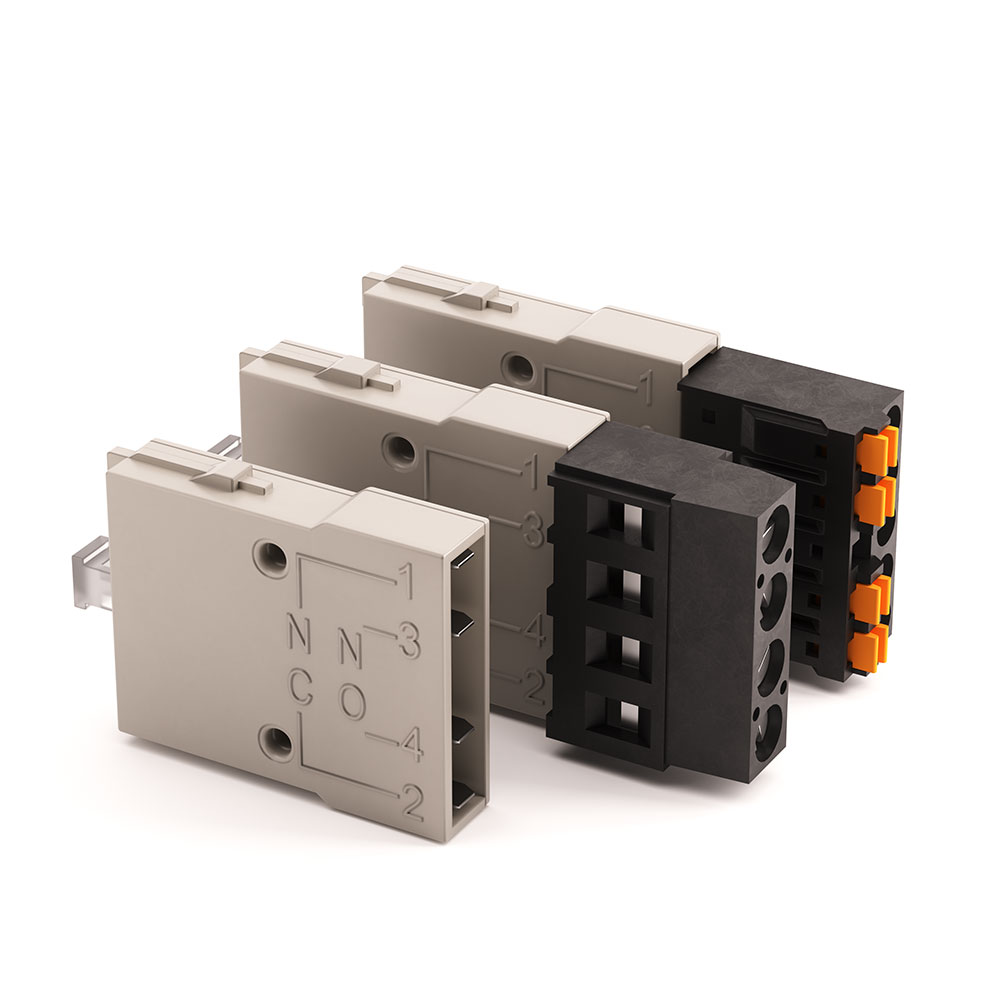

Contact block required
CD16
Contact block system
This device needs a contact block system of the same family (CD16) to work. Please refer to the corresponding section of the catalogue for the compatible combinations.
Accessories and spares
The following products can be used together with CD16 K24:
