VL8

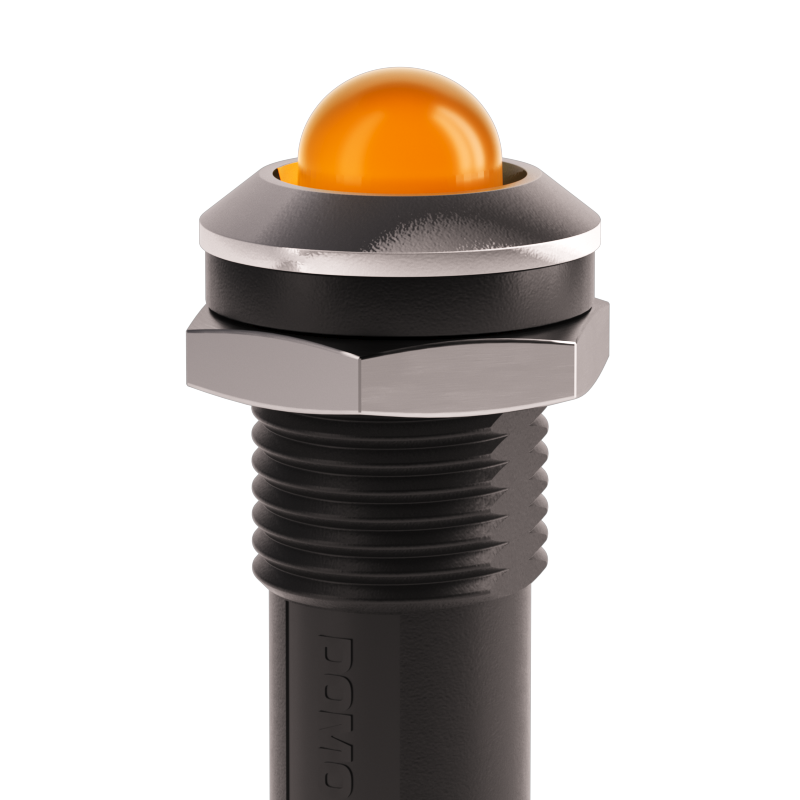

Small LED indicators with a Ø10mm concave or convex head shape
VL8 BASE CODE
Need a quotation? Configure your product then ask us!
Headfirst into your needs.
Get your LED indicator with a convex or concave head shape, depending on your demands.
Convex
Head size: Ø10mm Cut-out: Ø8mm
Concave
Head size: Ø10mm Cut-out: Ø8mm
Small, but bigger inside.
The DOMO VL series (Small LED Indicators), despite its small size, includes many features found in larger product families, ensuring protection and quality to the device.
The VL8 model features a Ø10mm illuminated LED concave or convex head and is available with a choice of
· six colors
· Bicolor solution (white when turned off, red or green when turned on).
IP40
An object probe of 1.0 mm in diameter shall not penetrate at all, and shall have adequate clearance. No protection against liquids. EN 60529
Choose the power supply value that's right for you.*
*And if it's not in the catalogue, try to ask for it.
-
6 VAC/DC
-
12 VAC/DC10÷15V
-
24 VAC/DC13÷28V
-
48 VAC/DC15÷50V
-
130 VAC/DC70÷140V
-
230 VAC/DC160÷240V
-
Or customizable upon request.
is not compatible with
is not compatible with
is not compatible with
is not compatible with
-
Smart PCB
Thanks to our innovative technologies, the LED indicator can be powered with both AC or DC power supply without any risk.
-
Low-voltage glow protection
To avoid the risk of unexpected and random switch-ons, the device will be provided with a Zener diode that properly calibrates the minimum voltage required to switch on the LED Indicator.
-
RGB LED technology
Need more informations? Discover all the Technical features.
Easy, fast, connected.
Connecting and disconnecting is as simple as it gets: no complex tools, no second-guessing, just a satisfying click that you can trust every time. Faston connectors lock into place with a reassuring grip, ensuring they stay connected through vibration and motion.
-
Faston terminals
Do you want to know how to connect it? Find the installation manual and other useful informations in the Library
The secret of all this condensed power:
-
4 layers PCB
The state of the art of our technological research allows us to insert into this device an SMD equipped with a 4 layers PCB.
Wait!
...want even more?
You can enhance your LED indicator with the optional features you prefer.
-
Tropicalization
Enjoy a longer durability: a protective layer covers the whole circuit preventing the potential damages that may occour in dusty, saline, humid and oxidizing environments.
-
Flying leads
Don’t waste your time with cabling: we can cable wires as long and thick as you need and mount them on the connection terminal you choose.
