P large
Flat display LED indicators 22/48
P22/48 BASE CODE
Need a quotation? Configure your product then ask us!
Headfirst into your needs.
Get your LED indicator with a round or square head shape, round or square display.
Protruding
Round head
Round display
Protruding
Square head
Round display
Protruding
Square head
Square display
The largest P model up to six colours.
DOMO P series (Flat display LED indicators) is our classic flat pilot light.

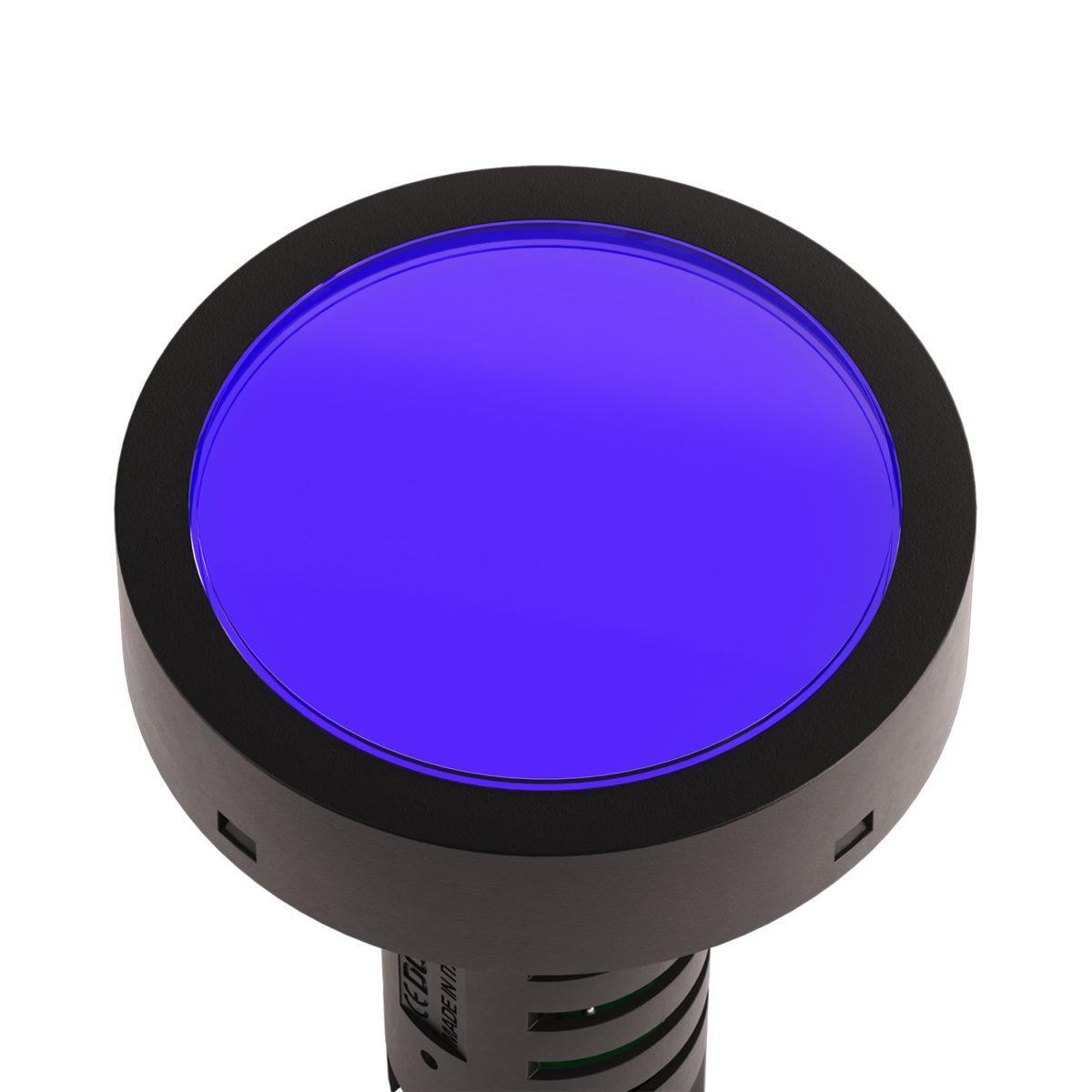

The P LARGE model is available with a choice of six colors with colored lens.
LED cluster light
The presence of 6 LEDs inside spreads an intense and bright colored light evenly diffused.
IP54
Ingress of dust is not totally prevented, but dust shall not penetrate in a sufficient quantity to interfere with satisfactory operation of the apparatus or to impair safety. Water splashed against the enclosure from any direction shall have no harmful effects. EN 60529
Choose the power supply value that's right for you.*
*And if it's not in the catalogue, try to ask for it.
-
24 VAC/DC13÷30V
-
48 VAC/DC15÷60V
-
130 VAC/DC70÷150V
-
230 VAC/DC160÷250V
-
Or customizable upon request.
-
Smart PCB
Thanks to our innovative technologies, the LED indicator can be powered with both AC or DC power supply without any risk.
-
Backfeed protection
A built-in protection diode absorbs any incidental excess current to avoid reverse feeding, minimizing the risk of LEDs unexpected lighting and hazards to the electrical grid equipment.
-
Low-voltage glow protection
To avoid the risk of unexpected and random switch-ons, the device will be provided with a Zener diode that properly calibrates the minimum voltage required to switch on the LED Indicator.
Need more informations? Discover all the Technical features.
The freedom to get the right connections.
Classic Faston and Screw terminals or new Plug-in screw and Plug-in spring terminals: four different options to provide customized possibilities to meet your needs.
-
Faston terminals
-
Screw connection with tension sleeve
-
Screw connection with tension sleeve on pluggable terminal blocks
-
Push-in spring connection on pluggable terminal blocks
Do you want to know how to connect it? Find the installation manual and other useful informations in the Library
The secret of all this condensed power:
-
4 layers PCB
The state of the art of our technological research allows us to insert into this device an SMD equipped with a 4 layers PCB.
Wait!
...want even more?
You can enhance your LED indicator with the optional features you prefer.
-
Built-in lamp test facility
A built-in circuit provided with specific diodes allows to test the LEDs functionality with no need of external tools for cabling, no extra work, no extra money and no extra space.
-
Tropicalization
Enjoy a longer durability: a protective layer covers the whole circuit preventing the potential damages that may occour in dusty, saline, humid and oxidizing environments.
-
Flying leads
Don’t waste your time with cabling: we can cable wires as long and thick as you need and mount them on the connection terminal you choose.
Accessories and spares
The following products can be used together with P large:
