DX22 K

Key Selector Switches (22/30)

DX22 K

Positions

2 POSITIONS

  • Stay Put
    Stay Put

    2 Positions (1-2), Stay Put

    2Fis not compatible withM

  • Spring Return
    Spring Return

    2 Positions (1-2), Spring Return (2 to 1)

    2Ris not compatible withRMA

3 POSITIONS

  • Stay Put
    Stay Put

    3 Positions (1-0-2), Stay Put

  • Spring Return
    Spring Return

    3 Positions (1-0-2), Spring Return (to 0)

    3Ris not compatible withLRA

Key Removal

Choose the position
to remove the key

Choose whether to remove the key in the middle (0), left (1), right (2), or in any position.

Choose the position<br />
to remove the key

Enhance your
indicator
with the options
you prefer.

  • Chromium plated
  • Chromium plated

    Chromium plated

    Chromium plated

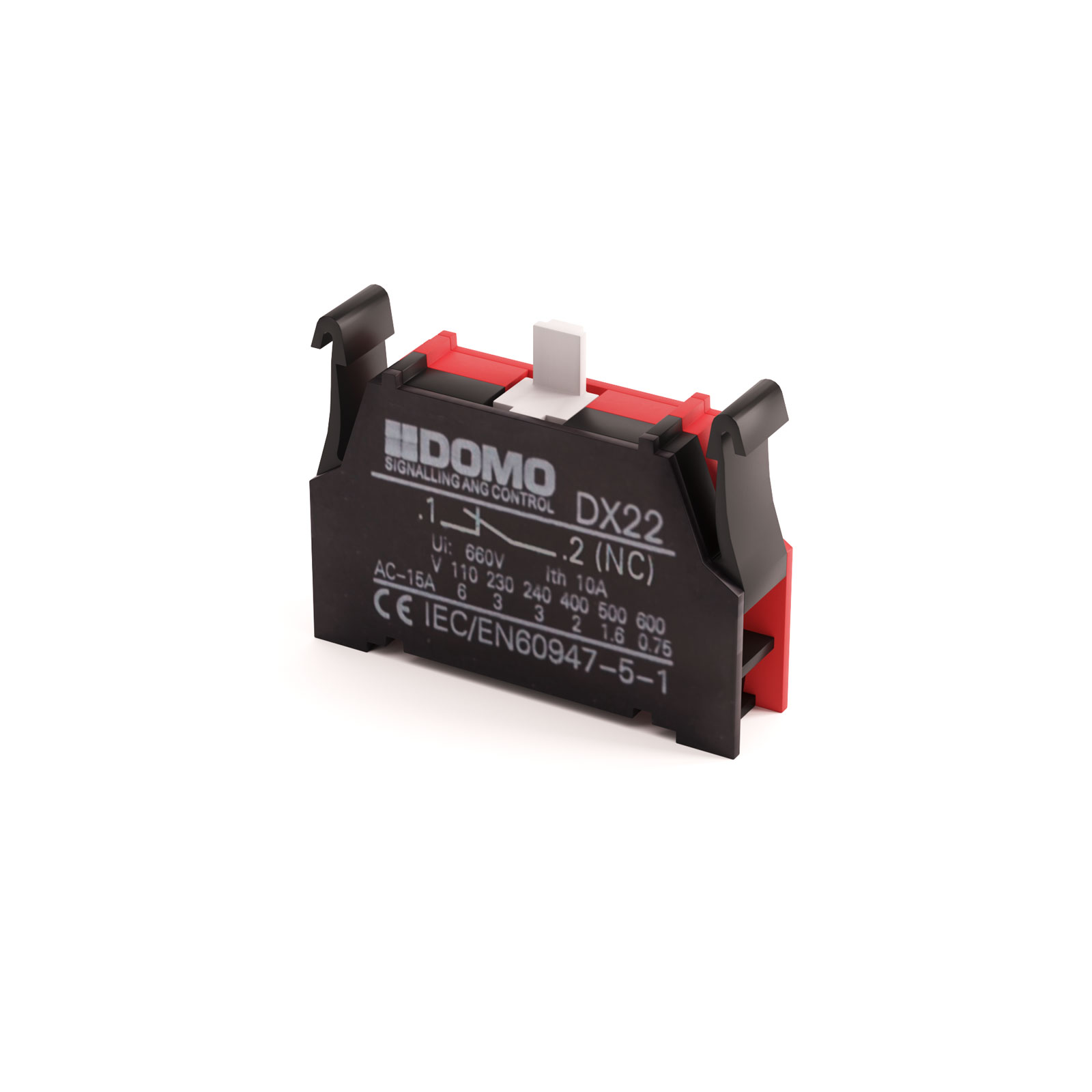

Contact block required

DX22

DX22

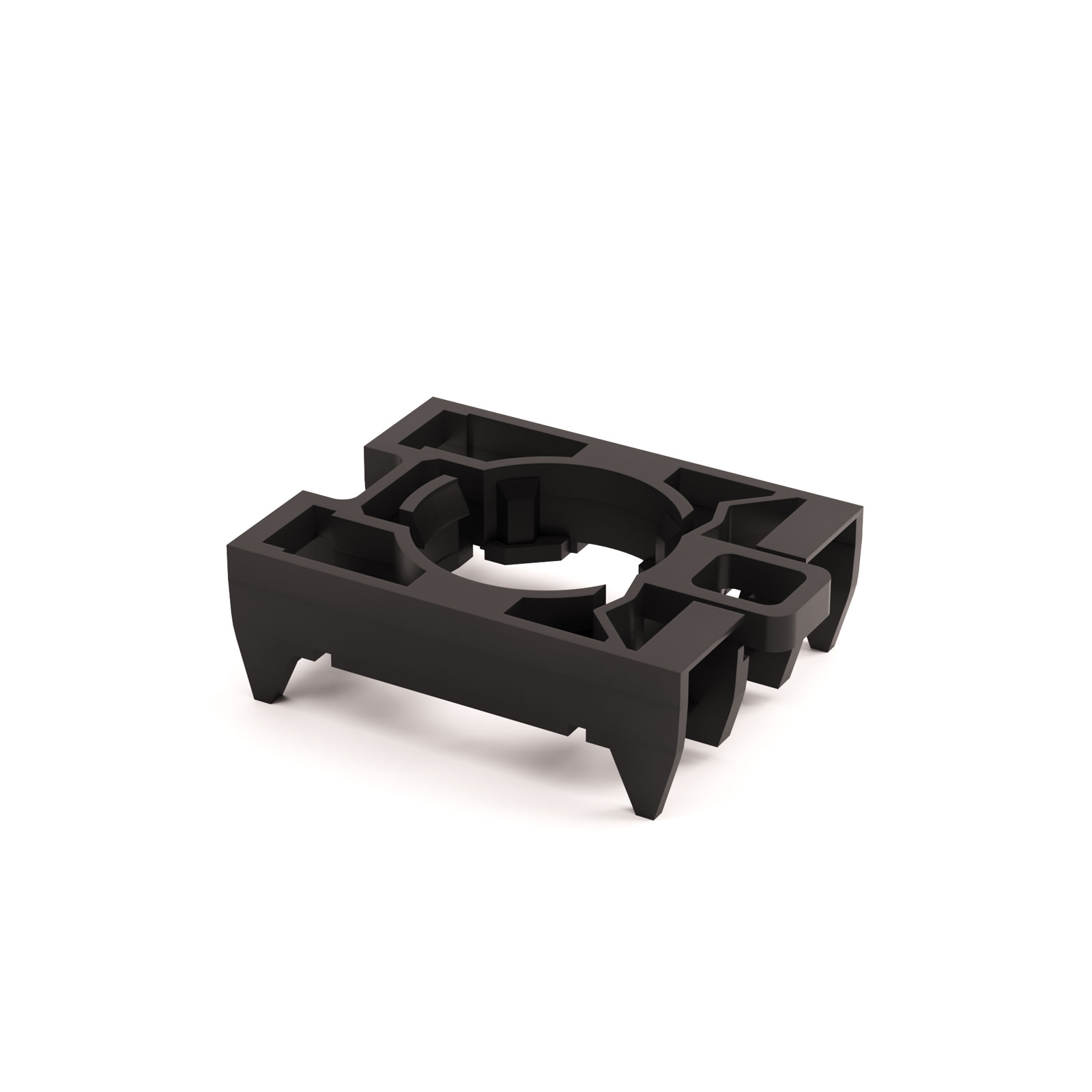

Contact block system

This device needs a contact block system of the same family (DX22) to work. Please refer to the corresponding section of the catalogue for the compatible combinations.

Discover it in the catalogue

Specific features

Some more technical info for you.

  • Once mounted, the device keeps its position.

    Anti-rotation system

    Once mounted, the device keeps its position.

  • Protected against solid objects over 1.0mm in diameter.
No protection against liquids.

    IP40

    Protected against solid objects over 1.0mm in diameter. No protection against liquids.

Go to Technical Features
