Technical Features

• Series

  DX22 EPB



• Base code

  DX22 EPB40


• Operation

  •
    Momentary
  •
    Twist to release
  •
    Pull to release
  •
    Key to release

• Contact block system

  •
    1NC
  •
    2NC
  •
    3NC
  •
    1NO
  •
    2NO
  •
    3NO
  •
    1NC+1NO
  •
    1NC+2NO
  •
    1NC+3NO
  •
    2NC+1NO
  •
    2NC+2NO
  •
    2NC+3NO
  •
    3NC+1NO
  •
    3NC+2NO
  •
    3NC+3NO

• Specific features

  •

    Anti-rotation system

    Once mounted, the device keeps its position.

• Degree of protection

  •
    IP40

• Ambient air temperature

  •

    -20°C
    +70 °C

    For storage
    -20 ... +70°C

  •

    -5 °C
    +55 °C

    For operation
    -5 ... +55°C

• Humidity

  •

    35 ... 85%RH

• Materials

  •
    PA66

• Operating travel

  • MOMENTARY

    • 2.5 mm (NO changing electrical state)
    • 2.5 mm (NC changing electrical state)
    • 5.1 mm (total travel)

• Device presentation

  • Monolithic product

• Vibration resistance

  • +/- 3 mm (f= 2...500 Hz)

    conforming to IEC 60068-2-6

  • 5gn (f = 2...500 Hz)

    conforming to IEC 60068-2-6

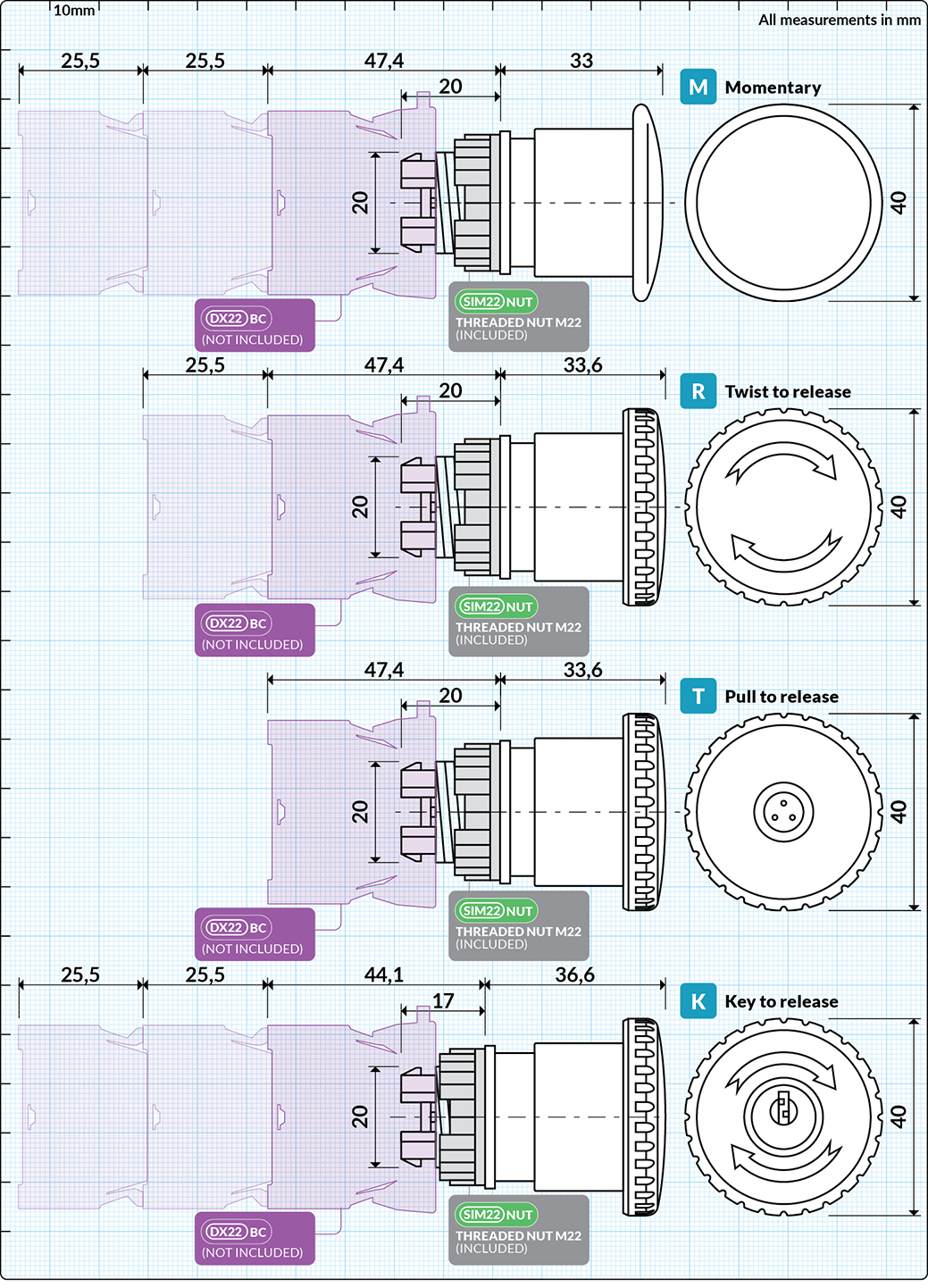

• Dimensions



• • REACh free of SVHC

  • Mercury free

  • Toxic heavy metal free

• Compliance

  Directive 2006/95/EC Low Voltage
  Directive 2004/108/EC Electromagnetic Compatibility
  Directive 2011/65/EC RhOS
  Directive 2006/42/EC Machinery

  Conformity to standards

  JIS C 852 / JIS C8201-5-1 / UL 508 / JIS C8201-1 / CSA C22.2 No 14 / EN/IEC 60947-1 / EN/IEC 60947-5-1 / EN/ISO 13850 / EN/IEC 60947-5-5 / EN/IEC 60204-1

  Warranty

  Warranty period is eighteen (18) months and starts from the goods delivery date.

  Customs Code

  8536 5011
