Technical Features

• Series

  DX22



• Base code

  DX22 BC


• Contact block system

  •
    1NC
  •
    2NC
  •
    3NC
  •
    1NO
  •
    2NO
  •
    3NO
  •
    1NC+1NO
  •
    1NC+2NO
  •
    1NC+3NO
  •
    2NC+1NO
  •
    2NC+2NO
  •
    2NC+3NO
  •
    3NC+1NO
  •
    3NC+2NO
  •
    3NC+3NO
  •
    1NC+EPL
  •
    2NC+EPL
  •
    3NC+EPL
  •
    1NO+EPL
  •
    2NO+EPL
  •
    3NO+EPL
  •
    1NC+1NO+EPL
  •
    1NC+2NO+EPL
  •
    1NC+3NO+EPL
  •
    2NC+1NO+EPL
  •
    2NC+2NO+EPL
  •
    2NC+3NO+EPL
  •
    3NC+1NO+EPL
  •
    3NC+2NO+EPL
  •
    3NC+3NO+EPL

• Connection type

  •
    Screw connection with tension sleeve

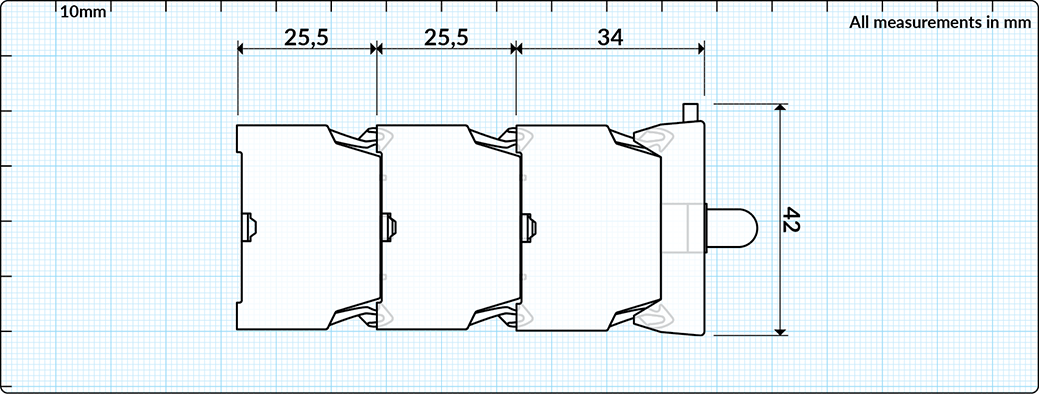

• Dimensions



• • REACh free of SVHC

  • Mercury free

  • Toxic heavy metal free

• Compliance

  Directive 2006/95/EC Low Voltage
  Directive 2004/108/EC Electromagnetic Compatibility
  Directive 2011/65/EC RhOS
  Directive 2006/42/EC Machinery

  Conformity to standards

  EN 60947.5.1 / EN 60073 / EN 60529 / EN 60068-2-6 / EN 60204.1 / EN ISO 7731 / EN 981 / IEC 536

  Warranty

  Warranty period is eighteen (18) months and starts from the goods delivery date.

  Customs Code

  8536 5011
