CX regular
Full lens LED indicators 22/30
CX22/30 BASE CODE
Need a quotation? Configure your product then ask us!
An entire lens illuminated by a full range of colors.

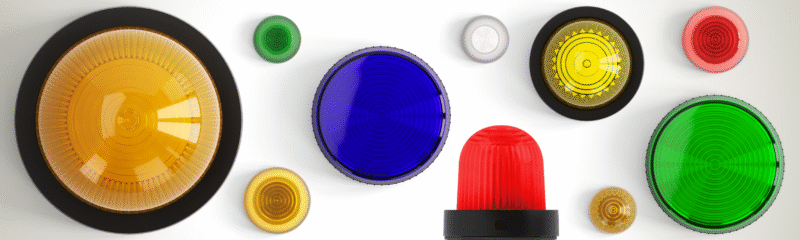

DOMO CX series (Full lens LED indicators) features a Fresnel lens that covers the whole head diffusing and maximizing the light emitted.

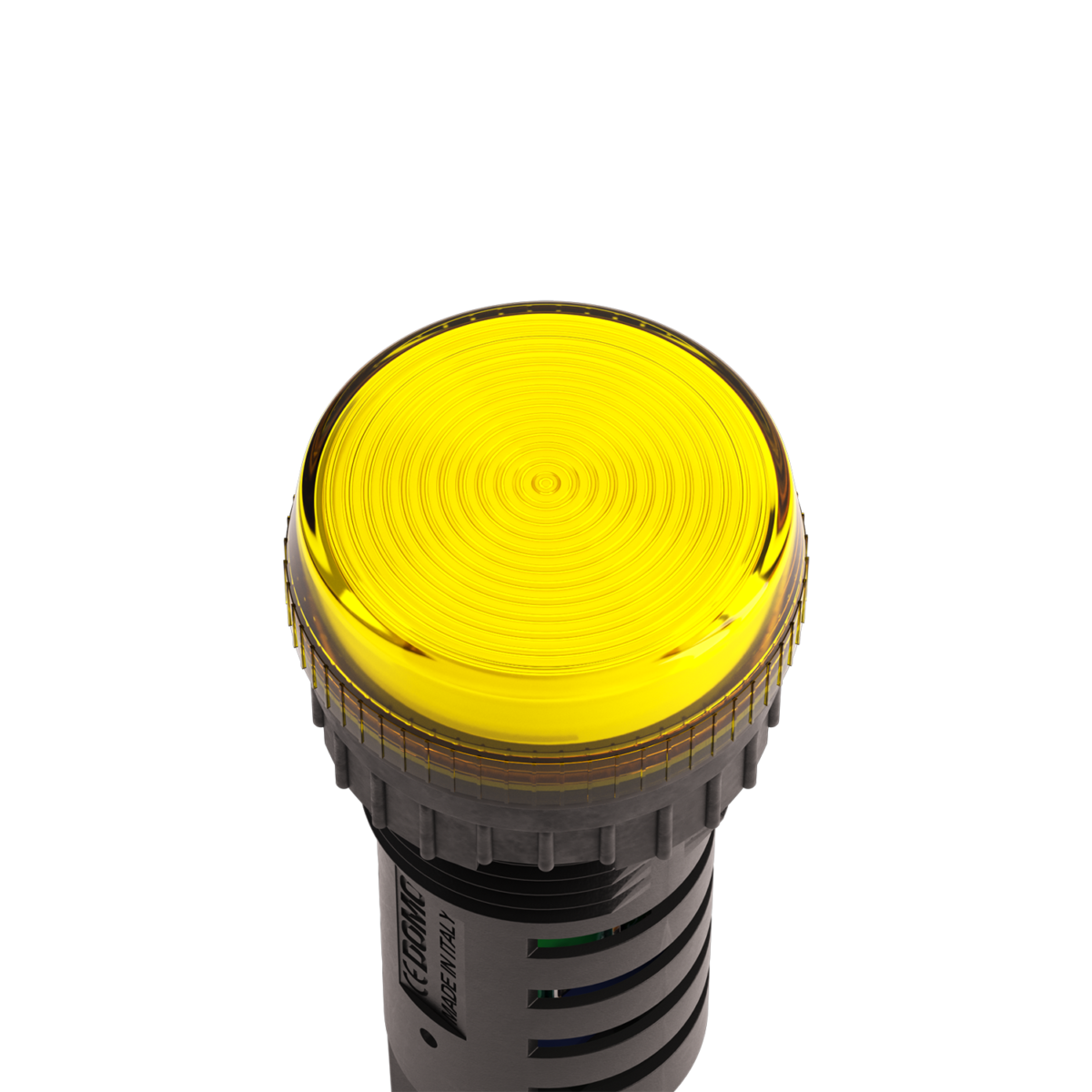

The CX REGULAR model is available with:
• a choice of six colors
• the new MultiColor option: equipped with an RGB LED, it can achieve up to 6 different colors based on the wiring.
The Fresnel lens can be easily unscrewed and replaced. This is very useful if the version with interchangeable LED is requested.
In addition, it is possible to request that the supplied lens be smooth instead of Fresnel.
LED cluster light
The presence of 2 LEDs inside spreads an intense and bright colored light evenly diffused.
Pure green
Green LEDs produce a pure green light, enhancing performance and visibility.
Fresnel lens
The whole head of the device is a Fresnel lens.
IP65
No ingress of dust. Water projected in jets against the enclosure from any direction shall have no harmful effects. EN 60529
IP67
(On request as an extra feature) No ingress of dust. Ingress of water in quantities causing harmful effects shall be prevented when the enclosure is immersed in 1m of water for 30 minutes. EN 60529
Choose the power supply value that's right for you.*
*And if it's not in the catalogue, try to ask for it.
-
24 VAC/DC13÷30V
-
48 VAC/DC15÷60V
-
130 VAC/DC70÷150V
-
230 VAC/DC160÷250V
-
Or customizable upon request.
...or choose not to have to think about it at all!
As if the possibility of choosing the voltage value suited to your needs wasn’t enough, the brand new MultiVoltage solution leaves no room for doubts: you won't have to worry about how to power it anymore, because light will always turn on at full intensity!
MultiVoltage
24÷240Vac
24÷300Vdc
is not compatible with
is not compatible with
is not compatible with
is not compatible with
is not compatible with
-
Built-in rectifier bridge
Thanks to the built-in rectifier bridge, the device can be powered with both AC or DC power supply without any error.
-
Backfeed protection
A built-in protection diode absorbs any incidental excess current to avoid reverse feeding, minimizing the risk of LEDs unexpected lighting and hazards to the electrical grid equipment.
-
Low-voltage glow protection
To avoid the risk of unexpected and random switch-ons, the device will be provided with a Zener diode that properly calibrates the minimum voltage required to switch on the LED Indicator.
Need more informations? Discover all the Technical features.
The freedom to get the right connections.
Classic Faston and Screw terminals or new Plug-in screw and Plug-in spring terminals: four different options to provide customized possibilities to meet your needs.
-
Faston terminals
-
Screw connection with tension sleeve
is not compatible with
-
Screw connection with tension sleeve on pluggable terminal blocks
-
Push-in spring connection on pluggable terminal blocks
Do you want to know how to connect it? Find the installation manual and other useful informations in the Library
The secret of all this condensed power:
-
2 layers PCB
The state of the art of our technological research allows us to insert into this device an SMD equipped with a 2 layers PCB.
-
Built-in lamp test facility
A built-in circuit provided with specific diodes allows to test the LEDs functionality with no need of external tools for cabling, no extra work, no extra money and no extra space.
is not compatible with -
Built-in double lamp test facility
A built-in circuit provided with specific diodes allows to test the LEDs functionality with no need of external tools for cabling, no extra work, no extra money and no extra space. "Double" means that the device is equipped with 2 LT and 2 COM- connectors that come useful if you plan to connect your devices in series, so that you can test them all toghether.
is not compatible with -
Tropicalization
Enjoy a longer durability: a protective layer covers the whole circuit preventing the potential damages that may occour in dusty, saline, humid and oxidizing environments.
-
Smooth lens
The device will be provided with a smooth lens instead of the default Fresnel lens.
-
IP67
No ingress of dust. Ingress of water in quantities causing harmful effects shall be prevented when the enclosure is immersed in 1m of water for 30 minutes.
-
Interchangeable LED
Capability to replace the internal LED.
is not compatible with
Accessories and spares
The following products can be used together with CX regular:
