Technical Features

• Series

  CD16



• Base code

  CD16 PR24


• Head

  •

    PROTRUDING /

    Head size: 24x24mm
    Cut-out: Ø16mm

• Operation

  •
    Momentary
  •
    Latching

• Contact block system

  •
    1NO+1NC
  •
    2NO+2NC
  •
    3NO+3NC
  •
    1NO+1NC+LED
  •
    2NO+2NC+LED

• Colors

  OPAQUE

  •
    Opaque Red
  •
    Opaque Green
  •
    Opaque Yellow
  •
    Opaque Blue
  •
    Opaque White
  •
    Opaque Black

  TRANSPARENT (can be illuminated)

  •
    Transparent Red
  •
    Transparent Green
  •
    Transparent Yellow
  •
    Transparent Amber
  •
    Transparent Blue
  •
    Transparent White

• Specific features

  •

    Anti-rotation system

    Once mounted, the device keeps its position.

• Degree of protection

  •
    IP40

• Ambient air temperature

  •

    -40°C
    +70 °C

    For storage
    -40 ... +70°C

  •

    -20 °C
    +70 °C

    For operation
    -20 ... +70°C

• Humidity

  •

    35 ... 85%RH

• Materials

  •
    Polycarbonate (PC)

• Operating travel

  • 4,00mm (total travel)

  • 3,15mm (NO changing electrical state)

  • 2,15mm (NC changing electrical state)

• Device presentation

  • Monolithic product

• Vibration resistance

  • 5gn (f = 2...500 Hz)

    conforming to IEC 60068-2-6

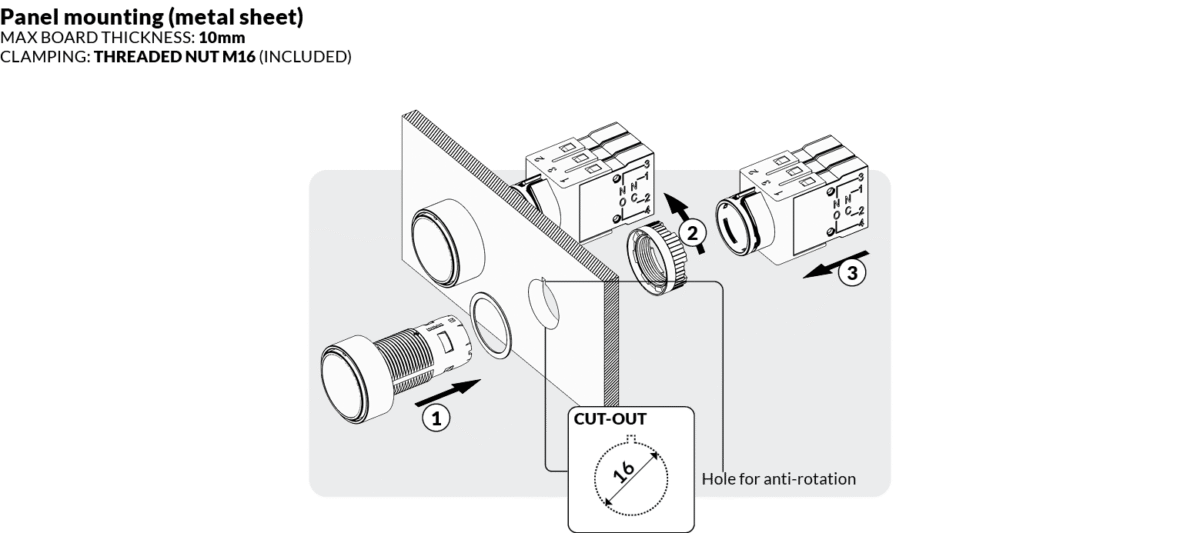

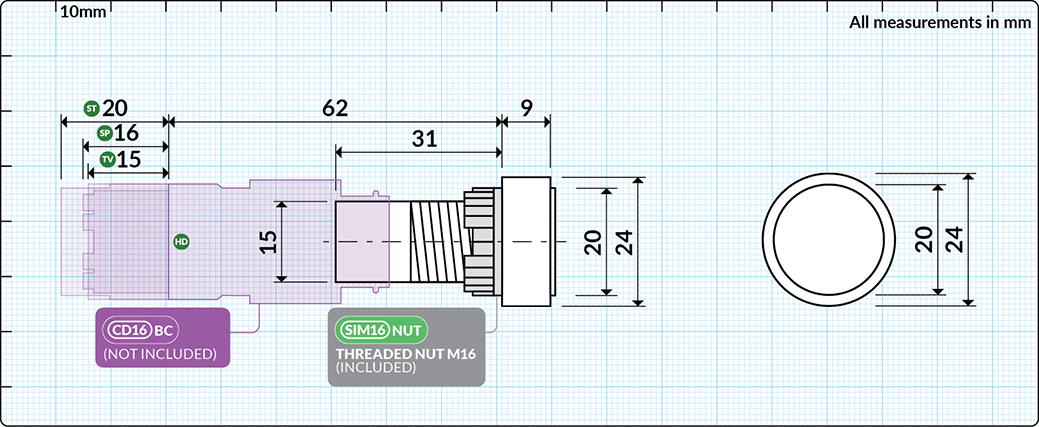

• Dimensions



• • REACh free of SVHC

  • Mercury free

  • Toxic heavy metal free

• Compliance

  Directive 2006/95/EC Low Voltage
  Directive 2004/108/EC Electromagnetic compatibility
  Directive 2011/65/EC RhOS
  Directive 2006/42/EC Machinery
  Directive 2015/863/UE

  Conformity to standards

  EN 60947.5.1 / EN 60073 / EN 60529 / EN 60068-2-6 / EN 60204.1 / EN ISO 7731 / EN 981 / IEC 536

  Warranty

  Warranty period is eighteen (18) months and starts from the goods delivery date.

  Customs Code

  8536 5011
