Technical Features

Download PDF

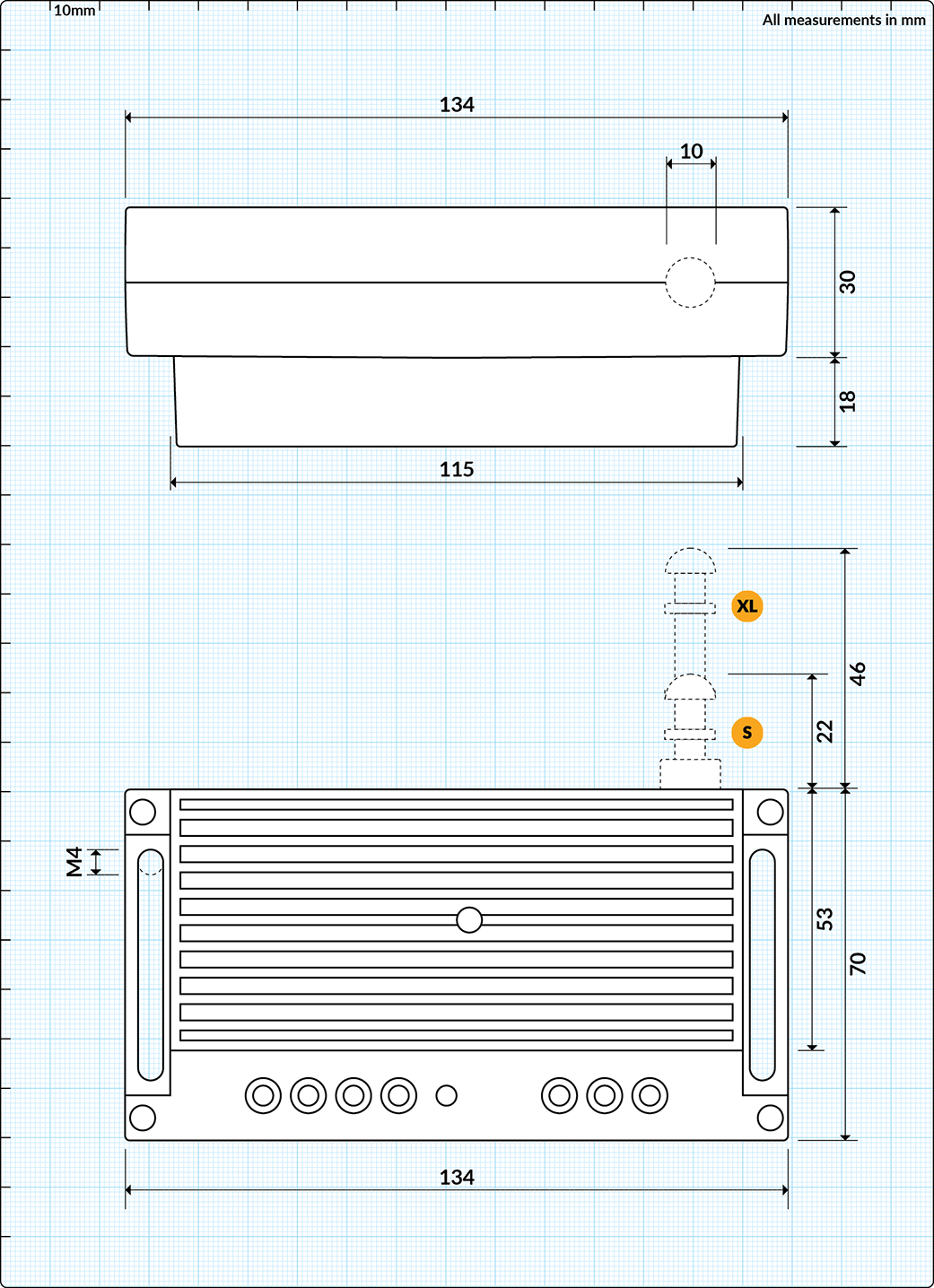

  • Series

    Ai1
    Ai1 LED
  • Limit Interlock Switch

    • Without limit and interlock switch
      Without limit and interlock switch
    • Standard lenght
      Standard lenght
    • Extra long
      Extra long
  • Power supply voltage

    • 3 Phase Voltage 220÷500V AC 50-60Hz
      3 Phase Voltage 220÷500V AC 50-60Hz
    • 1 Phase Voltage 24÷230V AC 50-60Hz
      1 Phase Voltage 24÷230V AC 50-60Hz
  • Specific features

    • High Intensity Light
      High Intensity Light

      LED cluster light that illuminates the inside of the electrical panel.

      LIGHT INTENSITY
      • 10W 900lm
      ELECTRICAL ABSORPTION
      • 2W
      NUMBER OF LEDS
      • 48
      LIGHT CONSUMPTION
      • 80mA
      LIGHT COLOR
      • White

  • Protective treatment

    • Standard version: “TC”

  • Connection terminals

    • Screw M3

  • [Ui] rated insulation voltage

    • 690 Vac (pollution degree 3)

      conforming to EN/IEC 60947-1

  • Degree of protection

    • <b>IP20</b>
      IP20
  • Service life

    • <b>>100.000h at 25°C</b>
      >100.000h at 25°C
  • Ambient air temperature

    • Storage Temperature

      -40°C
      +70°C

      For storage
      -40... +70°C

    • Operation Temperature

      -20°C
      +70°C

      For operation
      -20... +70°C

  • Materials

    • <b>Polycarbonate (PC)</b>
      Polycarbonate (PC)
  • PCB

    • <b>Light: 2 Layers PCB</b>
      Light: 2 Layers PCB
  • Operating travel

    • MOMENTARY
      • 2.5 mm (NO changing electrical state)
      • 5.1 mm (total travel)
  • Bulb base

    • Integral LED

  • Device presentation

    • Monolithic product

  • Vibration resistance

    • 5gn (f = 2...500 Hz)

      conforming to IEC 60068-2-6

  • Electromagnetic compatibility

    • Disturbing field emission class B

      conforming to EN 55011

    • REACh free of SVHC

    • Mercury free

    • Toxic heavy metal free

  • Compliance

    Directive 2006/95/EC Low Voltage
    Directive 2004/108/EC Electromagnetic Compatibility
    Directive 2011/65/EC RhOS
    Directive 2006/42/EC Machinery

    Conformity to standards

    EN 60947.5.1 / EN 60073 / EN 60529 / EN 60068-2-6 / EN 60204.1 / EN ISO 7731 / EN 981 / IEC 536

    Warranty

    Warranty period is eighteen (18) months and starts from the goods delivery date.

    Customs Code

    8536 5080
