Technical Features

  • Series

    T
    T5,5K
  • Colors

    MONOCOLOR

    Transparent lens/Colored LED

    • Transparent lens/Red LED
      Transparent lens/Red LED
    • Transparent lens/Green LED
      Transparent lens/Green LED
    • Transparent lens/Yellow LED
      Transparent lens/Yellow LED
    • Transparent lens/Amber LED
      Transparent lens/Amber LED
    • Transparent lens/Blue LED
      Transparent lens/Blue LED
    • Transparent lens/White LED
      Transparent lens/White LED
  • Power supply voltage

    • 24V AC/DC
      24V AC/DC
    • 48V AC/DC
      48V AC/DC
  • Specific features

    • Low Voltage Glow Protection
      Low Voltage Glow Protection

      A Zener diode properly calibrates the minimum voltage required to switch on the LED Indicator.

  • Degree of protection

    • <b>IP20</b>
      IP20
  • Service life

    • <b>>100.000h at 25°C</b>
      >100.000h at 25°C
  • Ambient air temperature

    • Storage Temperature

      -40°C
      +70°C

      For storage
      -40... +70°C

    • Operation Temperature

      -20°C
      +70°C

      For operation
      -20... +70°C

  • Materials

    • <b>Polycarbonate (PC)</b>
      Polycarbonate (PC)
    • <b>Nickel (Ni)</b>
      Nickel (Ni)

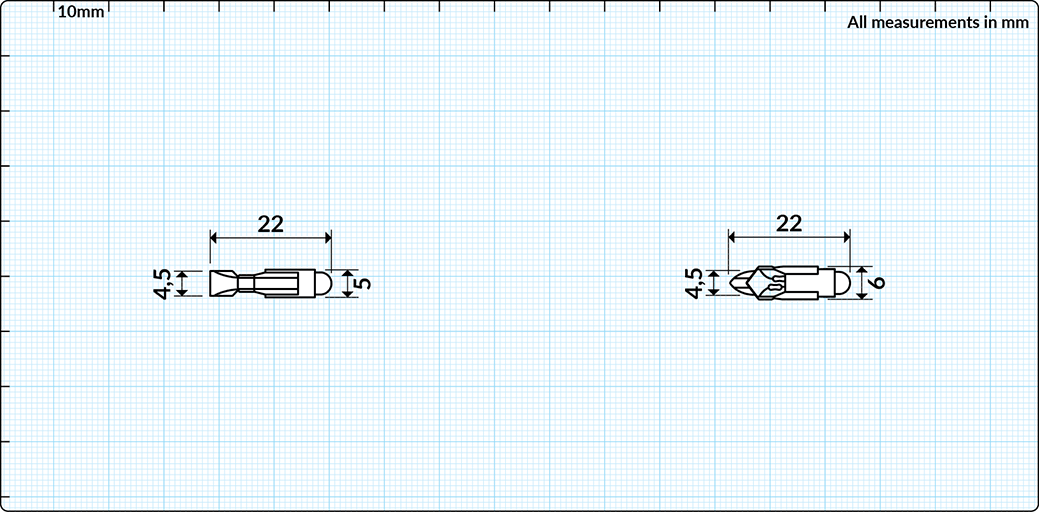

  • Bulb base

    • T5,5K

  • Device presentation

    • Monolithic product

  • Vibration resistance

    • 5gn (f = 2...500 Hz)

      conforming to IEC 60068-2-6

  • Electromagnetic compatibility

    • Disturbing field emission class B

      conforming to EN 55011

    • REACh free of SVHC

    • Mercury free

    • Toxic heavy metal free

  • Compliance

    Directive 2006/95/EC Low Voltage
    Directive 2004/108/EC Electromagnetic Compatibility
    Directive 2011/65/EC RhOS
    Directive 2006/42/EC Machinery

    Conformity to standards

    EN 60947.5.1 / EN 60073 / EN 60529 / EN 60068-2-6 / EN 60204.1 / EN ISO 7731 / EN 981 / IEC 536

    Warranty

    Warranty period is eighteen (18) months and starts from the goods delivery date.

    Customs Code

    8531 807000
