Technical features

• Series

  SH22



• Base code

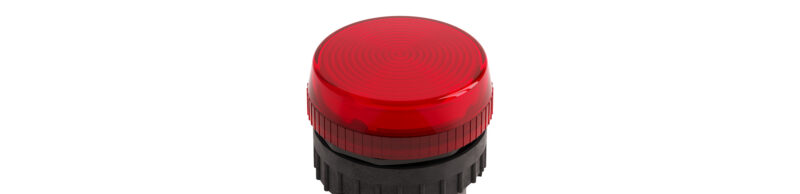

  SH22 PL30


• Colors

  MONOCOLOR

  Colored lens/Colored LED

  •
    Red lens, Red LED
  •
    Green lens, Green LED
  •
    Yellow lens, Yellow LED
  •
    Amber lens, Amber LED
  •
    Blue lens, Blue LED
  •
    White lens, White LED

• Contact block system

  •
    EPL

• Service life

  •
    >100.000h at 25°C

• Ambient air temperature

  •

    -25°C
    +55 °C

    For storage
    -25 ... +55°C

  •

    -5 °C
    +55 °C

    For operation
    -5 ... +55°C

• Materials

  •
    ABS
  •
    PA66

• Bulb base

  • Interchangeable LED

• Device presentation

  • Basic element

• Vibration resistance

  • 5gn (f = 2...500 Hz)

    conforming to IEC 60068-2-6

• Dimensions

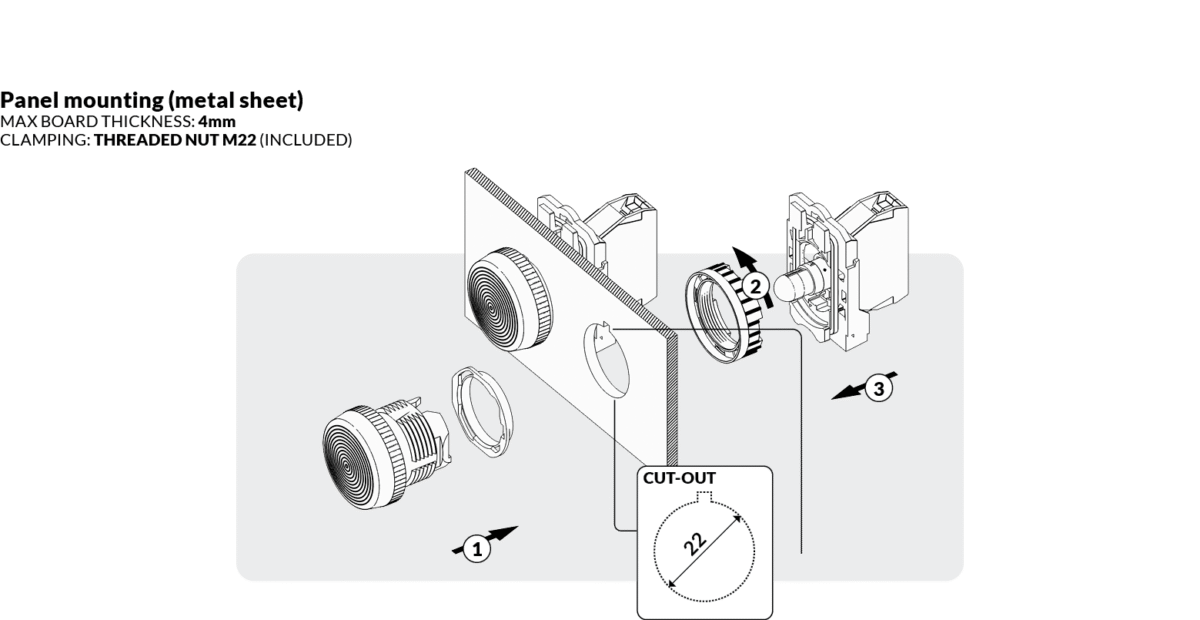

• Device Mounting



• • REACh free of SVHC

  • Mercury free

  • Toxic heavy metal free

• Compliance

  Directive 2006/95/EC Low Voltage
  Directive 2004/108/EC Electromagnetic Compatibility
  Directive 2011/65/EC RhOS
  Directive 2006/42/EC Machinery

  Conformity to standards

  EN/IEC 60947.5.1 / EN 60073 / EN 60529 / EN 60068-2-6 / EN 60204.1 / EN ISO 7731 / EN 981 / IEC 536

  Warranty

  Warranty period is eighteen (18) months and starts from the goods delivery date.

  Customs Code

  8536 5011
