Technical features
-
Series

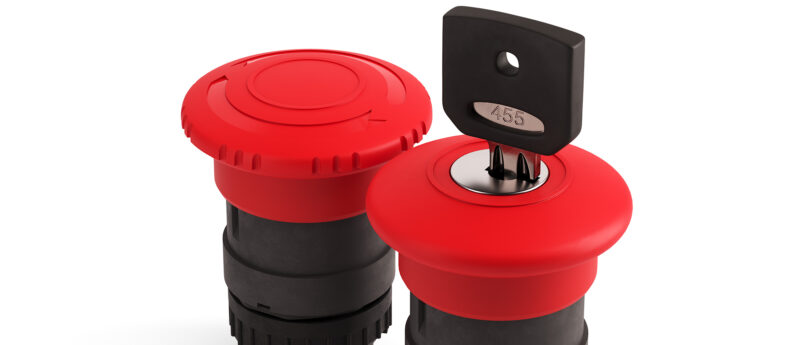

SH22 EPB
-
Base code
SH22 EPB40
-
Operation
-
Momentary -
Twist to release -
Pull to release -
Key to release
-
-
Contact block system
-
1NC -
2NC -
3NC -
1NO -
2NO -
3NO -
1NC+1NO -
1NC+2NO -
1NC+3NO -
2NC+1NO -
2NC+2NO -
2NC+3NO -
3NC+1NO -
3NC+2NO -
3NC+3NO
-
-
Specific features
-
Anti-rotation system
Once mounted, the device keeps its position.
-
-
Degree of protection
-
IP65
-
-
Mechanical durability
-
Momentary
100.000 CYCLES
Twist to release
100.000 CYCLES
Pull to release
100.000 CYCLES
Key to release
100.000 CYCLES
-
-
Ambient air temperature
-
-25°C
+55 °CFor storage
-25 ... +55°C -
-5 °C
+55 °CFor operation
-5 ... +55°C
-
-
Humidity
-
35 ... 85%RH
-
-
Materials
-
PA66
-
-
Device presentation
-
Basic element
-
-
Vibration resistance
-
+/- 3 mm (f= 2...500 Hz)
conforming to IEC 60068-2-6
-
5gn (f = 2...500 Hz)
conforming to IEC 60068-2-6
-
-

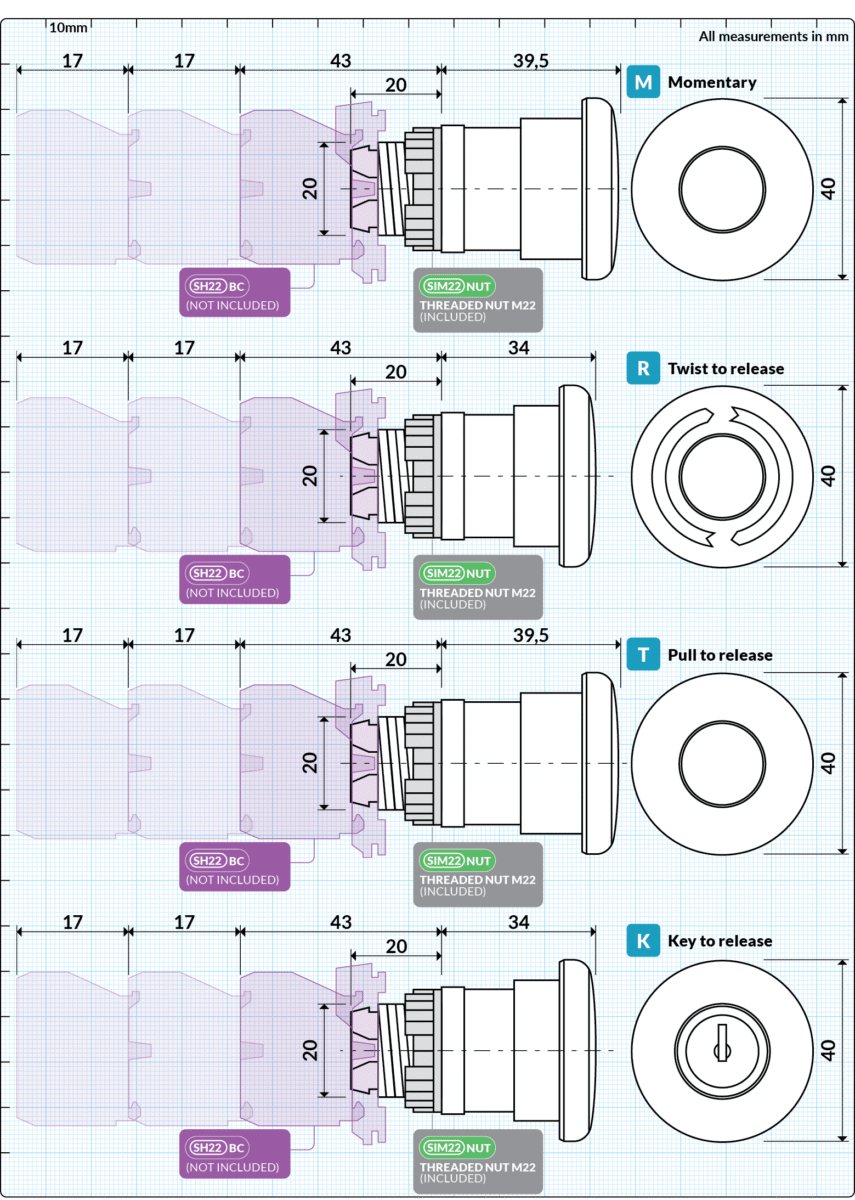

Dimensions
-

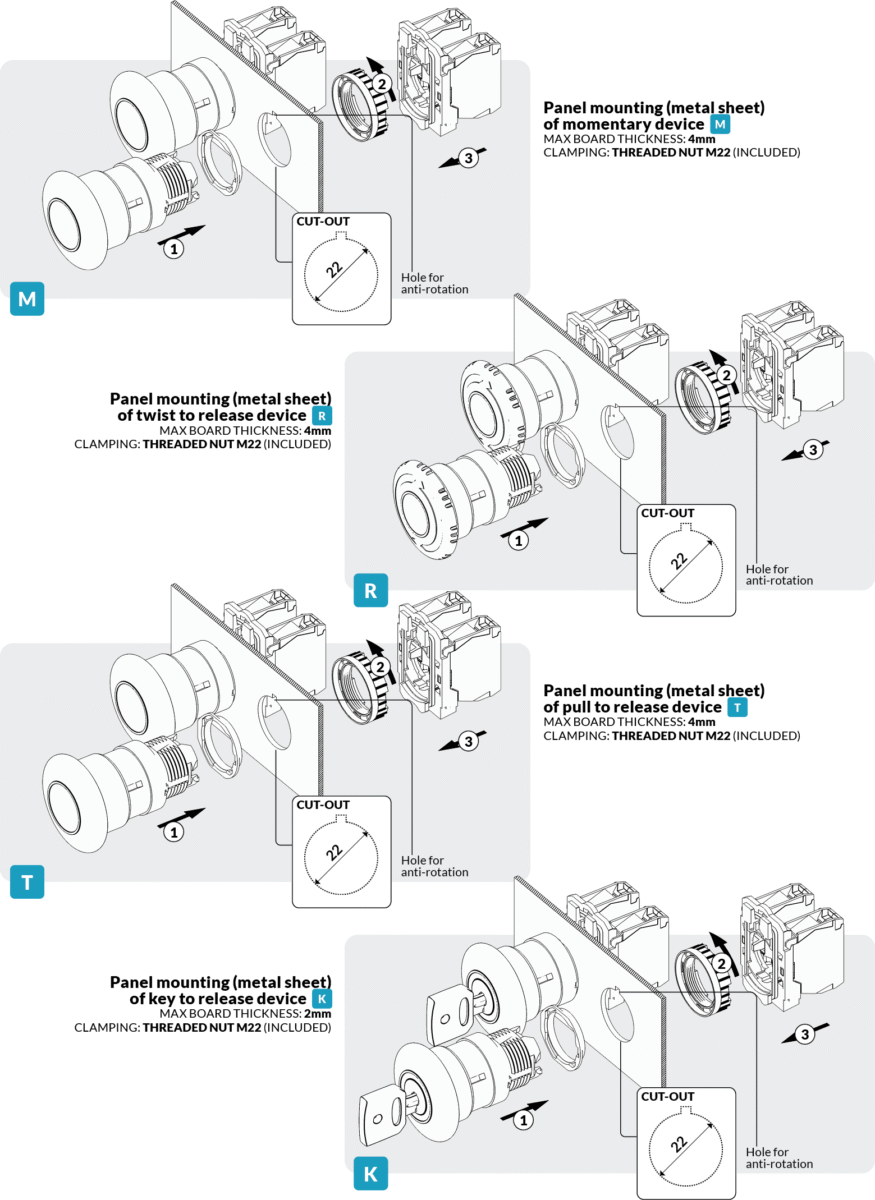

Device Mounting
-
-
REACh free of SVHC
-
Mercury free
-
Toxic heavy metal free
-
-
-
Compliance
Directive 2006/95/EC Low Voltage
Directive 2004/108/EC Electromagnetic Compatibility
Directive 2011/65/EC RhOS
Directive 2006/42/EC MachineryConformity to standards
JIS C 852 / JIS C8201-5-1 / UL 508 / JIS C8201-1 / CSA C22.2 No 14 / EN/IEC 60947-1 / EN/IEC 60947-5-1 / EN/ISO 13850 / EN/IEC / 60947-5-5 / EN/IEC 60204-1
Warranty
Warranty period is eighteen (18) months and starts from the goods delivery date.
Customs Code
8536 5011
