Technical Features

  • Series

    P
    P xs

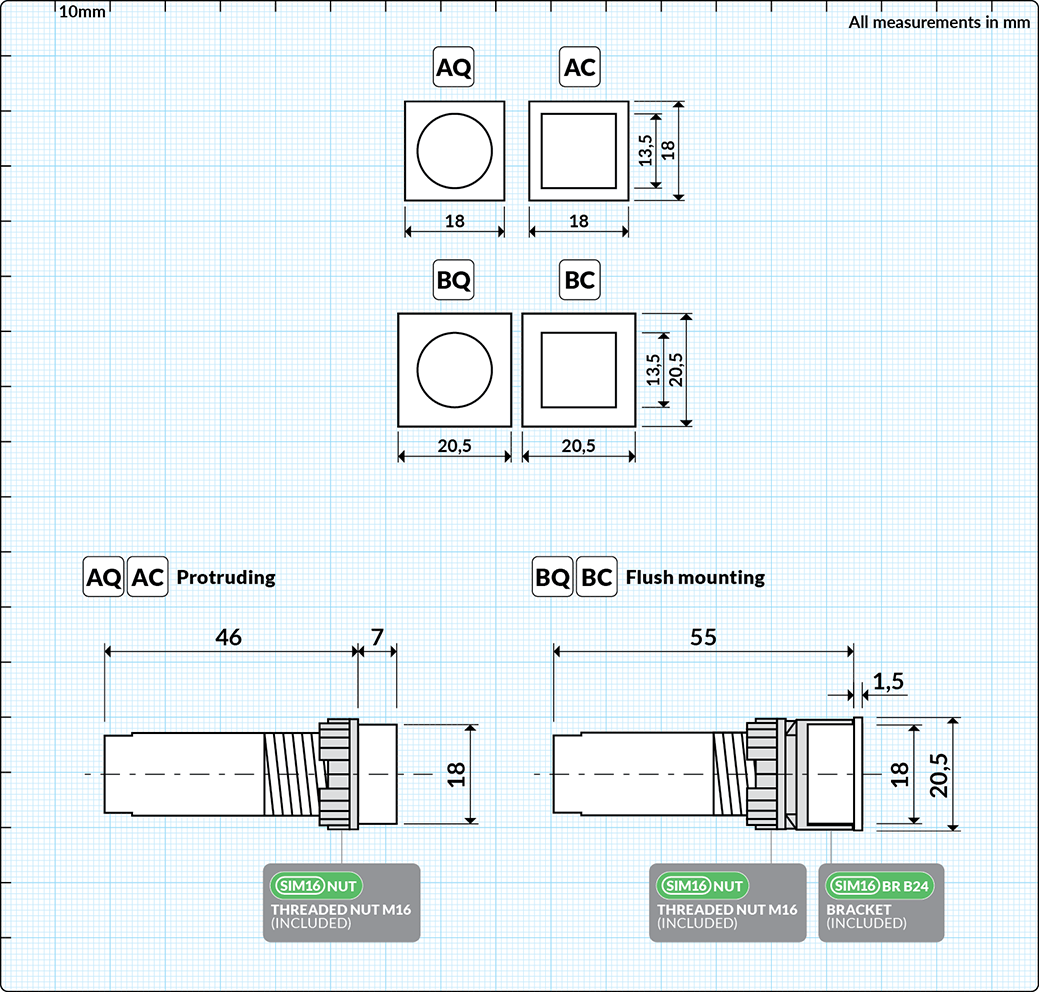

  • Size

    XS
    Cut-out: 16mm
    Head: 18mm

  • Head type

    • Protruding head
      Protruding head
    • Flush mounting head
      Flush mounting head
  • Head shape

    • Square head
      Square head, round display
    • Square head
      Square head, square display
  • Colors

    MONOCOLOR

    Colored lens/Colored LED

    • Red lens, Red LED
      Red lens, Red LED
    • Green lens, Green LED
      Green lens, Green LED
    • Yellow lens, Yellow LED
      Yellow lens, Yellow LED
    • Amber lens, Amber LED
      Amber lens, Amber LED
    • Blue lens, Blue LED
      Blue lens, Blue LED
    • White lens, White LED
      White lens, White LED
    BICOLOR

    White lens/Colored LEDs

    • White lens, Red/Green LEDs
      White lens, Red/Green LEDs 1
  • Power supply voltage

    • 24V AC/DC
      24V AC/DC
    • 48V AC/DC
      48V AC/DC
    • 130V AC/DC
      130V AC/DC
    • 230V AC/DC
      230V AC/DC
  • Connection type

    • HD
      Faston Terminals
  • Extra features

    • LT
      Built-in Lamp Test Facility 2
    • TR
      Tropicalization
    • FL
      Flying Leads
  • Specific features

    • Smart PCB
      Smart PCB

      To operate both in alternating (Vac) and direct current (Vdc).

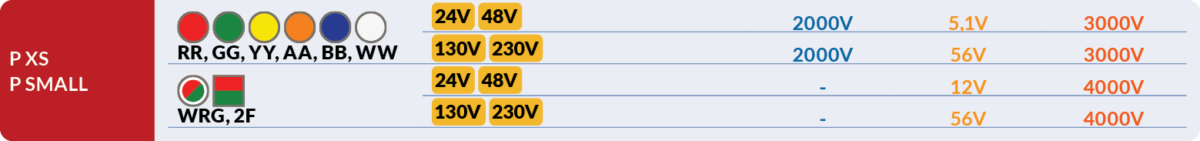

    • Backfeed Protection
      Backfeed Protection

      Built-in protection diodes protect the circuit from reverse voltage and current.

    • Low Voltage Glow Protection
      Low Voltage Glow Protection

      A Zener diode properly calibrates the minimum voltage required to switch on the LED Indicator.

  • Degree of protection

    • <b>IP54</b>
      IP54
  • Service life

    • <b>>100.000h at 25°C</b>
      >100.000h at 25°C
  • Ambient air temperature

    • Storage Temperature

      -40°C
      +70°C

      For storage
      -40... +70°C

    • Operation Temperature

      -20°C
      +70°C

      For operation
      -20... +70°C

  • Materials

    • <b>Polycarbonate (PC)</b>
      Polycarbonate (PC)
    • <b>PMMA</b>
      PMMA
  • PCB

    • <b>4 layers PCB</b>
      4 layers PCB
  • Bulb base

    • Integral LED

  • Device presentation

    • Monolithic product

  • Vibration resistance

    • 5gn (f = 2...500 Hz)

      conforming to IEC 60068-2-6

  • Electromagnetic compatibility

    • Disturbing field emission class B

      conforming to EN 55011

    • REACh free of SVHC

    • Mercury free

    • Toxic heavy metal free

  • Compliance

    Directive 2006/95/EC Low Voltage
    Directive 2004/108/EC Electromagnetic Compatibility
    Directive 2011/65/EC RhOS
    Directive 2006/42/EC Machinery

    Conformity to standards

    EN 60947.5.1 / EN 60073 / EN 60529 / EN 60068-2-6 / EN 60204.1 / EN ISO 7731 / EN 981 / IEC 536

    Warranty

    Warranty period is eighteen (18) months and starts from the goods delivery date.

    Customs Code

    8531 807000

    • 1 WRGis not compatible withLT
    • 2 LTis not compatible withWRG
