Technical Features

• Series

  CX



• Base code

  CX22/30


• Colors

  MONOCOLOR

  Colored lens/Colored LED

  •
    Red lens, Red LED
  •
    Green lens, Green LED
  •
    Yellow lens, Yellow LED
  •
    Amber lens, Amber LED
  •
    Blue lens, Blue LED
  •
    White lens, White LED

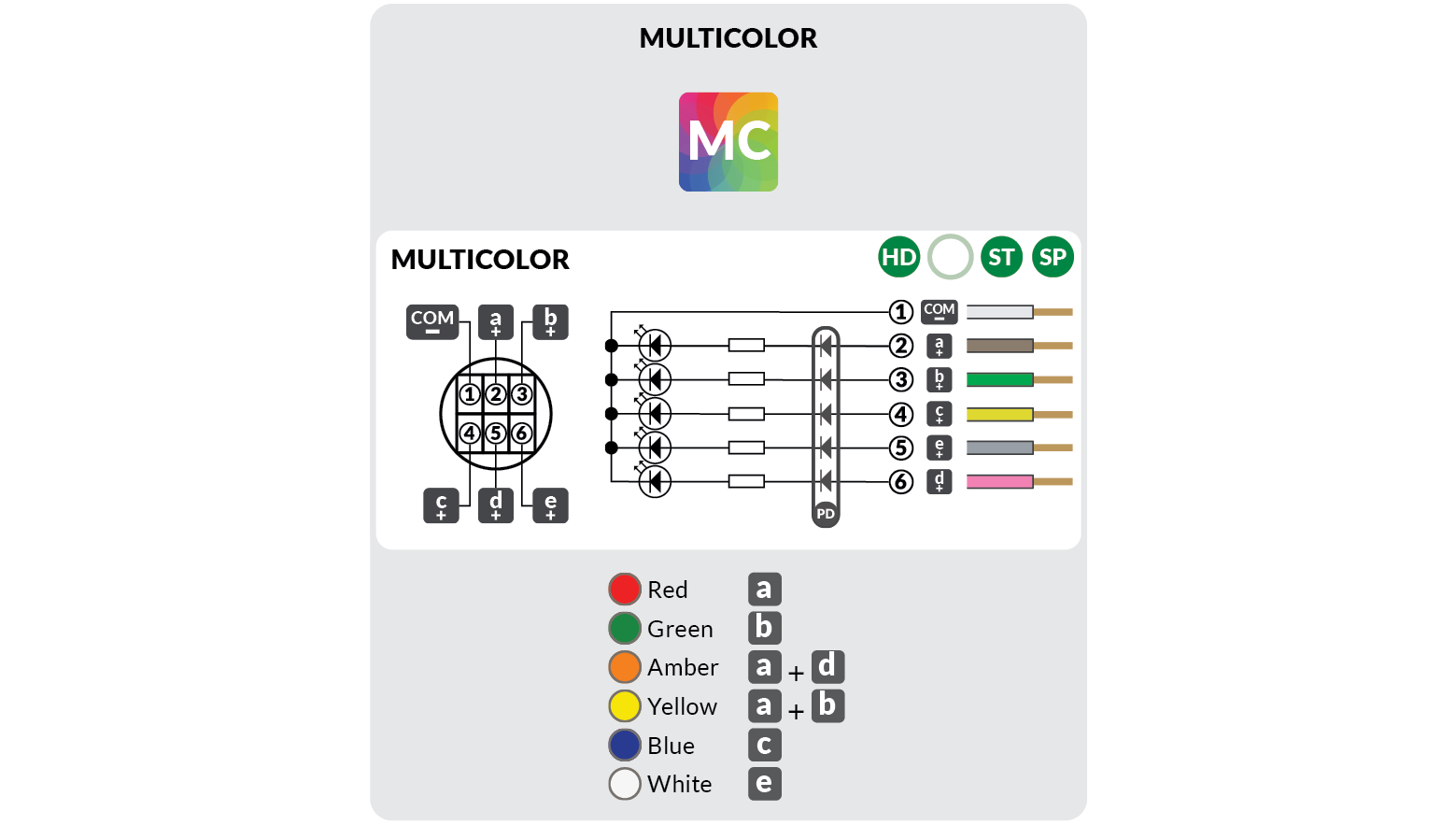

  MULTICOLOR

  White lens, RGB LED

  •
    White lens, RGB LED ¹

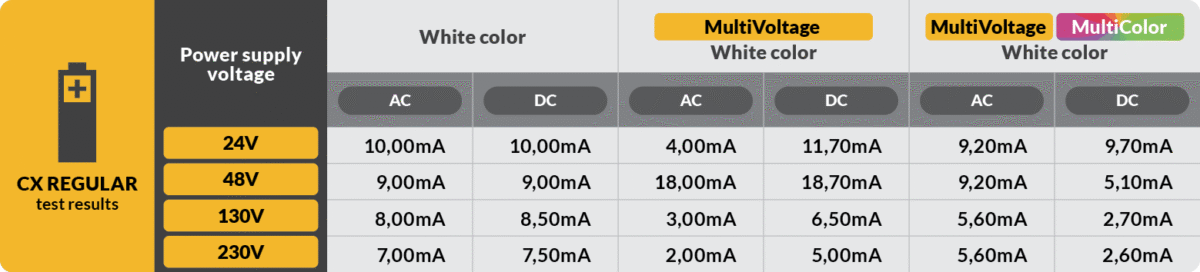

• Power supply voltage

  •
    24V AC/DC ²

    13÷30V

  •
    48V AC/DC ³

    15÷60V

  •
    130V AC/DC ⁴

    70÷150V

  •
    230V AC/DC ⁵

    160÷250V

  •
    UV MultiVoltage ⁶

    24÷240Vac / 24÷300Vdc

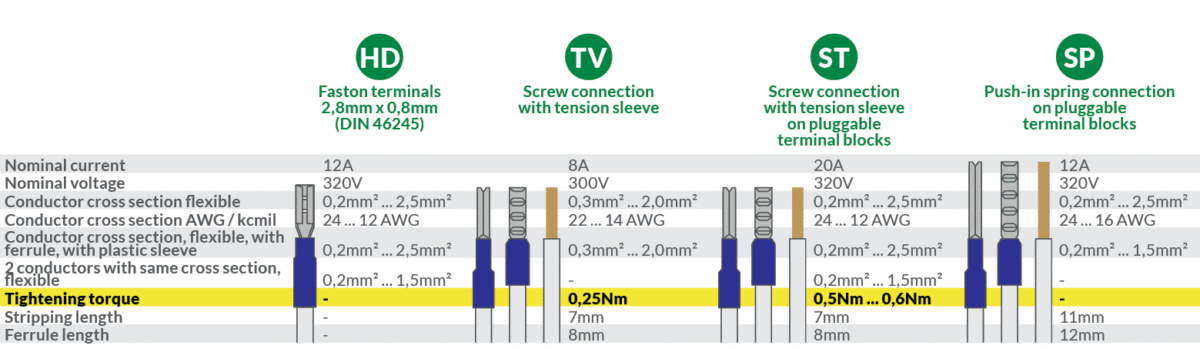

• Connection type

  •
    Faston terminals
  •
    Screw connection with tension sleeve ⁷
  •
    Screw connection with tension sleeve on pluggable terminal blocks
  •
    Push-in spring connection on pluggable terminal blocks

• Extra features

  •
    Built-in lamp test facility ⁸
  •
    Built-in double lamp test facility ⁹
  •
    Tropicalization
  •
    Smooth lens
  •
    IP67
  •
    Interchangeable LED ¹⁰

• Specific features

  •

    Fresnel lens

    The whole head of the device is a Fresnel lens.

  •

    LED cluster light

    The presence of 2 LEDs inside spreads an intense and bright colored light evenly diffused.

  •

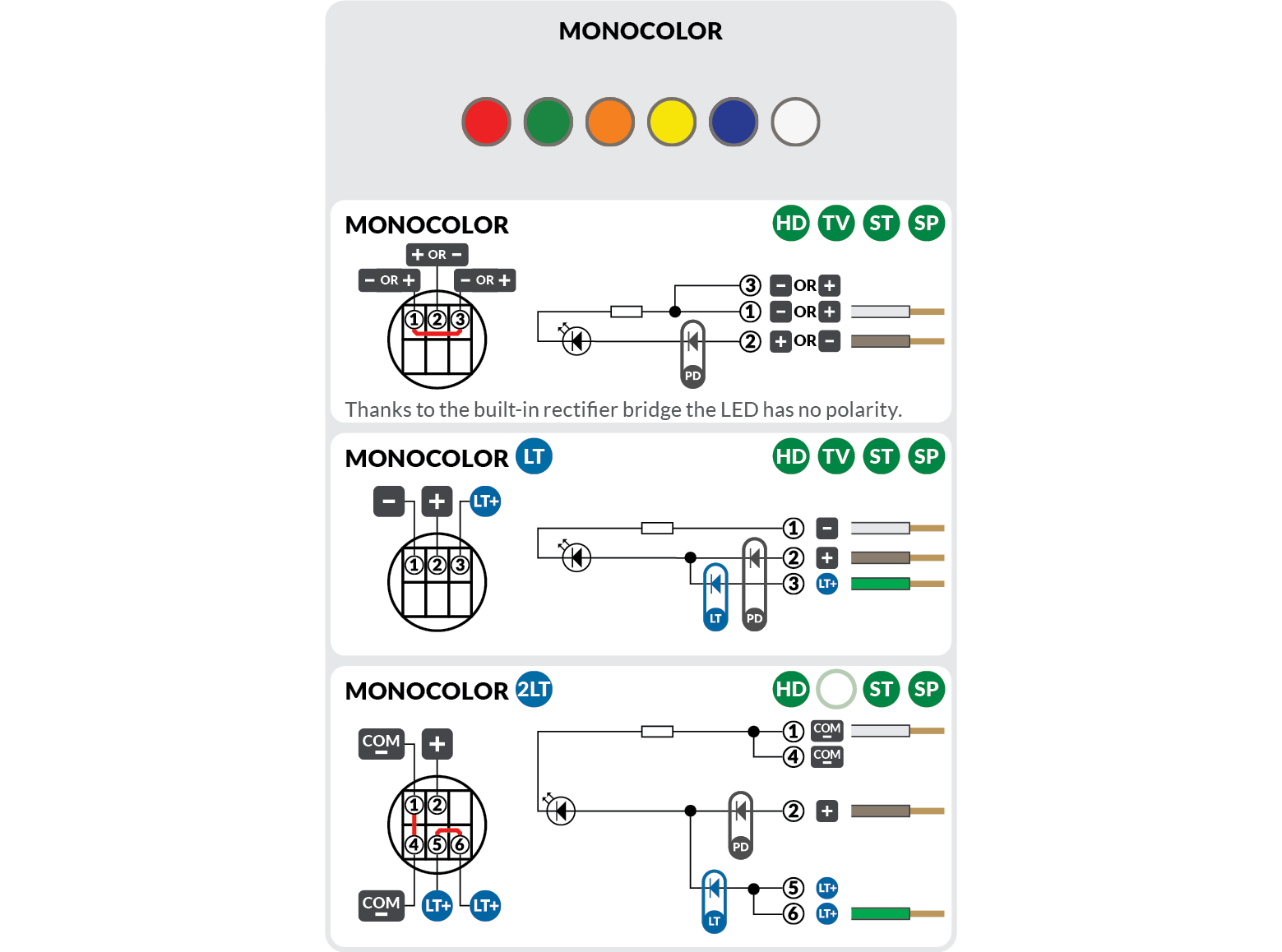

    Built-in rectifier bridge

    To operate both in alternating (Vac) and direct current (Vdc).

  •

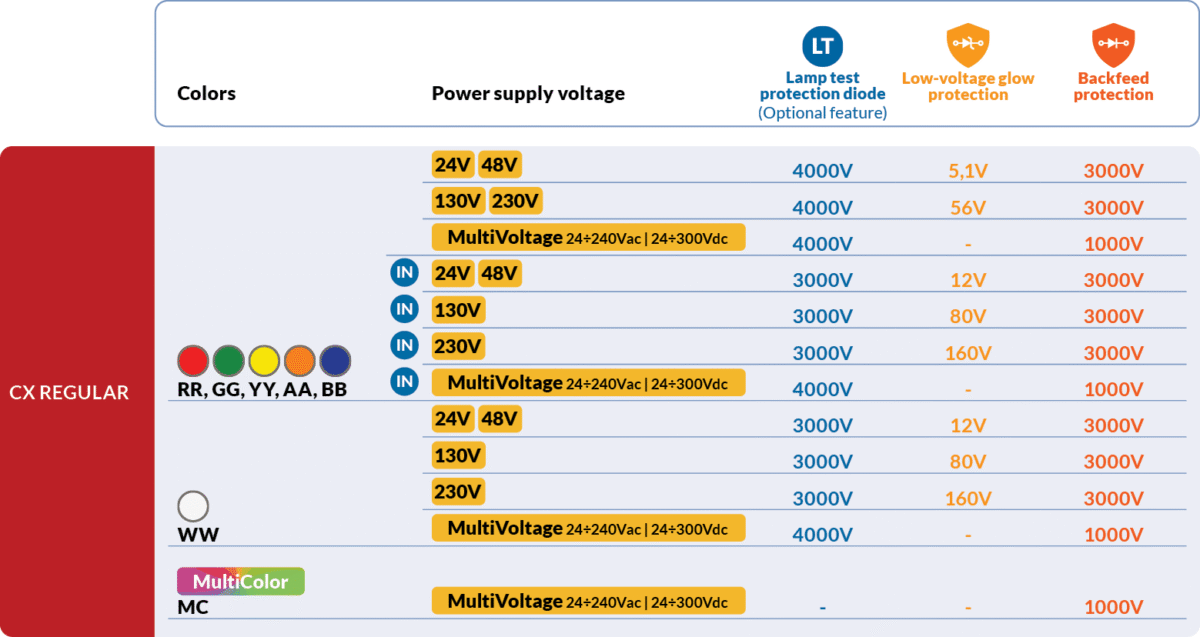

    Backfeed protection

    Built-in protection diodes protect the circuit from reverse voltage and current.

  •

    Low-voltage glow protection

    A Zener diode properly calibrates the minimum voltage required to switch on the LED Indicator.

  •

    Pure green

    Green LEDs produce a pure green light, enhancing performance and visibility.

• Degree of protection

  •
    IP65
  •
    IP67

• Service life

  •
    >100.000h at 25°C

• Ambient air temperature

  •

    -40°C
    +70 °C

    For storage
    -40 ... +70°C

  •

    -20 °C
    +70 °C

    For operation
    -20 ... +70°C

• Materials

  •
    Polycarbonate (PC)

• PCB

  •
    2 layers PCB

• Bulb base

  • Integral LED

  • Interchangeable LED

    (on request)

• Device presentation

  • Monolithic product

• Vibration resistance

  • 5gn (f = 2...500 Hz)

    conforming to IEC 60068-2-6

• Electromagnetic compatibility

  • Disturbing field emission class B

    conforming to EN 55011

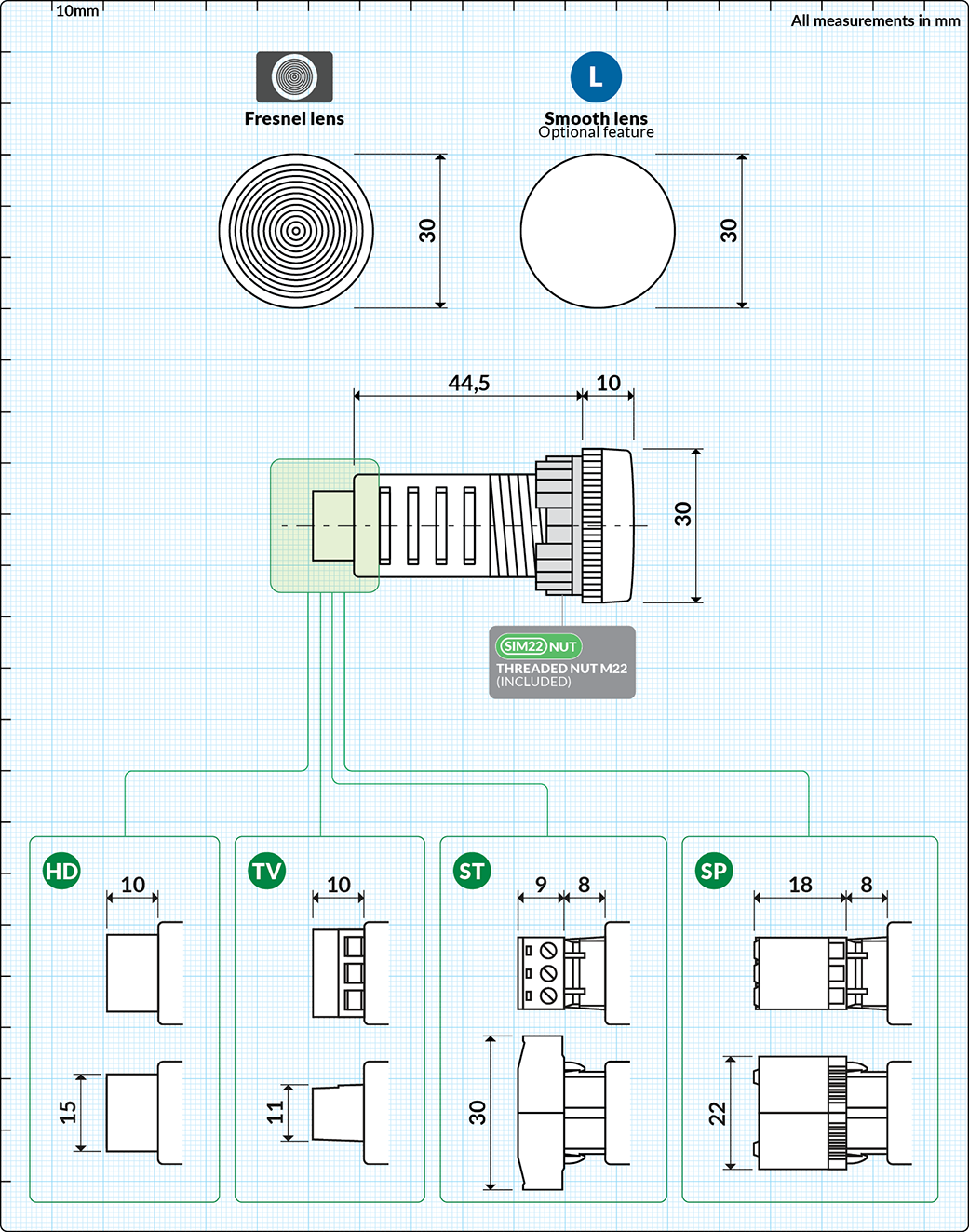

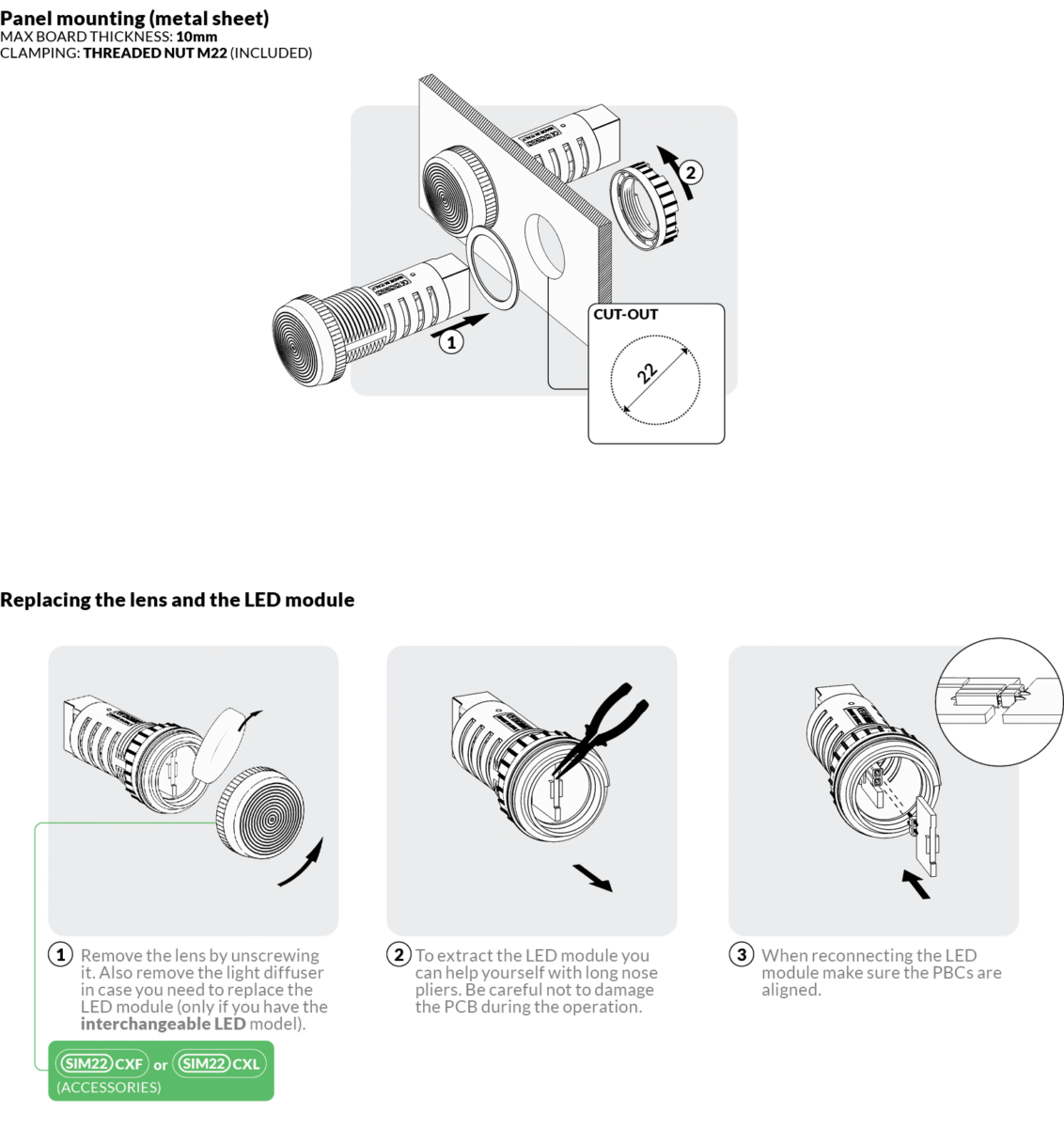

• Dimensions



• • REACh free of SVHC

  • Mercury free

  • Toxic heavy metal free

• Compliance

  Directive 2006/95/EC Low Voltage
  Directive 2004/108/EC Electromagnetic compatibility
  Directive 2011/65/EC RhOS
  Directive 2006/42/EC Machinery
  Directive 2015/863/UE

  Conformity to standards

  EN/IEC 60947.5.1

  Warranty

  Warranty period is eighteen (18) months and starts from the goods delivery date.

  Customs Code

  8531 807000
