Technical Features

• Series

  CD16



• Base code

  CD16 K24


• Head

  •

    PROTRUDING /

    Head size: 24x24mm
    Cut-out: Ø16mm

  •

    FLUSH MOUNTING /

    Head size: 26x26mm
    Cut-out: 24x24mm

• Positions

  •

    Stay Put

    3 Positions (1-0-2), Stay Put

  •

    Stay Put

    2 Positions (1-2), Stay Put ¹

  •

    Spring Return

    3 Positions (1-0-2), Spring Return (to 0) ²

  •

    Spring Return

    2 Positions (1-2), Spring Return (2 to 1) ³

  •

    Stay Put

    2 Positions (0-2), Stay Put

• Key removal

  •
    Position 1 (Left) ⁴
  •
    Position 0 (Middle) ⁵
  •
    Position 2 (Right) ⁶
  •
    All Positions ⁷

• Contact block system

  •
    1NO+1NC
  •
    2NO+2NC

• Specific features

  •

    Compatible with Control and Annunciator Panels

    This device is designed to fit into the CTR24 matrix panel.

  •

    Anti-rotation system

    Once mounted, the device keeps its position.

• Ambient air temperature

  •

    -40°C
    +70 °C

    For storage
    -40 ... +70°C

  •

    -20 °C
    +70 °C

    For operation
    -20 ... +70°C

• Humidity

  •

    35 ... 85%RH

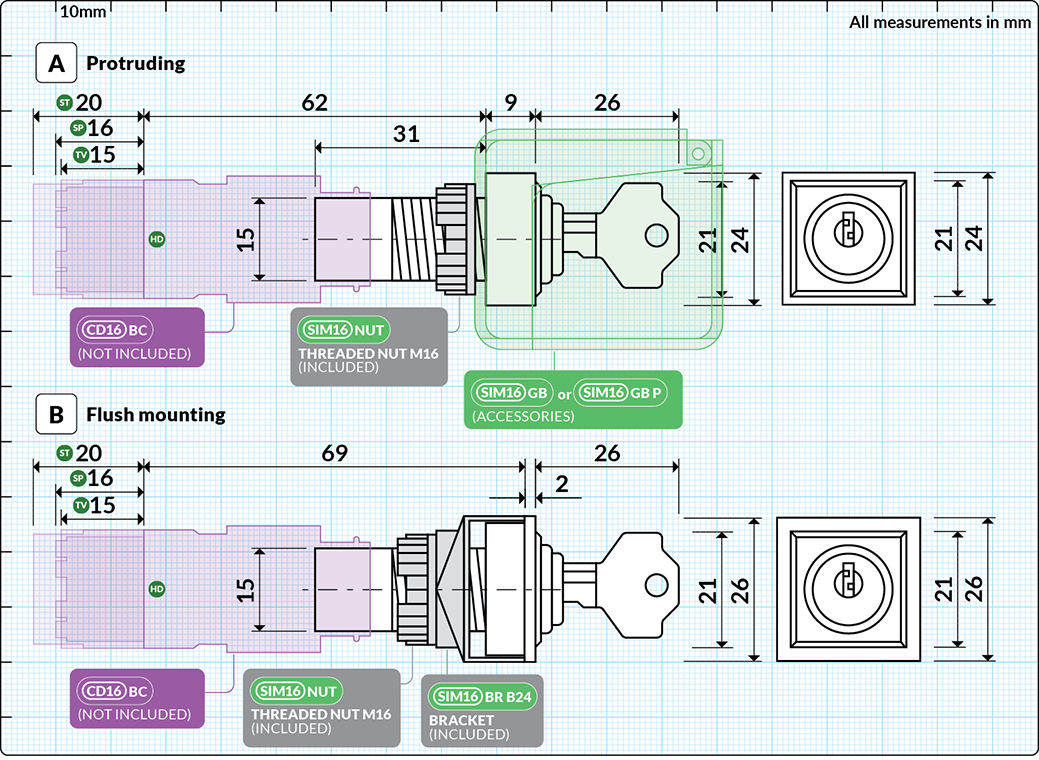

• Dimensions



• • REACh free of SVHC

  • Mercury free

  • Toxic heavy metal free

• Compliance

  Directive 2006/95/EC Low Voltage
  Directive 2004/108/EC Electromagnetic compatibility
  Directive 2011/65/EC RhOS
  Directive 2006/42/EC Machinery
  Directive 2015/863/UE

  Conformity to standards

  EN 60947.5.1 / EN 60073 / EN 60529 / EN 60068-2-6 / EN 60204.1 / EN ISO 7731 / EN 981 / IEC 536

  Warranty

  Warranty period is eighteen (18) months and starts from the goods delivery date.

  Customs Code

  8536 5011
