Technical Features

• Series

  CD16



• Base code

  CD16 BC


• Contact block system

  •
    1NO+1NC
  •
    2NO+2NC
  •
    3NO+3NC
  •
    1NO+1NC+LED
  •
    2NO+2NC+LED

• Colors

  MONOCOLOR

  White lens/Colored LED

  •
    White lens, Red LED
  •
    White lens, Green LED
  •
    White lens, Yellow LED
  •
    White lens, Amber LED
  •
    White lens, Blue LED
  •
    White lens, White LED

  BICOLOR

  White lens/Colored LEDs

  •
    White lens, Red/Green LEDs ¹

• Power supply voltage

  •
    24V AC/DC
  •
    28V AC/DC ²
  •
    130V AC/DC ³
  •
    230V AC/DC ⁴

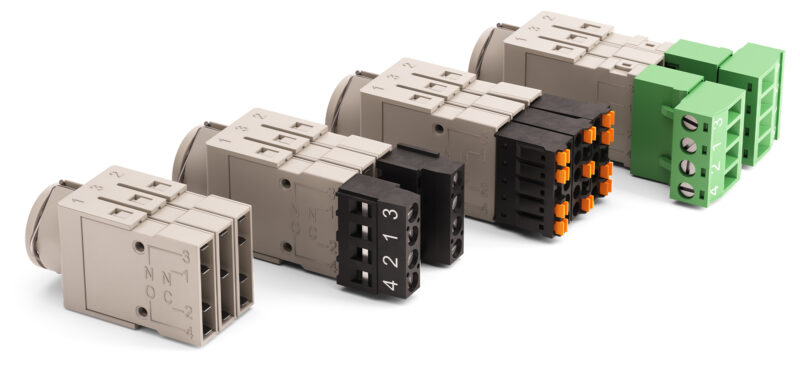

• Connection type

  •
    Faston terminals
  •
    Screw connection with tension sleeve
  • Screw connection with tension sleeve on pluggable terminal blocks
  •
    Push-in spring connection on pluggable terminal blocks

• Extra features

  •
    Built-in lamp test facility
  •
    Blinking light ⁵
  •
    Low voltage glow protection
  •
    DPDT (Double Pole Double Throw)

• Specific features

  •

    Smart PCB

    To operate both in alternating (Vac) and direct current (Vdc).

  •

    Backfeed protection

    Built-in protection diodes protect the circuit from reverse voltage and current.

• [Ie] rated operational current

  • [Ie] rated operational current

  • 0.22 A at 125 V, DC-13, R300

  • 0.1 A at 250 V, DC-13, R300

  • 1.5 A at 240 V, AC-15, B300

  • 3 A at 120 V, AC-15, B300

• Degree of protection

  •
    IP20

• Service life

  •
    >100.000h at 25°C

• Materials

  •
    Polycarbonate (PC)
  •
    Silver alloy (Ag-Ni)

• PCB

  •
    2 layers PCB

• Bulb base

  • Integral LED

• Device presentation

  • Monolithic product

• Vibration resistance

  • 5gn (f = 2...500 Hz)

    conforming to IEC 60068-2-6

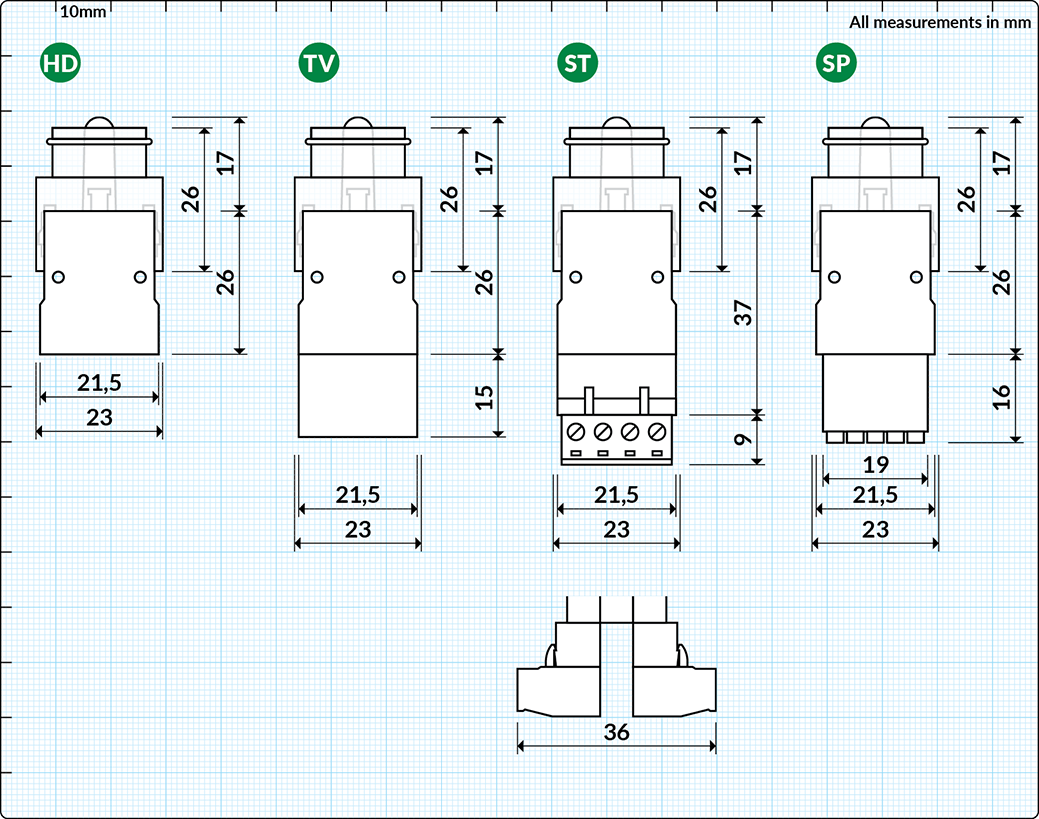

• Dimensions



• • REACh free of SVHC

  • Mercury free

  • Toxic heavy metal free

• Compliance

  Directive 2006/95/EC Low Voltage
  Directive 2004/108/EC Electromagnetic compatibility
  Directive 2011/65/EC RhOS
  Directive 2006/42/EC Machinery
  Directive 2015/863/UE

  Conformity to standards

  EN 60947.5.1 / EN 60073 / EN 60529 / EN 60068-2-6 / EN 60204.1 / EN ISO 7731 / EN 981 / IEC 536

  Warranty

  Warranty period is eighteen (18) months and starts from the goods delivery date.

  Customs Code

  8536 5011
