CD16 BC
CD16 BC BASE CODE
Need a quotation? Configure your product then ask us!
Multiple NO+ NC connections on the same pushbutton switch.
Manage up to 3NO+3NC connections.
1NO+1NC
2NO+2NC
3NO+3NC
1NO+1NC+LED
2NO+2NC+LED
Illuminate your pushbutton switch with a wide choice of bright and colored lights.
IP20
An object probe, sphere of 12.5 mm in diameter, shall not fully penetrate. No protection against liquids. EN 60529
Choose the power value
that's right for you.*
*And if it's not in the catalogue, try to ask for it.
-
24 VAC/DC
-
28 VAC/DC
-
130 VAC/DC
-
230 VAC/DC
-
Or customizable upon request.
is not compatible with
is not compatible with
is not compatible with
-
Smart PCB
Thanks to our innovative technologies, the LED indicator can be powered with both AC or DC power supply without any risk.
-
Backfeed protection
A built-in protection diode absorbs any incidental excess current to avoid reverse feeding, minimizing the risk of LEDs unexpected lighting and hazards to the electrical grid equipment.
Need more informations? Discover all the Technical features.
-

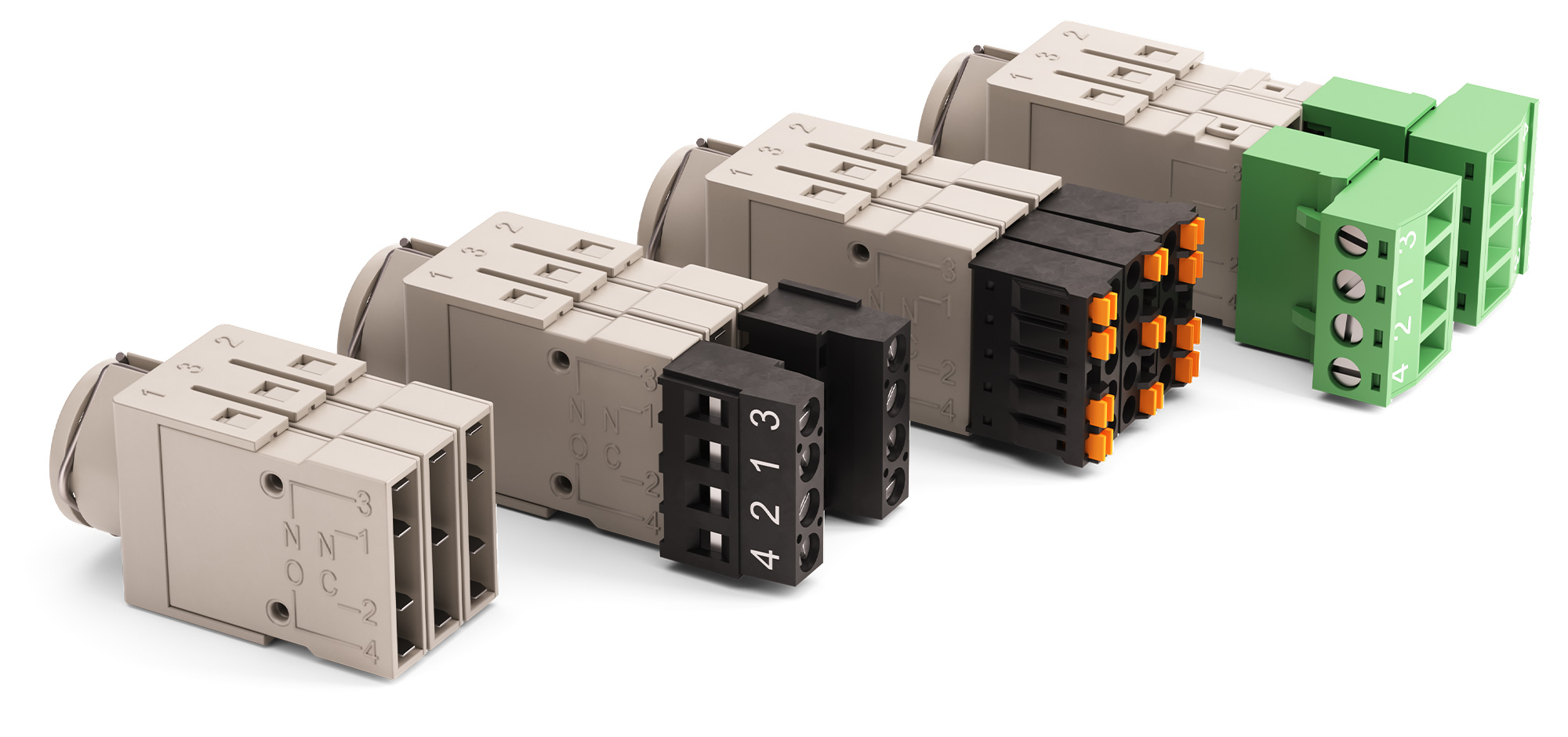

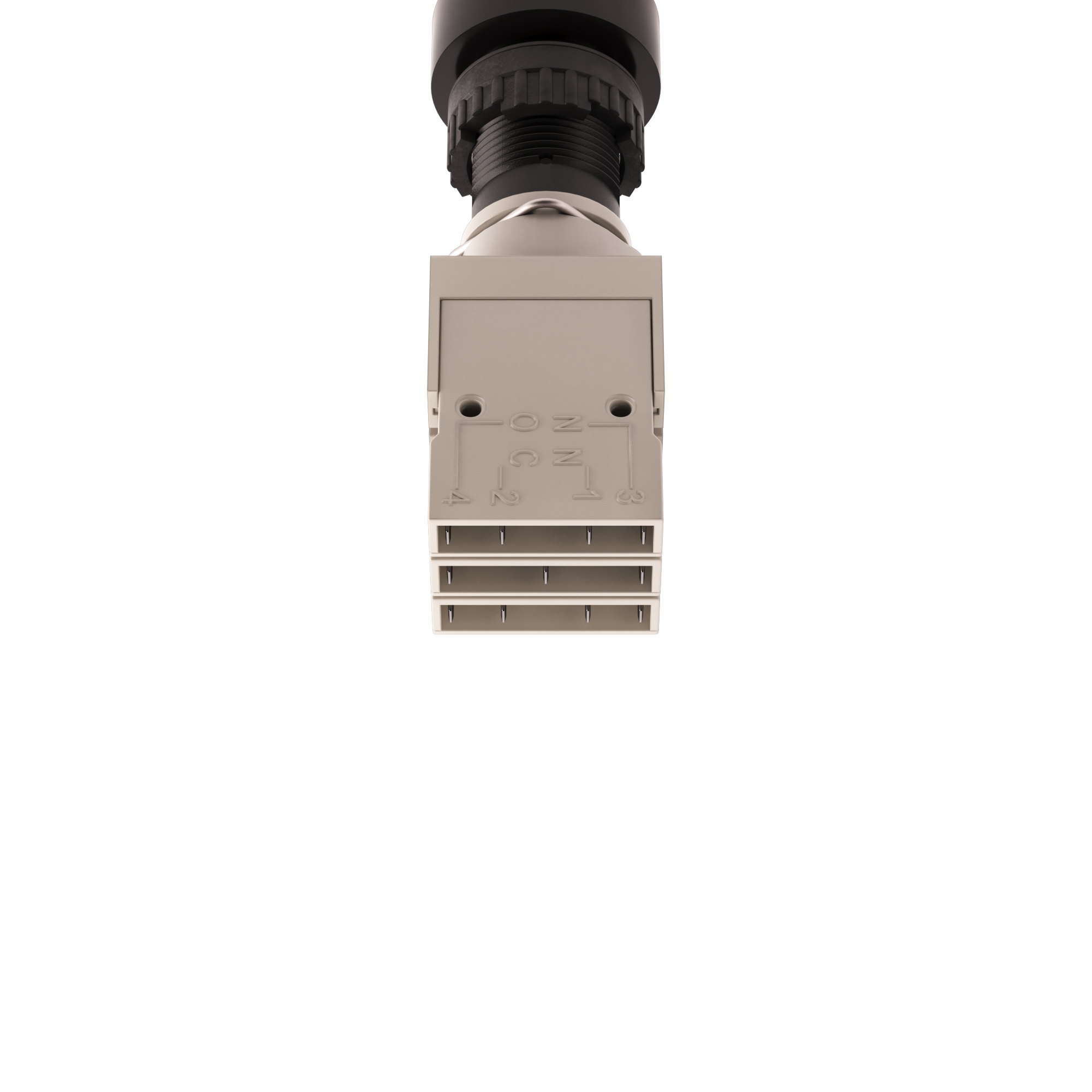

Faston terminals
-

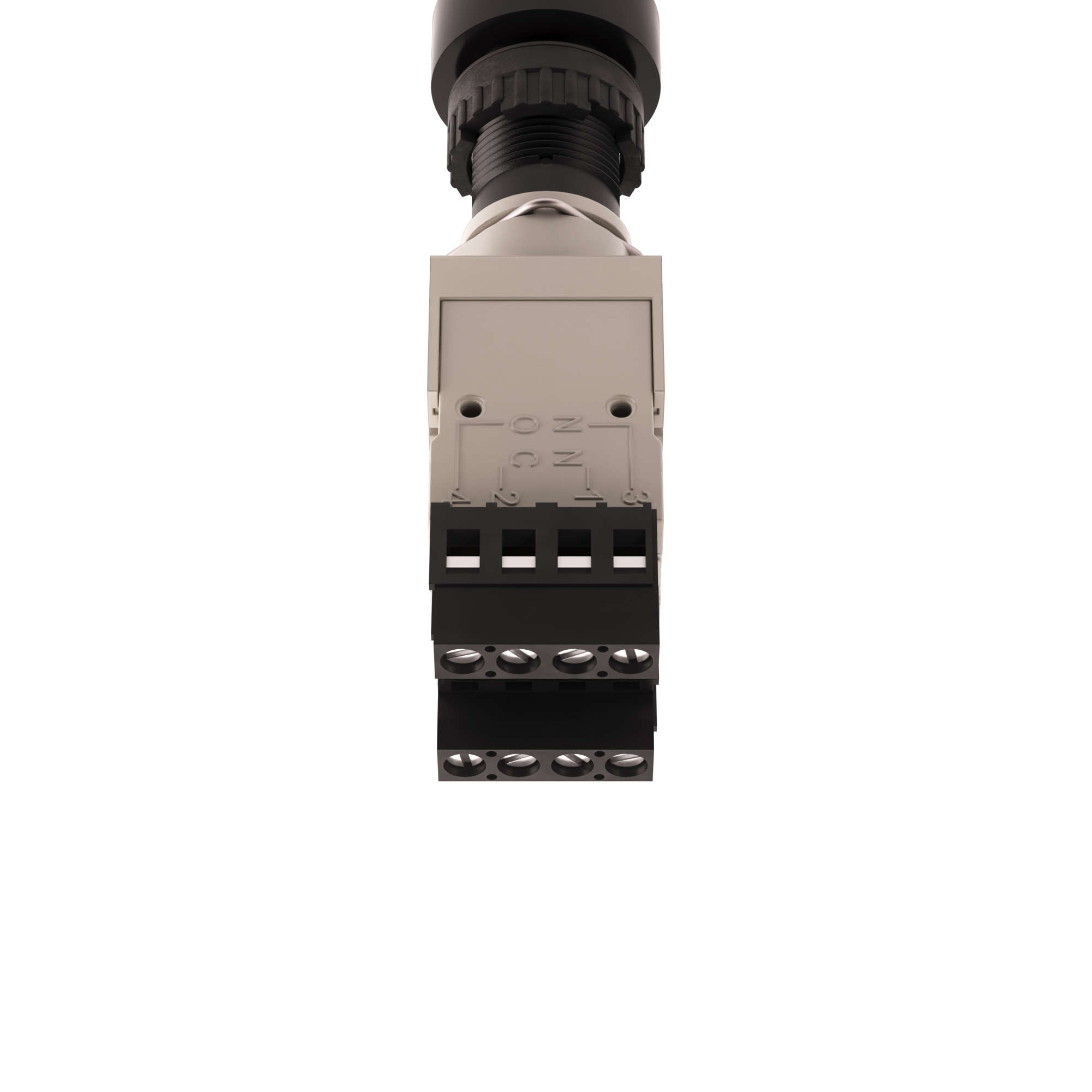

Screw connection with tension sleeve
-

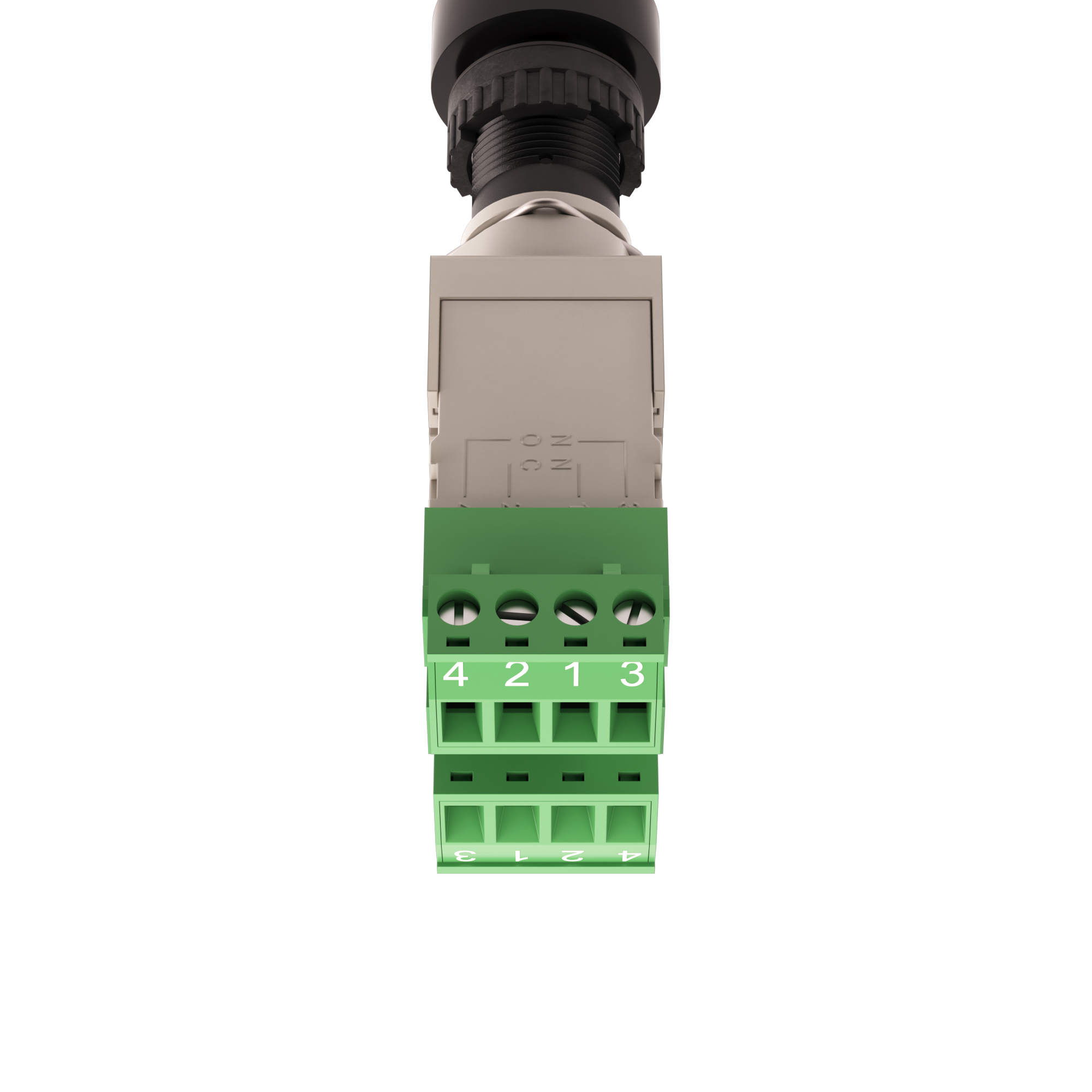

Screw connection with tension sleeve on pluggable terminal blocks
-

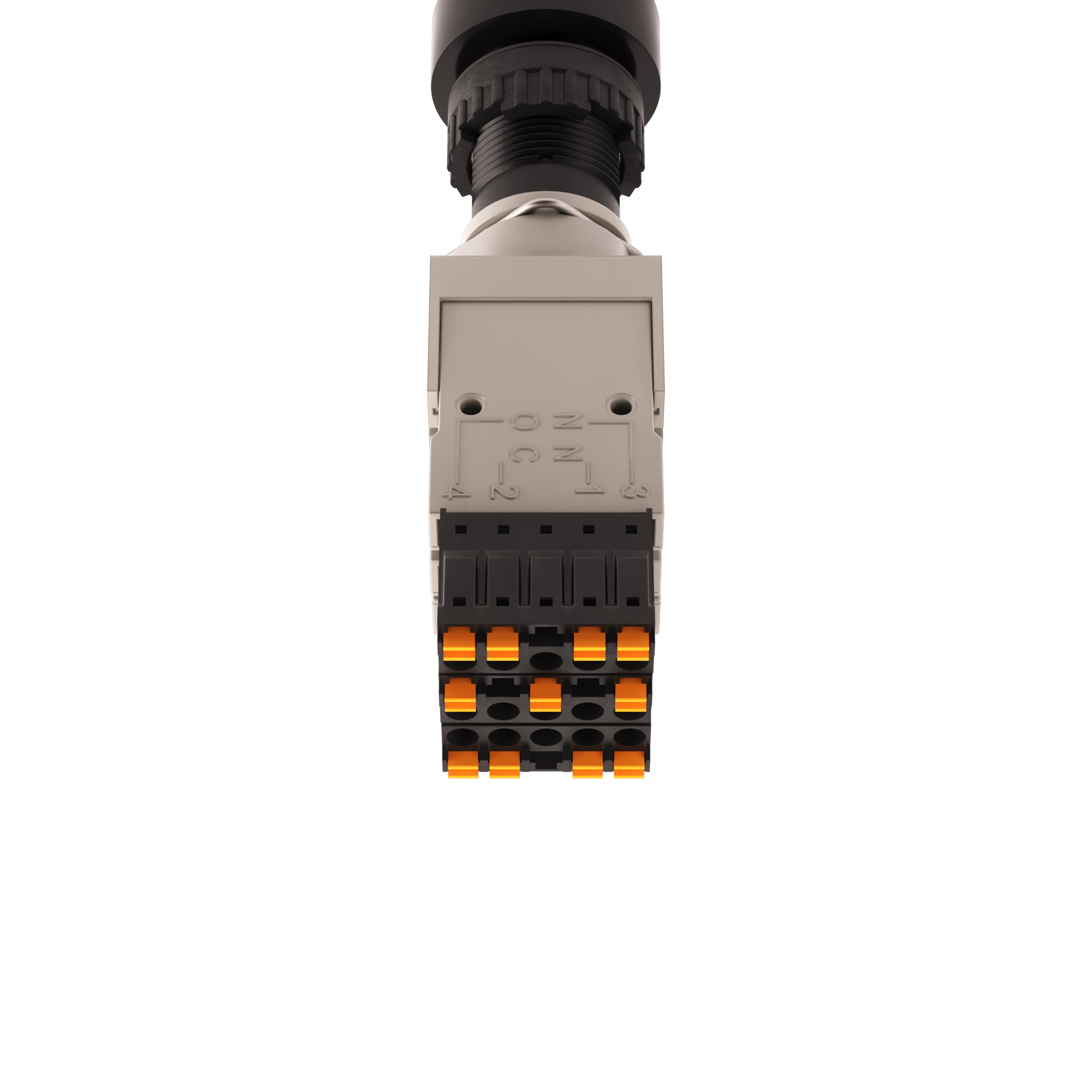

Push-in spring connection on pluggable terminal blocks
Do you want to know how to connect it? Find the installation manual and other useful informations in the Library
The secret of all this condensed power:
-
2 layers PCB
The state of the art of our technological research allows us to insert into this device an SMD equipped with a 2 layers PCB.
-
Built-in lamp test facility
A built-in circuit provided with specific diodes allows to test the LEDs functionality with no need of external tools for cabling, no extra work, no extra money and no extra space.
-
Blinking light
LED(s) will blink when turned on.
is not compatible with -
Low voltage glow protection
To avoid the risk of unexpected and random switch-ons, the device will be provided with a Zener diode that properly calibrates the minimum voltage required to switch on the LED.
-
DPDT (Double Pole Double Throw)
Accessories and spares
The following products can be used together with CD16 BC:
