BZ Regular
Acoustic signalling
BZ22/30 BASE CODE
Need a quotation? Configure your product then ask us!
Loud and clear with BZ22/30.

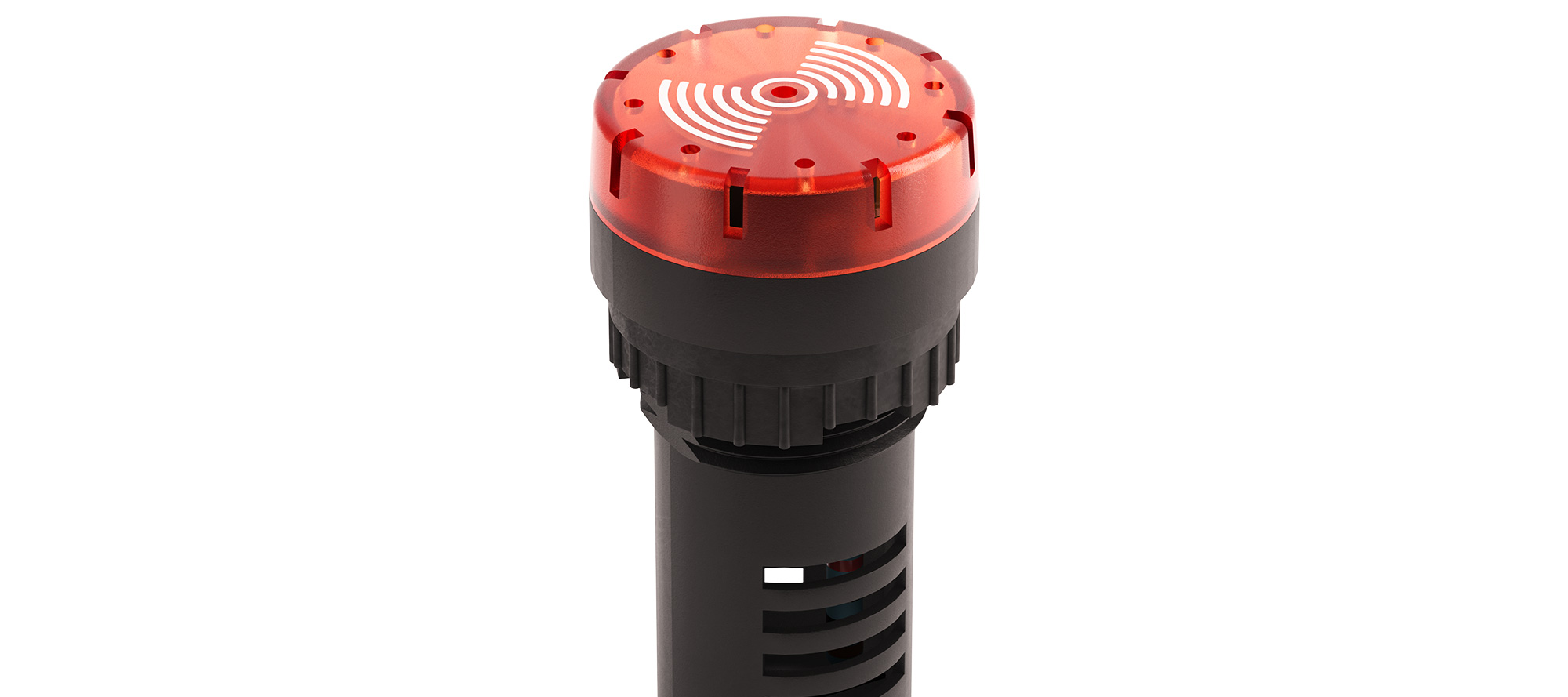

The DOMO BZ22/30 is an acoustic signalling device and is available with transparent red or black colour option.
IP20
An object probe, sphere of 12.5 mm in diameter, shall not fully penetrate. No protection against liquids. EN 60529
Choose the power supply value that's right for you.
-
24 VAC/DC20÷28V
-
48 VAC/DC40÷52V
-
130 VAC/DC110÷135V
-
230 VAC/DC220÷240V
-
80db buzzer sound
80dB intermittent buzzer sound intensity (at 1m distance).
-
Built-in rectifier bridge
Thanks to the built-in rectifier bridge, the device can be powered with both AC or DC power supply without any error.
Need more informations? Discover all the Technical features.
Easy and flexible, the connection for you.
Screw Connection with Tension Sleeve — a fusion of engineering excellence and seamless performance. Designed for those who demand reliability, strength, and efficiency in every detail.
-

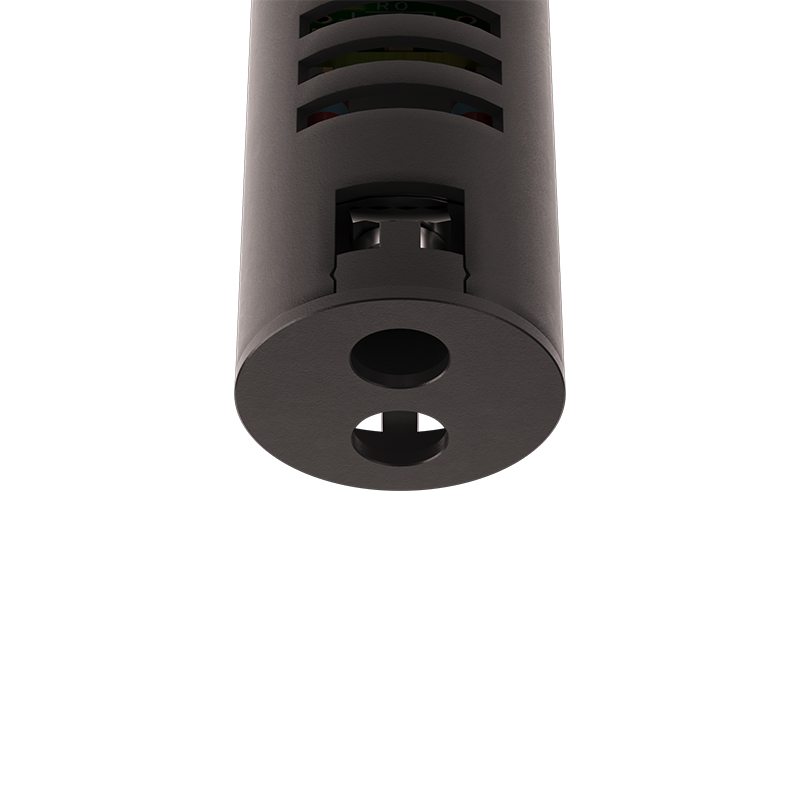

Screw connection with tension sleeve
Do you want to know how to connect it? Find the installation manual and other useful informations in the Library
-
Flying leads
Don’t waste your time with cabling: we can cable wires as long and thick as you need and mount them on the connection terminal you choose.
