Technical Features

  • Series

    Ai1
    Ai1 VP

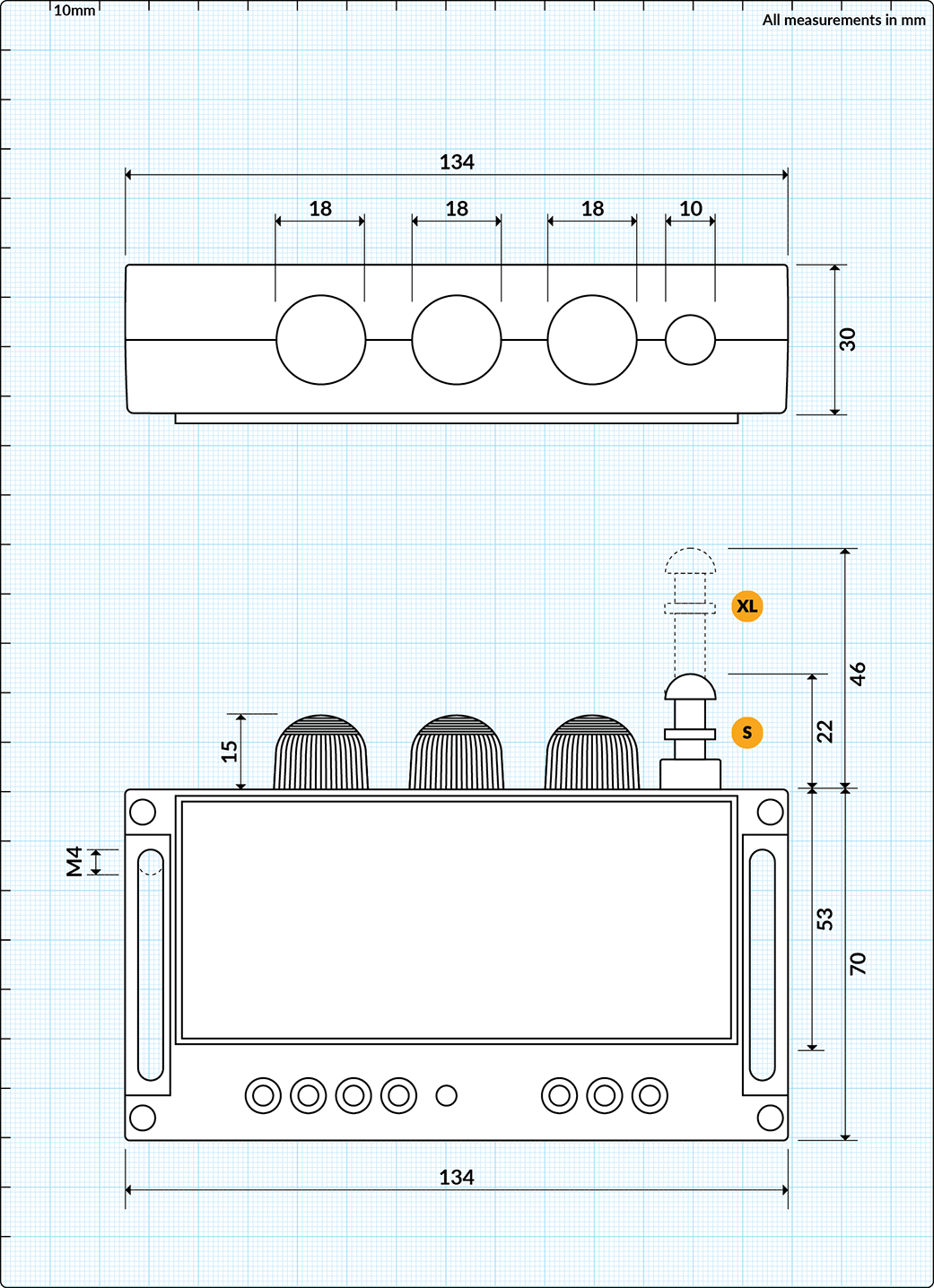

  • Limit Switch

    • Standard lenght (22mm)
      Standard lenght (22mm)
    • Extra long (46mm)
      Extra long (46mm)
  • Power supply voltage

    • 3 Phase Voltage 220÷500V AC 50-60Hz
      3 Phase Voltage 220÷500V AC 50-60Hz
    • 1 Phase Voltage 110÷300V AC 50-60Hz
      1 Phase Voltage 110÷300V AC 50-60Hz
  • Extra features

    • A
      Buzzer sound 80dB
  • Specific features

    • 3-Phase Voltage Presence Indicator
      3-Phase Voltage Presence Indicator

      One blinking LED for each phase. When a LED is OFF, the corresponding phase is interrupted.

      • SEQUENTIAL BLINKING
        3 Phase circuit 220÷500V AC 50-60Hz correctly phased
      • RANDOM BLINKING
        3 Phase circuit 220÷500V AC 50-60Hz NOT correctly phased

    • 1-Phase Voltage Presence Indicator
      1-Phase Voltage Presence Indicator

      • SIMULTANEOUS BLINKING
        1 Phase circuit 110÷300V AC 50-60Hz

    • Auxiliary contact SPDT
      Auxiliary contact SPDT

      (Single Pole Double Throw NO/NC) Usually used to switch on/off external lighting, heaters, fans, conditioners, releays, etc...

  • Protective treatment

    • Standard version: “TC”

  • Connection terminals

    • Screw M3

  • [Ui] rated insulation voltage

    • 690 Vac (pollution degree 3)

      conforming to EN/IEC 60947-1

  • Degree of protection

    • <b>IP20</b>
      IP20
  • Service life

    • <b>>100.000h at 25°C</b>
      >100.000h at 25°C
  • Ambient air temperature

    • Storage Temperature

      -40°C
      +70°C

      For storage
      -40... +70°C

    • Operation Temperature

      -20°C
      +70°C

      For operation
      -20... +70°C

  • Materials

    • <b>Polycarbonate (PC)</b>
      Polycarbonate (PC)
  • PCB

    • <b>3-Phase LEDs: 4 Layers PCB</b>
      3-Phase LEDs: 4 Layers PCB
  • Device presentation

    • Monolithic product

  • Vibration resistance

    • 5gn (f = 2...500 Hz)

      conforming to IEC 60068-2-6

    • REACh free of SVHC

    • Mercury free

    • Toxic heavy metal free

  • Compliance

    Directive 2006/95/EC Low Voltage
    Directive 2004/108/EC Electromagnetic Compatibility
    Directive 2011/65/EC RhOS
    Directive 2006/42/EC Machinery

    Conformity to standards

    EN 60947.5.1 / EN 60073 / EN 60529 / EN 60068-2-6 / EN 60204.1 / EN ISO 7731 / EN 981 / IEC 536

    Warranty

    Warranty period is eighteen (18) months and starts from the goods delivery date.

    Customs Code

    8536 5080
