Technical Features

• Series

  Ai1



• Base code

  Ai1 VP LED


• Limit Switch

  •
    Standard lenght (22mm)
  •
    Extra long (46mm)

• Power supply voltage

  •
    3 Phase Voltage 220÷500V AC 50-60Hz
  •
    1 Phase Voltage 110÷300V AC 50-60Hz

• Extra features

  •
    Buzzer sound 80dB

• Specific features

  •

    3-Phase voltage presence indicator

    One blinking LED for each phase. When a LED is OFF, the corresponding phase is interrupted.

    • SEQUENTIAL BLINKING

      3 Phase circuit 220÷500V AC 50-60Hz correctly phased

    • RANDOM BLINKING

      3 Phase circuit 220÷500V AC 50-60Hz NOT correctly phased

  •

    1-Phase voltage presence indicator

    • SIMULTANEOUS BLINKING

      1 Phase circuit 110÷300V AC 50-60Hz

  •

    High intensity light

    LED cluster light that illuminates the inside of the electrical panel.

    LIGHT INTENSITY

    • 600lm approx.

    NUMBER OF LEDS

    • 48

    LIGHT COLOR

    • Cold white - 5500K approx.

  •

    Auxiliary contact SPDT

    (Single Pole Double Throw NO/NC) Usually used to switch on/off external lighting, heaters, fans, conditioners, releays, etc...

• Protective treatment

  • Standard version: “TC”

• Connection terminals

  • Screw M3

• [Ui] rated insulation voltage

  • 690 Vac (pollution degree 3)

    conforming to EN/IEC 60947-1

• Degree of protection

  •
    IP20

• Service life

  •
    >100.000h at 25°C

• Ambient air temperature

  •

    -40°C
    +70 °C

    For storage
    -40 ... +70°C

  •

    -20 °C
    +70 °C

    For operation
    -20 ... +70°C

• Materials

  •
    Polycarbonate (PC)

• PCB

  •
    3-Phase LEDs: 4 Layers PCB
  •
    Light: 2 Layers PCB

• Bulb base

  • Integral LED

• Device presentation

  • Monolithic product

• Vibration resistance

  • 5gn (f = 2...500 Hz)

    conforming to IEC 60068-2-6

• Electromagnetic compatibility

  • Disturbing field emission class B

    conforming to EN 55011

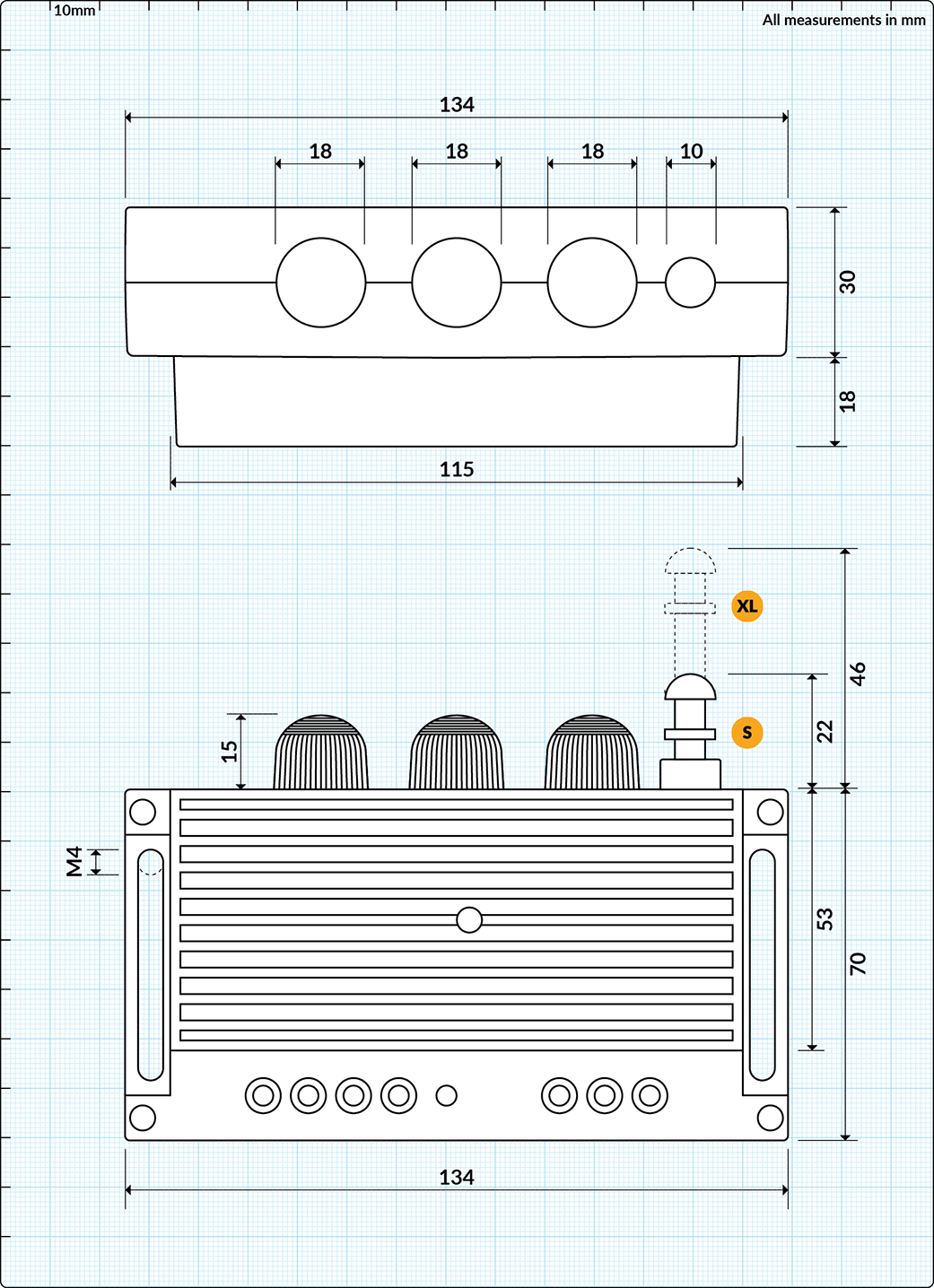

• Dimensions



• • REACh free of SVHC

  • Mercury free

  • Toxic heavy metal free

• Compliance

  Directive 2006/95/EC Low Voltage
  Directive 2004/108/EC Electromagnetic compatibility
  Directive 2011/65/EC RhOS
  Directive 2006/42/EC Machinery
  Directive 2015/863/UE

  Conformity to standards

  EN 60947.5.1 / EN 60073 / EN 60529 / EN 60068-2-6 / EN 60204.1 / EN ISO 7731 / EN 981 / IEC 536

  Warranty

  Warranty period is eighteen (18) months and starts from the goods delivery date.

  Customs Code

  8536 5080
